Front Shock - Z16vbe87fr/Nr/Jr (49Rgrshockfrt7044206) replacement parts for 2016 Polaris RZR 900 60 Inch PS, EU

OEM Parts Polaris 2016 Polaris RZR 900 60 Inch PS, EU Front Shock - Z16vbe87fr/Nr/Jr (49Rgrshockfrt7044206)

Front Shock - Z16VBE87FR/NR/JR (49RGRSHOCKFRT7044206) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

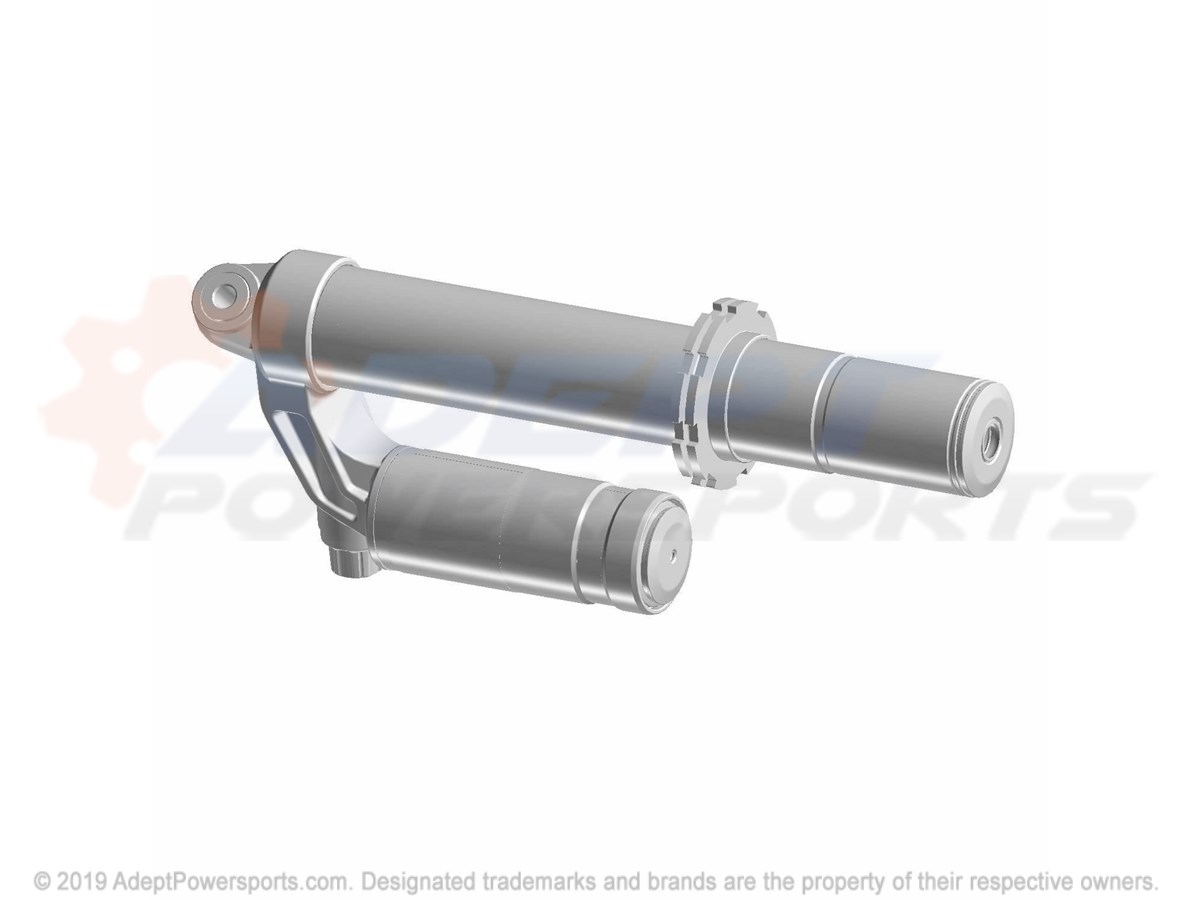

1	SHOCK-FRONT, 2, RESVR, PIGGYBK Part #: 7044207 Required per assembly: 1 Note: INCL. ALL Currently Not Available
1	SHOCK-FRONT, 2, RESVR, PIGGYBK Part #: 7044206 Required per assembly: 1 Note: INCL. ALL Currently Not Available
2	BUSHING, EYELET, 014-20-002 Part #: 1501010 Required per assembly: 2 Currently Not Available
3	NUT, LOCK Part #: 1500472 Required per assembly: 1 Currently Not Available
4	SCREW #4 SS PAN 018-01-036 Part #: 1501011 Required per assembly: 1 Currently Not Available
5	DECAL, PERF, SERIES, 024-00-283 Part #: 1501012 Required per assembly: 1 Currently Not Available
6	DECAL, RES, 024-00-292 Part #: 1501013 Required per assembly: 1 Currently Not Available
7	O-RING Part #: 1500623 Required per assembly: 1 Currently Not Available
8	O-RING Part #: 1500510 Required per assembly: 1 Currently Not Available
9	SEAL, WEATHER, 036-02-076 Part #: 1501014 Required per assembly: 4 Currently Not Available
10	RING, RETAINING Part #: 1500236 Required per assembly: 1 Currently Not Available
11	RING, RET., WIRE, 038-01-022 Part #: 1501015 Required per assembly: 1 Currently Not Available
12	BODY, CAP, 45PB, 206-27-302 Part #: 1501030 Required per assembly: 1 Note: USE WITH 7044207 Currently Not Available
12	BODY, CAP, 135PB, 206-27-306 Part #: 1501029 Required per assembly: 1 Note: USE WITH 7044206 Currently Not Available
13	BODY, 1.834X13.1TLG, 207-14-080 Part #: 1501031 Required per assembly: 1 Currently Not Available
14	KNOB, LOW, SPEED, 210-35-090-0 Part #: 1501019 Required per assembly: 1 Currently Not Available

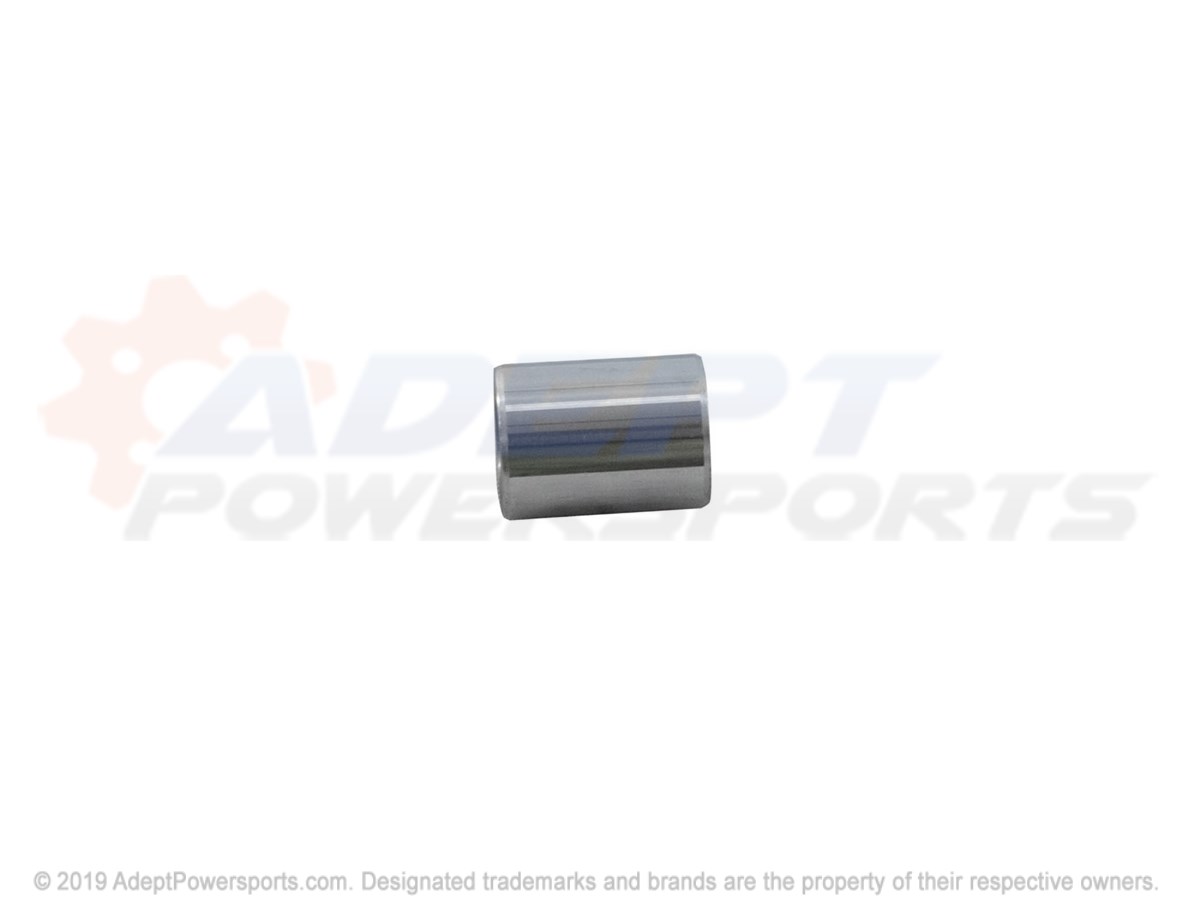

15	SLEEVE, .397IDX1.18L, 214-01-003 Part #: 1501020 Required per assembly: 2 Currently Not Available
16	EYELET, SHAFT, 214-33-014-2 Part #: 1501032 Required per assembly: 1 Currently Not Available
17	SPACER, EYELET, 214-40-015 Part #: 1501022 Required per assembly: 4 Currently Not Available
18	RESERVOIR, 5"THD, 227-41-050-4 Part #: 1501023 Required per assembly: 1 Currently Not Available
19	SHAFT, .62X10.1TLG, 229-60-101 Part #: 1501033 Required per assembly: 1 Currently Not Available
20	RING, PRELOAD, BACK Part #: 1500872 Required per assembly: 1 Currently Not Available
21	RING, PRELOAD Part #: 1500873 Required per assembly: 1 Currently Not Available
22	SCREW, ASM, BLK, (800-10-008) Part #: 1501341 Required per assembly: 1 Currently Not Available
23	ASM., PISTON, FLOAT, 805-00-073 Part #: 1501026 Required per assembly: 1 Currently Not Available
25	ASM. BEARING (812-07-046) Part #: 1500940 Required per assembly: 1 Currently Not Available
26	ASM-BEARING CAP (812-11-020) Part #: 1500835 Required per assembly: 1 Currently Not Available
27	ASM., END, CAP, RES, 813-00-086 Part #: 1501027 Required per assembly: 1 Currently Not Available
28	ASM., DAMP, ADJ, LSC, 815-04-061 Part #: 1501034 Required per assembly: 1 Currently Not Available
29	BUMPER, B/O, SHAFT, 008-02-025 Part #: 1501028 Required per assembly: 1 Currently Not Available
