Primary Clutch - Z16vbe99ak/Aw (49Rgrclutchdrv151000) replacement parts for 2016 Polaris RZR 1000 60 Inch All Options

OEM Parts Polaris 2016 Polaris RZR 1000 60 Inch All Options Primary Clutch - Z16vbe99ak/Aw (49Rgrclutchdrv151000)

Primary Clutch - Z16VBE99AK/AW (49RGRCLUTCHDRV151000) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	ASSEMBLY, DRIVE, CLUTCH, BASIC Part #: 1323068 Required per assembly: 1 Note: INCL. 2-14, 21 Currently Not Available
6	BEARING, COVER, Part #: 3576510 Required per assembly: 1 Note: Sold in multiples of 10 only Currently Not Available
7	BEARING Part #: 3514492 Required per assembly: 1 Currently Not Available
8	BEARING, NEEDLE Part #: 3514609 Required per assembly: 1 Note: Bearing, Needle [Built 10/01/09 and After] Currently Not Available
9	SPACER-CLUTCH, SHORT Part #: 5139905 Required per assembly: 1 Currently Not Available
10	BOLT, SPECIAL Part #: 7512266 Required per assembly: 3 ~~$5.79~~ $2.88 - + Add to cart
11	SCREW Part #: 7518349 Required per assembly: 6 Currently Not Available
12	NUT FLEX LOC Part #: 7541906 Required per assembly: 3 ~~$2.99~~ $1.73 - + Add to cart
13	NUT-JAM, NYTEMP Part #: 7547752 Required per assembly: 1 Currently Not Available
14	WASHER, CLUTCH Part #: 7556335 Required per assembly: 2 Note: Sold in multiples of 10 only Currently Not Available
15	WEIGHT-SHIFT, 29-66, PM Part #: 5633496 Required per assembly: 3 Currently Not Available
16	SPACER-CLUTCH LIMITER Part #: 5438963 Required per assembly: 1 Currently Not Available
17	SPRING-CLUTCH, 58-135 Part #: 7044263 Required per assembly: 1 Currently Not Available
18	WASHER, CLUTCH, RETAINER Part #: 5132441 Required per assembly: 1 Currently Not Available
19	WASHER Part #: 7556003 Required per assembly: 1 Currently Not Available
20	SCR-M14X1.5X215 HX 10.9 Y35 R Part #: 7518412 Required per assembly: 1 Currently Not Available

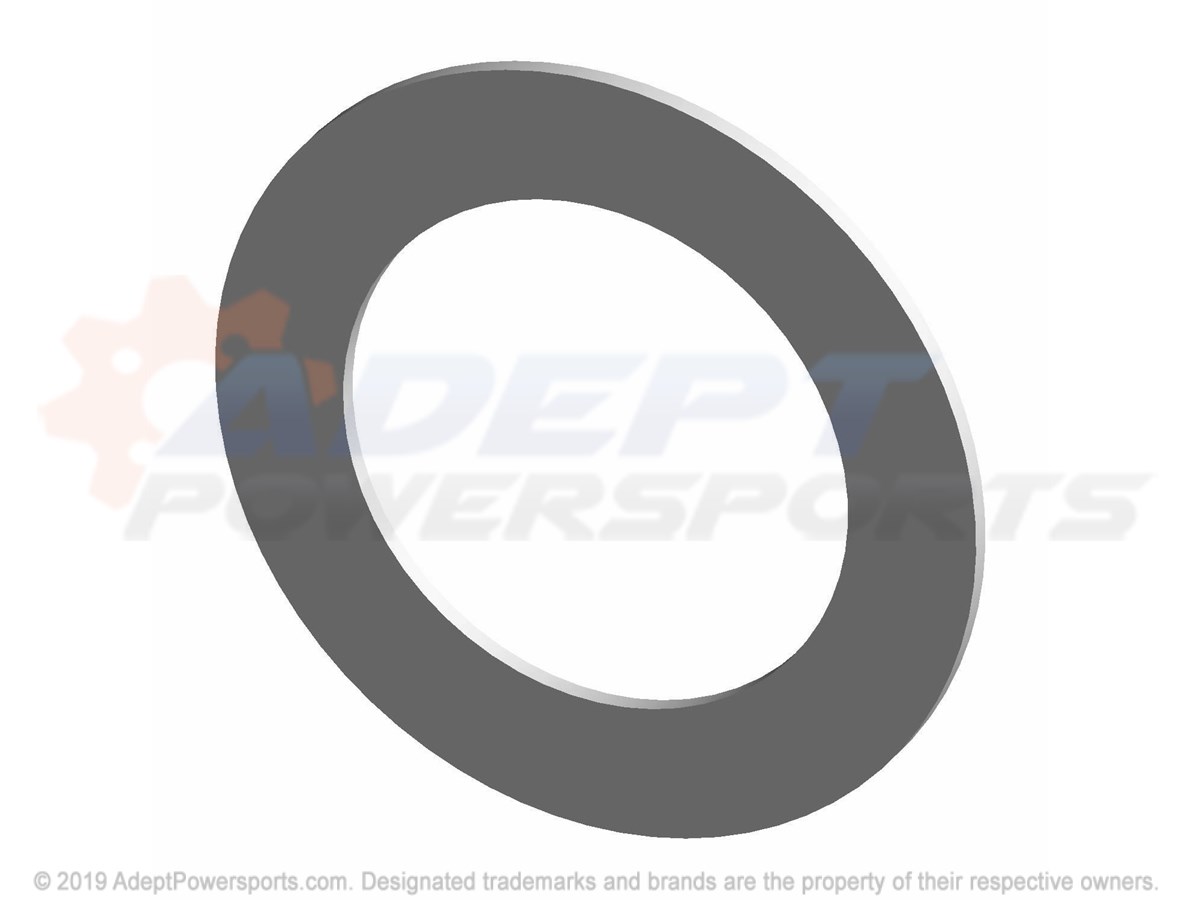

21	WSHR-32.512X49.0X1.214-ZY3 Part #: 7556889 Required per assembly: 2 Currently Not Available
