Cooling System - Z16vfe92ae/Ah/As/Aw (700476) replacement parts for 2016 Polaris RZR XP 4 TURBO

OEM Parts Polaris 2016 Polaris RZR XP 4 TURBO Cooling System - Z16vfe92ae/Ah/As/Aw (700476)

Cooling System - Z16VFE92AE/AH/AS/AW (700476) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

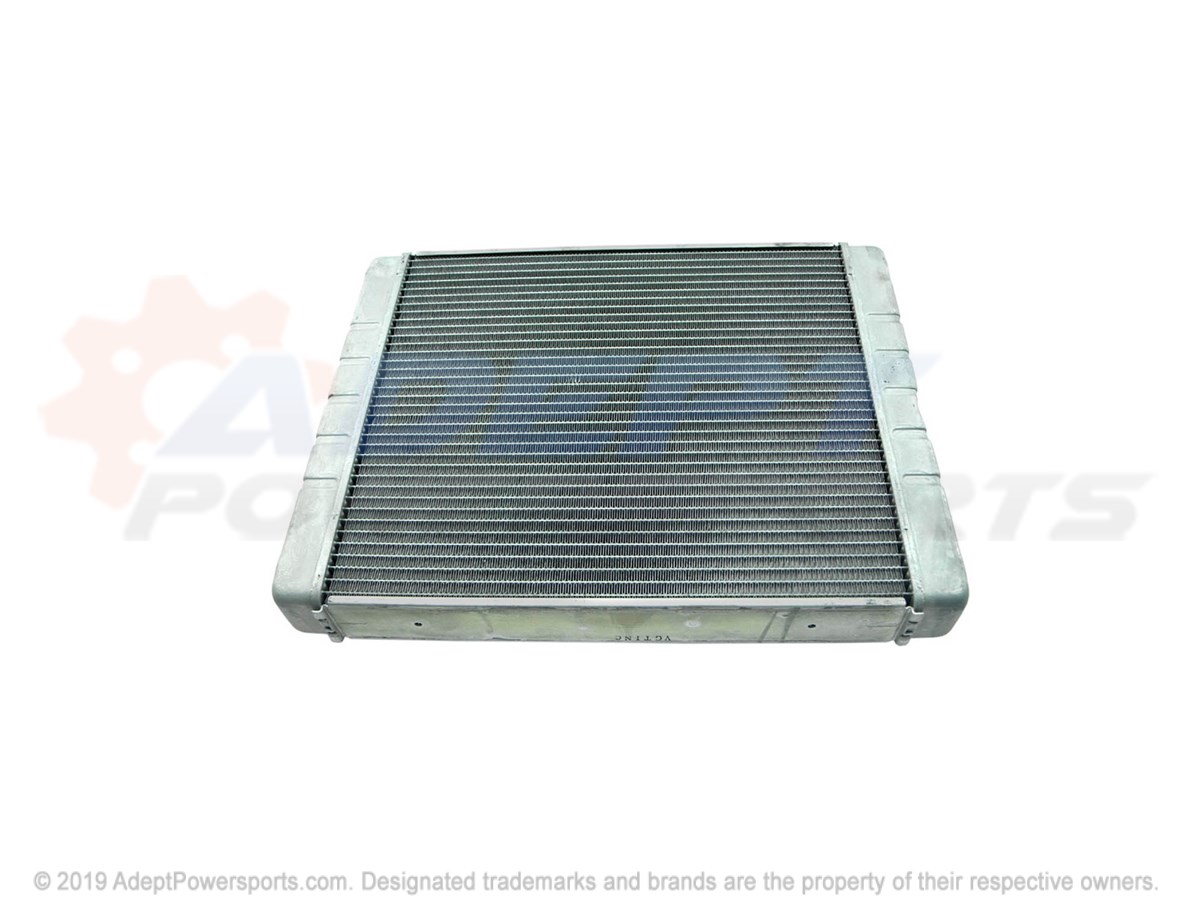

1	ASM-CORE, RADIATOR Part #: 1240935 Required per assembly: 1 Currently Not Available
2	ASM-FAN Part #: 2413044 Required per assembly: 1 Currently Not Available
3	SCR-HXFLGHD, M6X16, 0600086 Part #: 7518591 Required per assembly: 4 Currently Not Available
4	BRKT-MOUNT, RADIATOR, LH, BLK Part #: 5261652-329 Required per assembly: 1 Currently Not Available
5	BRKT-MOUNT, RADIATOR, RH, BLK Part #: 5261653-329 Required per assembly: 1 Currently Not Available
6	BRKT-MOUNT, RADIATOR, BLK Part #: 5260767-329 Required per assembly: 1 Currently Not Available
7	GROMMET-TANK FITTING Part #: 7052028 Required per assembly: 4 Note: Grommet Currently Not Available
8	SCREW Part #: 7518529 Required per assembly: 8 ~~$2.99~~ $1.73 - + Add to cart
9	SHROUD-RADIATOR, UPPER Part #: 5452630 Required per assembly: 1 Currently Not Available
10	SCREW Part #: 7518936 Required per assembly: 2 Currently Not Available
11	HOSE-OUT, SURGE, TANK, TO, TEE Part #: 5415443 Required per assembly: 1 Currently Not Available
12	CLAMP, SPRINGBAND Part #: 7080844 Required per assembly: 10 Currently Not Available
13	CLAMP, HOSE Part #: 7080003 Required per assembly: 2 Note: Clamp, Hose, Red Currently Not Available
14	HOSE-IAC SHORT Part #: 5813672 Required per assembly: 1 Currently Not Available
15	CLAMP-HOSE, Part #: 7080236 Required per assembly: 1 Currently Not Available
16	SCREW Part #: 7518158 Required per assembly: 3 Currently Not Available
17	TUBE-COOLANT, 1", MP Part #: 5139910 Required per assembly: 1 Currently Not Available
18	TUBE-COOLANT, 1", MP Part #: 5139911 Required per assembly: 1 Currently Not Available
19	BRKT-COOLANT, TUBE, BLK Part #: 5259433-329 Required per assembly: 1 Currently Not Available
20	BRKT-COOLANT, TUBE, BLK Part #: 5260766-329 Required per assembly: 1 Currently Not Available
21	BRACKET-COOLANT TUBE Part #: 5451221 Required per assembly: 4 Currently Not Available
22	SCREW Part #: 7519001 Required per assembly: 2 Currently Not Available
23	SCREW Part #: 7512026 Required per assembly: 2 Note: Screw Currently Not Available
24	HOSE, ENGINE, OUTLET, REAR Part #: 5414530 Required per assembly: 1 Currently Not Available
25	HOSE, ENGINE, INLET, REAR Part #: 5414976 Required per assembly: 1 Currently Not Available
26	HOSE-RADIATOR, UPPER Part #: 5415634 Required per assembly: 1 Currently Not Available
27	HOSE-RADIATOR, LWR, FRONT Part #: 5415444 Required per assembly: 1 Currently Not Available
28	HOSE-RADIATOR, LWR, REAR Part #: 5415446 Required per assembly: 1 Currently Not Available
29	T-CONNECTOR Part #: 7052373 Required per assembly: 1 Note: T-Connector Currently Not Available
30	CLAMP, HOSE Part #: 7081192 Required per assembly: 2 Currently Not Available
31	CAP, PRESSURE Part #: 1240300 Required per assembly: 1 Currently Not Available
32	WELD-SURGE, TANK, DUAL Part #: 1240943 Required per assembly: 1 Currently Not Available
33	HOSE Part #: 8450120-600 Required per assembly: 1 Currently Not Available
