Front Shock Mounting - Z16vfe99af/Am (49Rgrshockmtg14rzr1000) replacement parts for 2016 Polaris RZR XP 4 1000

OEM Parts Polaris 2016 Polaris RZR XP 4 1000 Front Shock Mounting - Z16vfe99af/Am (49Rgrshockmtg14rzr1000)

Front Shock Mounting - Z16VFE99AF/AM (49RGRSHOCKMTG14RZR1000) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	BUSHING-REDUCER .500X.398 ZYW Part #: 5137876 Required per assembly: 8 ~~$7.99~~ $4.60 - + Add to cart
2	O-RING Part #: 5412290 Required per assembly: 8 Currently Not Available
3	SPACER, SPRING Part #: 5450644 Required per assembly: 2 Currently Not Available
4	RETAINER-SPRING, CAST Part #: 5634606 Required per assembly: 2 Currently Not Available
5	SHOCK, FRONT, RH, PASSENGER Part #: 7044117 Required per assembly: 1 Note: E99AF/AM Currently Not Available
5	SHOCK, FRONT, LH, DRIVER Part #: 7044116 Required per assembly: 1 Currently Not Available
6	SPRING, BRIGHT, WHITE Part #: 7044114-133 Required per assembly: 2 Note: M99AM Currently Not Available

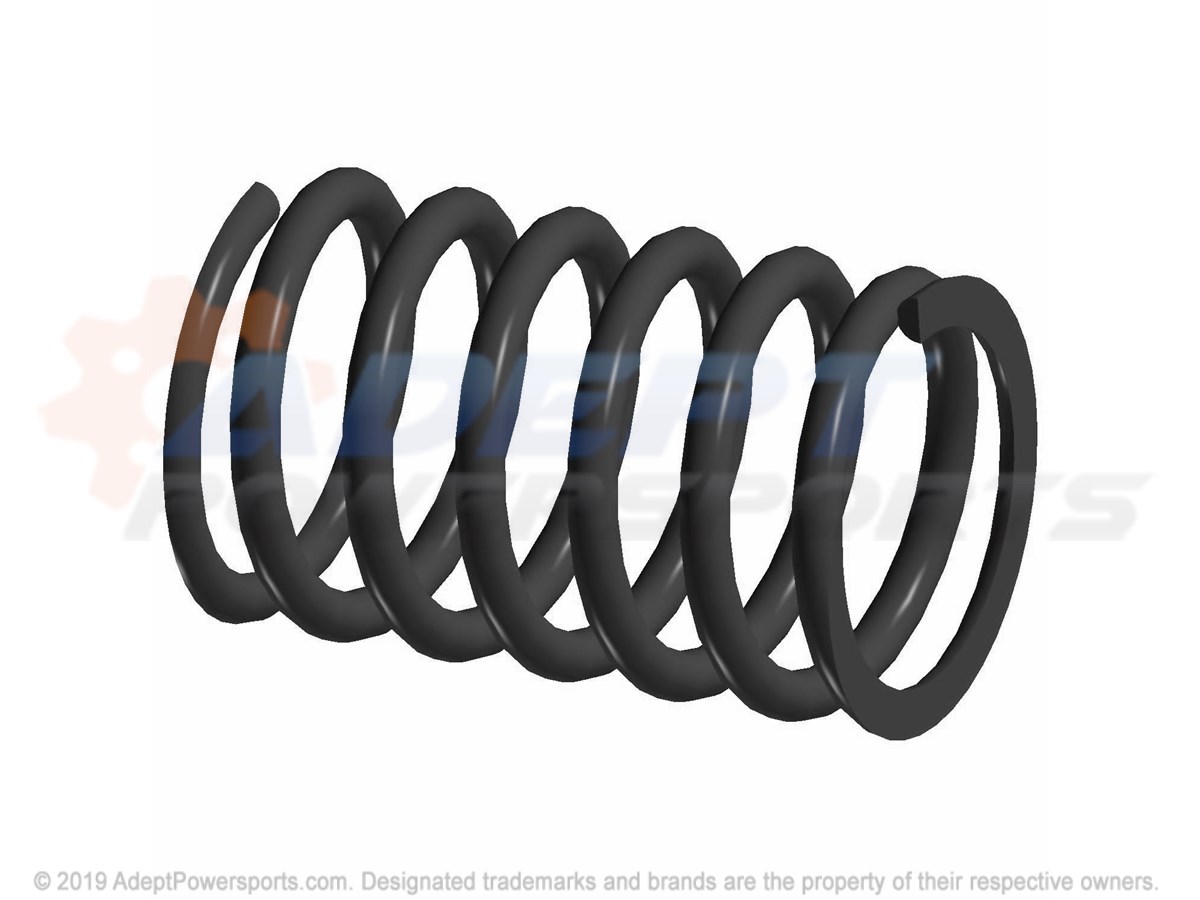

6	SPR-335#, 10.25FL, 3.04-3.04ID, S Part #: 7044114-385 Required per assembly: 2 Note: E99AF Currently Not Available

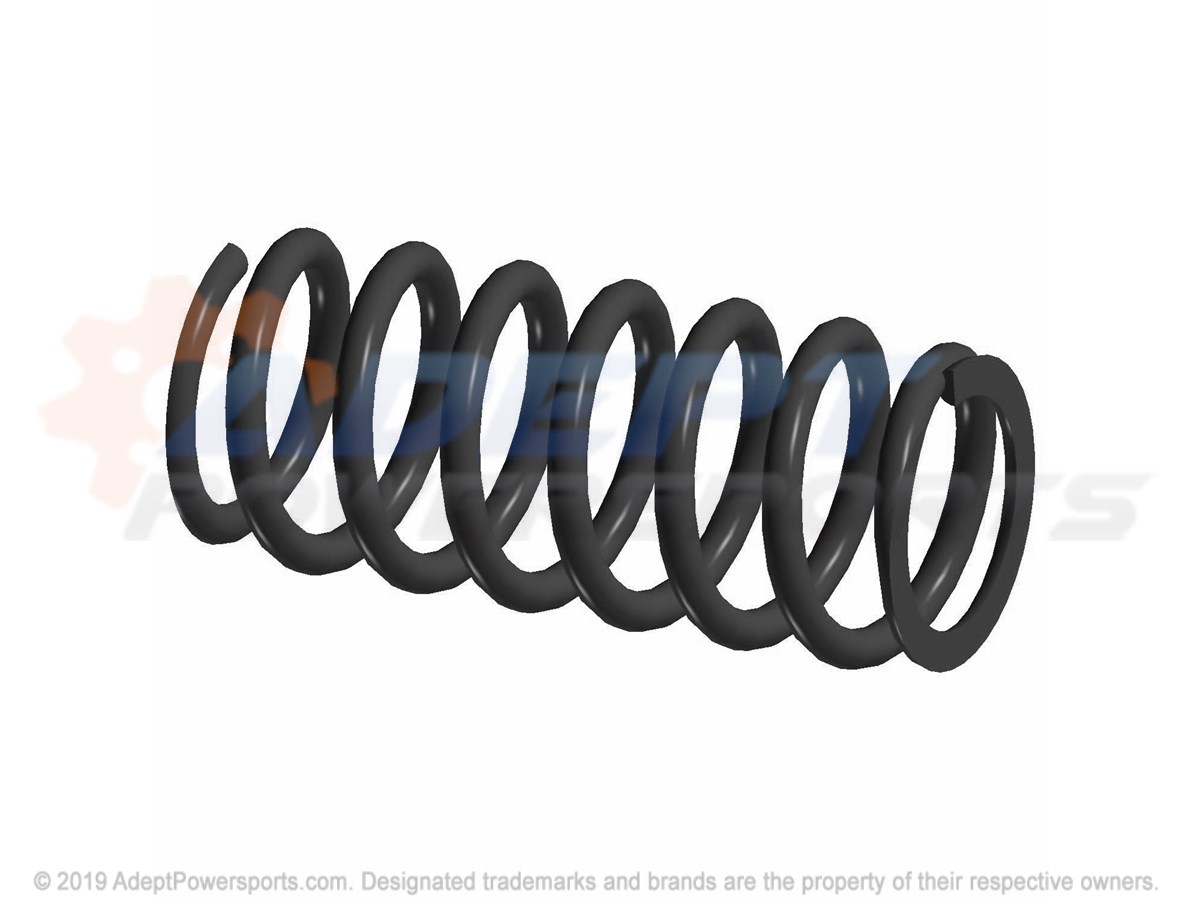

7	SPR-280#, 6.1FL, 3.04-3.04ID, SLV Part #: 7044115-385 Required per assembly: 2 Note: E99AF Currently Not Available
7	SPRING, BRIGHT, WHITE Part #: 7044115-133 Required per assembly: 2 Note: M99AM Currently Not Available
7	SPG-350#, 3.38FL, 3.04-3.04ID, SL Part #: 7044286-385 Required per assembly: 2 Note: E99AM Currently Not Available
8	SCR-HXFL-M10X1.25X55 10.9 ZOD Part #: 7519285 Required per assembly: 4 Note: M99AM Currently Not Available
9	NUT, FLANGE Part #: 7547333 Required per assembly: 4 Note: M10 x 1.25 ~~$3.74~~ $2.23 - + Add to cart
10	WASHER, FLAT Part #: 7556153 Required per assembly: 2 Note: Washer ~~$3.99~~ $2.30 - + Add to cart
