Hood And Front Body Work - Z16vha57a2/Eak/As (49Rgrhood15rzr570) replacement parts for 2016 Polaris RZR 570

OEM Parts Polaris 2016 Polaris RZR 570 Hood And Front Body Work - Z16vha57a2/Eak/As (49Rgrhood15rzr570)

Hood and Front Body Work - Z16VHA57A2/EAK/AS (49RGRHOOD15RZR570) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

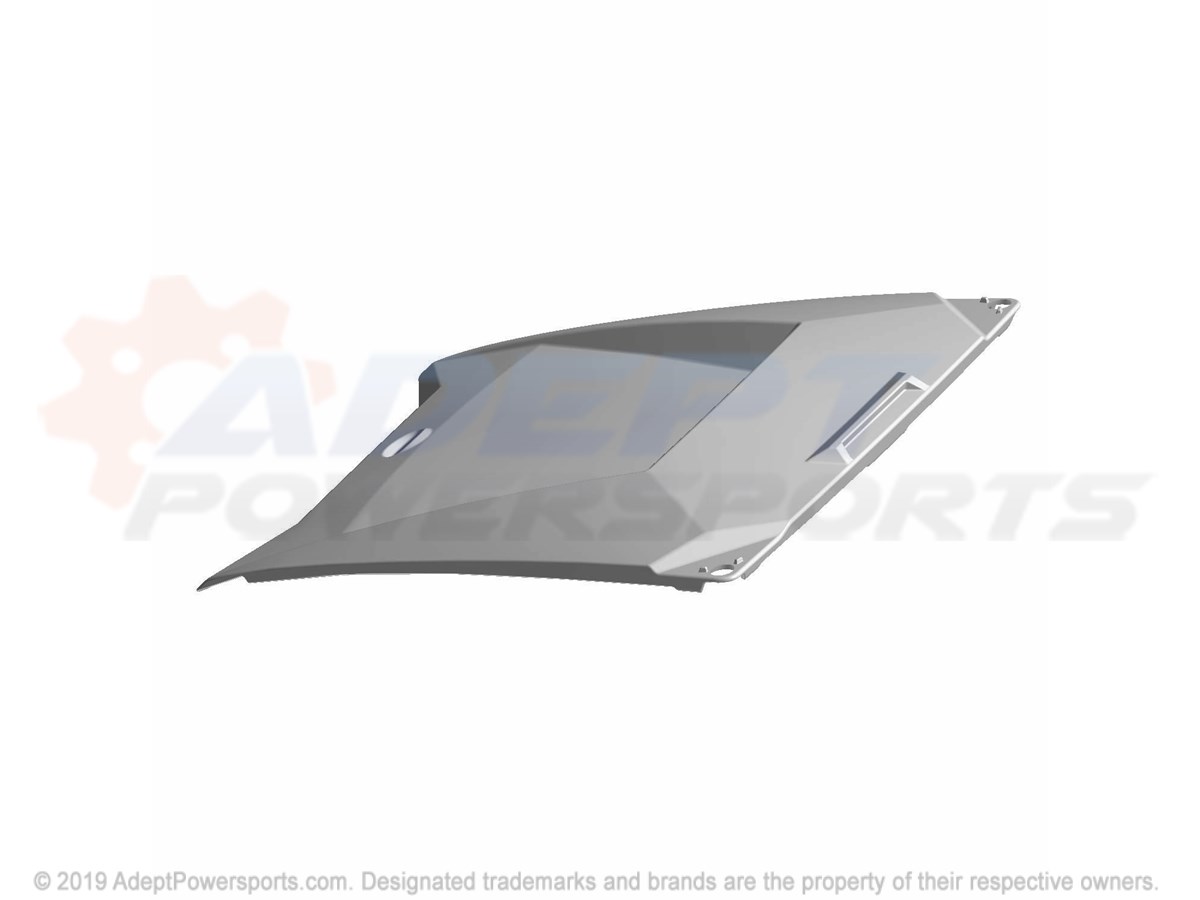

1	HOOD, ACCESS, CENTER, SUNSET, RED Part #: 5438581-520 Required per assembly: 1 Note: AS Currently Not Available
1	HOOD-CENTER, ACCESS, WHT.LT. Part #: 5438575-599 Required per assembly: 1 Note: A2 Currently Not Available
1	HOOD-CNTR, ACCESS, PNTD, BLK, PRL Part #: 5438581-666 Required per assembly: 1 Note: AK Currently Not Available
2	LATCH, 1/4, TURN Part #: 7081500 Required per assembly: 2 Currently Not Available
3	WASHER Part #: 7555919 Required per assembly: 2 Note: Washer Currently Not Available
4	GROMMET, LATCH Part #: 5413428 Required per assembly: 2 Currently Not Available

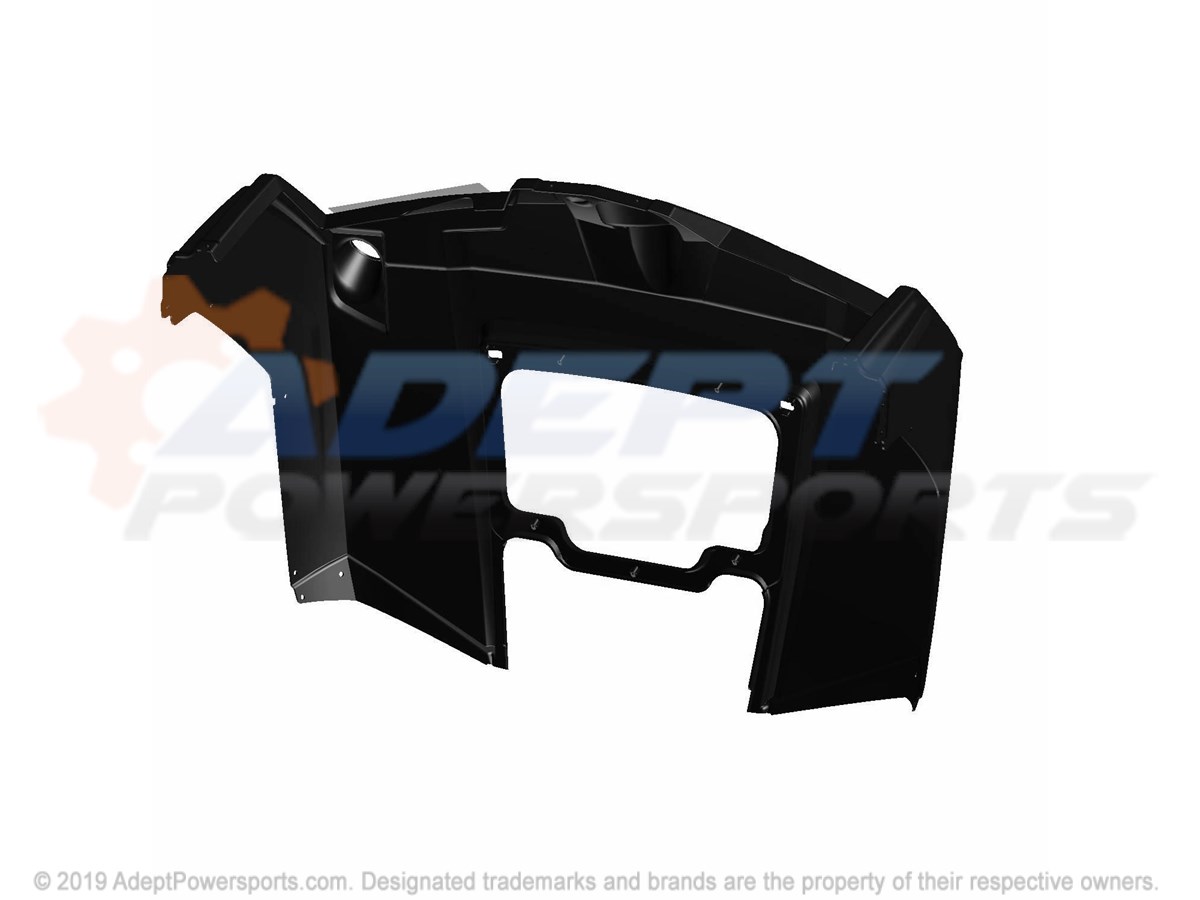

6	ASM-HOOD, RZR, 2, OC.PNTD, BLK, PRL Part #: 2635160-666 Required per assembly: 1 Note: INCL. WARNING DECALS Currently Not Available
6	ASM-HOOD, RZR, 2, OC.PNTD, SUN.RED Part #: 2635160-520 Required per assembly: 1 Note: INCL. WARNING DECALS Currently Not Available
6	ASM-HOOD, RZR, HDPE, 2, OC.WHT.LT. Part #: 2635164-599 Required per assembly: 1 Note: INCL. WARNING DECALS Currently Not Available
7	BUMPER, RUBBER Part #: 5813911 Required per assembly: 2 Currently Not Available
8	RIVET Part #: 7661855 Required per assembly: 8 ~~$2.99~~ $1.73 - + Add to cart
9	FLAIR, FENDER, FRONT, LH, BLACK Part #: 5438207-070 Required per assembly: 1 Note: Flair, Fender, Front, LH, Black ~~$52.26~~ $41.39 - + Add to cart
10	FLAIR, FENDER, FRONT, RH, BLACK Part #: 5438208-070 Required per assembly: 1 ~~$52.26~~ $41.39 - + Add to cart
11	UNDERHOOD BOX Part #: 2879287 Required per assembly: 1 Note: (Description) AK Currently Not Available
12	MOUNT, STORAGE, BOX, UNDERHOOD Part #: 5450232 Required per assembly: 1 Note: AK Currently Not Available
13	SCREW Part #: 7517685 Required per assembly: 2 Note: AK Currently Not Available
