2016 Yamaha Apex RX10GS - Instrument Panel

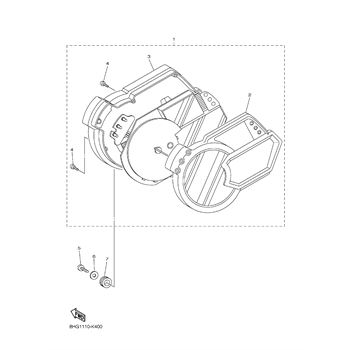

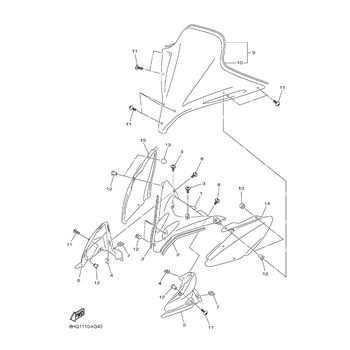

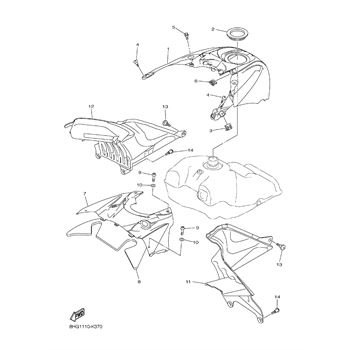

INSTRUMENT PANEL Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

PANEL, INSTRUMENT

Part #: 8FP-77711-00-PD Required per assembly: 1
$373.39
-
+
Add to cart
2

GROMMET

Part #: 8FP-77746-01-00 Required per assembly: 1
$18.98
$15.66
-
+
Add to cart
3

PLATE, SPRING

Part #: 4XV-2177L-01-00 Required per assembly: 2
$7.49
$6.09
-
+
Add to cart
4

SCREW, BINDING

Part #: 90154-06009-00 Required per assembly: 2
$3.60
$2.98
-
+
Add to cart
5

BOLT

Part #: 90109-06220-00 Required per assembly: 2
$11.49
$7.30
-
+
Add to cart
6

PLATE, SPRING

Part #: 5PW-2177L-01-00 Required per assembly: 2
$7.49
$6.11
-
+
Add to cart
7

PANEL, INSTRUMENT

Part #: 8FP-77712-00-PA Required per assembly: 1
$189.99
$186.92
-
+
Add to cart
8

DAMPER 1

Part #: 8FP-77319-00-00 Required per assembly: 1
$13.99
$11.60
-
+
Add to cart
9

HEAD

Part #: 5PW-28386-00-00 Required per assembly: 4
$18.98
$15.66
-
+
Add to cart
10

WASHER, SPECIAL, 1

Part #: 8HW-21757-00-00 Required per assembly: 8
$0.26
$0.25
-
+
Add to cart
11

COVER, SIDE, 1

Part #: 8FP-21711-00-00 Required per assembly: 1
$91.98
$88.00
-
+
Add to cart
12

COVER, SIDE, 2

Part #: 8FP-21721-00-00 Required per assembly: 1
$91.98
$87.00
-
+
Add to cart
13

SCREW

Part #: 90149-06117-00 Required per assembly: 2
$8.49
$5.29
-
+
Add to cart
14

SCREW, BINDING

Part #: 90154-06009-00 Required per assembly: 4
$3.60
$2.98
-
+
Add to cart
