2016 Yamaha Apex XTX RX10XTGS - Windshield

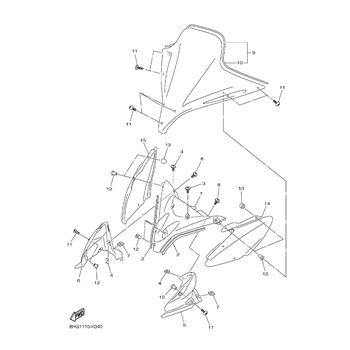

WINDSHIELD Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

COVER, HEADLIGHT

Part #: 8HG-77251-00-00 Required per assembly: 1
$87.60
-
+
Add to cart
2

DAMPER

Part #: 8HG-77238-00-00 Required per assembly: 2
$2.20
$1.84
-
+
Add to cart
3

SCREW, BINDING

Part #: 90154-06009-00 Required per assembly: 2
$3.60
$2.98
-
+
Add to cart
4

NUT, SPRING

Part #: 90183-06100-00 Required per assembly: 2
$11.49
$7.74
-
+
Add to cart
5

PLATE 1

Part #: 8HG-77185-00-00 Required per assembly: 1
$85.98
$77.75
-
+
Add to cart
6

PLATE 2

Part #: 8HG-77186-00-00 Required per assembly: 1
$85.98
$77.75
-
+
Add to cart
7

PLATE, SPRING

Part #: 5PW-2177L-01-00 Required per assembly: 2
$7.49
$6.11
-
+
Add to cart
8

SCREW, BINDING

Part #: 90154-06009-00 Required per assembly: 2
$3.60
$2.98
-
+
Add to cart
9

WINDSHIELD COMP.

Part #: 8HG-K7210-20-00 Required per assembly: 1
Not Available
10

TRIM, UPPER

Part #: 8FM-K7213-00-00 Required per assembly: 1
Not Available
11

SCREW, ROUND, HEAD

Part #: 90150-05024-00 Required per assembly: 11
$3.35
$2.80
-
+
Add to cart
12

NUT

Part #: 90179-05271-00 Required per assembly: 11
$8.49
$5.44
-
+
Add to cart
13

CAP, END

Part #: 8HG-78139-00-00 Required per assembly: 2
$8.49
$5.88
-
+
Add to cart
14

FAIRING 2

Part #: 8HG-K723A-00-00 Required per assembly: 1
Not Available
15

FAIRING 3

Part #: 8HG-K723B-00-00 Required per assembly: 1
$43.99
$35.40
-
+
Add to cart
