Exhaust 1 replacement parts for 2016 Yamaha 242 Limited California

OEM Parts Yamaha 2016 Yamaha 242 Limited California Exhaust 1

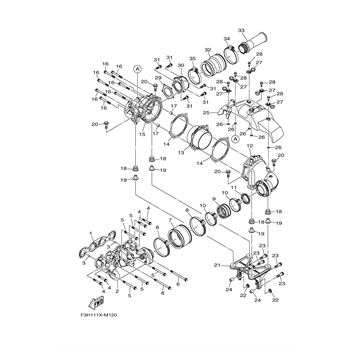

EXHAUST 1 Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	GASKET, EXHAUST, PIPE Part #: 6DE-14613-00-00 Required per assembly: 1 $51.99 $51.39 - + Add to cart
2	MUFFLER 1 Part #: 6DE-14711-00-00 Required per assembly: 1 $928.49 $924.23 - + Add to cart
3	PIN, DOWEL Part #: 93608-16M16-00 Required per assembly: 2 $2.79 $2.54 - + Add to cart
4	BOLT, WITH, WASHER Part #: 90119-08034-00 Required per assembly: 4 $4.49 $4.08 - + Add to cart
5	BOLT, WITH, WASHER Part #: 90119-08097-00 Required per assembly: 5 $6.99 $6.35 - + Add to cart
6	BOLT, WITH, WASHER Part #: 90119-08164-00 Required per assembly: 2 $7.49 $6.80 - + Add to cart
7	JOINT, EXHAUST, 1 Part #: 6DE-14615-00-00 Required per assembly: 1 $113.48 $111.86 - + Add to cart
8	HOSE CLAMP ASSEMBLY Part #: 90450-99M18-00 Required per assembly: 2 $86.98 $70.34 - + Add to cart
9	JOINT, EXHAUST, 2 Part #: 6DE-14625-00-00 Required per assembly: 1 $86.47 $78.61 - + Add to cart
10	HOSE CLAMP ASSEMBLY Part #: 90450-95001-00 Required per assembly: 2 $29.48 $29.45 - + Add to cart
11	SEAL, EXHAUST Part #: 6DE-14642-00-00 Required per assembly: 1 $131.99 $130.00 - + Add to cart
12	OUTER, COVER, EXHAUST Part #: 6DE-41113-00-00 Required per assembly: 1 $796.49 $796.20 - + Add to cart
13	CATALYST ASSEMBLY Part #: 6DE-14740-00-00 Required per assembly: 1 $1,783.49 $1,760.90 - + Add to cart
14	GASKET, EXHAUST, OUTER, COVER Part #: 6DE-41114-00-00 Required per assembly: 2 $51.99 $51.39 - + Add to cart
15	OUTER, COVER, EXHAUST Part #: 6DE-41123-00-00 Required per assembly: 1 $673.73 - + Add to cart
16	BOLT, WITH, WASHER Part #: 90119-08021-00 Required per assembly: 7 $9.13 $8.30 - + Add to cart
17	PIN, DOWEL Part #: 99530-12016-00 Required per assembly: 2 $4.88 $4.05 - + Add to cart
18	GROMMET Part #: 90480-21M63-00 Required per assembly: 4 $17.48 $12.49 - + Add to cart
19	COLLAR Part #: 90387-11008-00 Required per assembly: 4 $19.98 $19.64 - + Add to cart
20	BOLT, WITH, WASHER Part #: 90119-10011-00 Required per assembly: 4 $6.49 $5.88 - + Add to cart
21	STAY, MUFFLER, 2 Part #: 6DE-14781-00-00 Required per assembly: 1 $574.45 - + Add to cart
22	GROMMET Part #: 90480-13014-00 Required per assembly: 2 $9.49 $6.73 - + Add to cart
23	BOLT, FLG., (SMALL, HEAD) Part #: 95024-10050-00 Required per assembly: 4 $6.49 $4.43 - + Add to cart
24	PIN, DOWEL Part #: 99530-14016-00 Required per assembly: 2 $3.79 $3.14 - + Add to cart
25	PROTECTOR, MUFFLER, 1 Part #: 6DE-14718-00-00 Required per assembly: 1 $121.35 - + Add to cart
26	GASKET Part #: 90430-09004-00 Required per assembly: 5 $4.99 $4.54 - + Add to cart
27	COVER Part #: 66V-15779-00-00 Required per assembly: 5 $3.49 $3.18 - + Add to cart
28	BOLT Part #: 90109-06M99-00 Required per assembly: 5 $8.49 $4.90 - + Add to cart
29	GASKET, MUFFLER, DAMPER, 2 Part #: 6BH-14749-00-00 Required per assembly: 1 $26.59 $24.18 - + Add to cart
30	PIPE, TAIL Part #: 6BH-14784-01-00 Required per assembly: 1 $184.99 $182.92 - + Add to cart
31	BOLT, FLANGE, (SMALL, HEAD) Part #: 95024-08035-00 Required per assembly: 5 $9.49 $6.05 - + Add to cart
32	PIPE, OUTLET Part #: 6S5-E4752-01-00 Required per assembly: 1 $34.67 $26.43 - + Add to cart
33	PIPE 1 Part #: 6CS-1475A-00-00 Required per assembly: 1 $208.99 $205.62 - + Add to cart
34	HOSE CLAMP ASSEMBLY Part #: 90450-99016-00 Required per assembly: 1 $23.27 $21.15 - + Add to cart
35	HOSE CLAMP ASSEMBLY Part #: 90450-99015-00 Required per assembly: 1 $21.60 $19.64 - + Add to cart
