Electrical 1 replacement parts for 2016 Yamaha SR400

OEM Parts Yamaha 2016 Yamaha SR400 Electrical 1

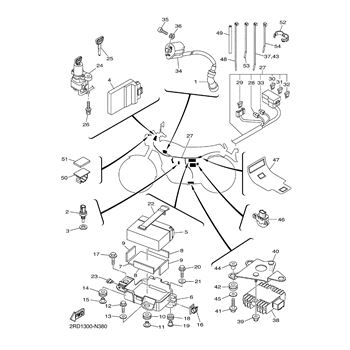

ELECTRICAL 1 Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	PLUG CAP ASSEMBLY Part #: 3NS-82370-00-00 Required per assembly: 1 $41.99 $31.90 - + Add to cart
2	THERMO UNIT Part #: 52B-H3591-00-00 Required per assembly: 1 $37.99 $28.37 - + Add to cart
3	WASHER PLATE 341839090000 Part #: 90201-10128-00 Required per assembly: 1 $4.04 $3.36 - + Add to cart
4	ENGINE CONTROL UNIT ASSY Part #: 2RD-8591A-01-00 Required per assembly: 1 $758.54 $689.58 - + Add to cart
5	BATTERY ASSEMBLY (GS YUASA GT4B-5) Part #: GT4-B5000-00-00 Required per assembly: 1 $106.90 - + Add to cart
6	BOX, BATTERY, 1 Part #: 3HT-8212B-00-00 Required per assembly: 1 $24.98 $20.38 - + Add to cart
7	DAMPER, PLATE Part #: 90520-04005-00 Required per assembly: 1 $4.00 $3.30 - + Add to cart
8	DAMPER, MUFFLER, 2 Part #: 7NJ-14757-00-00 Required per assembly: 2 $3.50 $2.25 - + Add to cart
9	DAMPER Part #: 5TG-84553-00-00 Required per assembly: 2 $1.89 $1.59 - + Add to cart
10	GROMMET Part #: 90480-16004-00 Required per assembly: 1 $1.55 $1.27 - + Add to cart
11	COLLAR (36Y) Part #: 90387-067K8-00 Required per assembly: 1 $8.49 $5.10 - + Add to cart
12	BOLT, FLANGE Part #: 90105-06169-00 Required per assembly: 1 $2.79 $1.15 - + Add to cart
13	WASHER, PLATE Part #: 90201-06380-00 Required per assembly: 1 $0.65 $0.57 - + Add to cart
14	GROMMET Part #: 90480-16004-00 Required per assembly: 1 $1.55 $1.27 - + Add to cart
15	COLLAR (36Y) Part #: 90387-067K8-00 Required per assembly: 1 $8.49 $5.10 - + Add to cart
16	CLAMP Part #: 90464-13185-00 Required per assembly: 1 $6.49 $3.64 - + Add to cart
17	BOLT, WITH, WASHER Part #: 90119-06138-00 Required per assembly: 1 $6.49 $5.19 - + Add to cart
18	GROMMET Part #: 90480-14003-00 Required per assembly: 1 $9.49 $6.12 - + Add to cart
19	COLLAR Part #: 90387-085W0-00 Required per assembly: 1 $4.04 $3.36 - + Add to cart
20	BOLT, FLANGE Part #: 90105-06169-00 Required per assembly: 1 $2.79 $1.15 - + Add to cart
21	WASHER, PLATE Part #: 90201-06380-00 Required per assembly: 1 $0.65 $0.57 - + Add to cart
22	BAND, BATTERY Part #: 7H3-82131-00-00 Required per assembly: 1 $18.98 $15.76 - + Add to cart
23	FUSE (30A-BL) Part #: 1AE-82151-00-00 Required per assembly: 1 $8.49 $6.11 - + Add to cart
24	MAIN SWITCH STEERI Part #: 2RD-82501-10-00 Required per assembly: 1 $196.99 $168.72 - + Add to cart
25	BLANK KEY Part #: 4BH-82511-09-00 Required per assembly: 1 Note: AP $33.99 $24.01 - + Add to cart
26	BOLT Part #: 90109-08196-00 Required per assembly: 2 $9.49 $6.06 - + Add to cart
27	WIRE HARNESS ASSEMBLY Part #: 2RD-82590-10-00 Required per assembly: 1 $580.69 $527.90 - + Add to cart
28	DIODE ASSEMBLY Part #: 3XV-81980-00-00 Required per assembly: 1 $19.98 $16.25 - + Add to cart
29	FUSE (30A-BL) Part #: 1AE-82151-00-00 Required per assembly: 1 $8.49 $6.11 - + Add to cart
30	FUSE (15A) Part #: 67F-82151-50-00 Required per assembly: 3 Note: (15A) (15A) $4.04 $3.78 - + Add to cart
31	FUSE (10A) Part #: 67F-82151-40-00 Required per assembly: 2 Note: (10A) $7.09 $6.65 - + Add to cart
32	FUSE (75A-BL) Part #: 5JJ-82151-00-00 Required per assembly: 3 $7.49 $6.29 - + Add to cart
33	DIODE ASSEMBLY Part #: 3WP-81980-00-00 Required per assembly: 1 $24.98 $18.52 - + Add to cart
34	IGNITION COIL ASSY Part #: 3D8-82310-11-00 Required per assembly: 1 $58.99 $49.08 - + Add to cart
35	BOLT, HEXAGON, SOCKET, HEAD Part #: 90110-06114-00 Required per assembly: 2 $11.49 $6.92 - + Add to cart
36	DAMPER, IGNITION, COIL Part #: 4BR-82317-00-00 Required per assembly: 2 $5.99 $4.90 - + Add to cart
37	BAND Part #: 1UA-82591-00-00 Required per assembly: 1 $5.49 $4.05 - + Add to cart
38	RECTIFIER & REGULATOR ASSEMBLY Part #: 4XY-81960-00-00 Required per assembly: 1 $194.99 $166.89 - + Add to cart
39	NUT, U, FLANGE Part #: 95604-06200-00 Required per assembly: 2 $2.95 $2.31 - + Add to cart
40	STAY, RECTIFIER Part #: 3HT-8711E-10-00 Required per assembly: 1 $14.49 $12.04 - + Add to cart
41	BOLT, FLANGE Part #: 95817-06025-00 Required per assembly: 3 $1.75 $1.44 - + Add to cart
42	GROMMET Part #: 90480-14229-00 Required per assembly: 3 $9.49 $6.05 - + Add to cart
43	BAND Part #: 1UA-82591-00-00 Required per assembly: 3 $5.49 $4.05 - + Add to cart
44	COLLAR Part #: 90387-06158-00 Required per assembly: 3 $9.49 $6.05 - + Add to cart
45	WASHER, PLATE Part #: 90201-06095-00 Required per assembly: 3 $9.49 $6.18 - + Add to cart
46	SENSOR, LEAN, ANGLE Part #: 3HT-82576-00-00 Required per assembly: 1 $64.98 $58.64 - + Add to cart
47	PROTECTER, WIRE, HARNESS Part #: 2D1-82589-02-00 Required per assembly: 1 $11.99 $9.21 - + Add to cart
48	BAND Part #: 1UA-82591-00-00 Required per assembly: 1 $5.49 $4.05 - + Add to cart
49	HOSE (L200) Part #: 90445-07176-00 Required per assembly: 1 Note: (USA) $8.80 $8.00 - + Add to cart
