Frame replacement parts for 2016 Yamaha SMAX

OEM Parts Yamaha 2016 Yamaha SMAX Frame

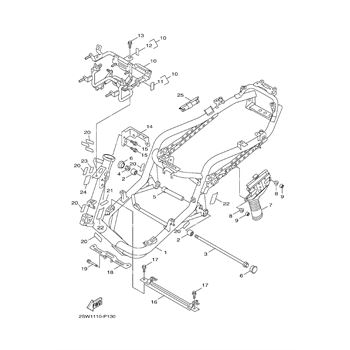

FRAME Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	FRAME COMP. Part #: 2SW-F1110-10-33 Required per assembly: 1 $920.76 - + Add to cart
2	BUSH 2 Part #: 52S-F2124-00-00 Required per assembly: 2 $12.49 $8.23 - + Add to cart
3	BOLT, ENGINE, MOUNT Part #: 52S-F1481-00-00 Required per assembly: 1 Not Available
4	NUT, SELF-LOCKING, (8BF) Part #: 95607-14200-00 Required per assembly: 1 $13.49 $9.99 - + Add to cart
5	SPACER Part #: 52S-F1459-00-00 Required per assembly: 1 $19.48 $16.28 - + Add to cart
6	PLUG Part #: 90338-33800-00 Required per assembly: 2 $0.99 $0.54 - + Add to cart
7	DUCT 2 Part #: 1DK-F110G-01-00 Required per assembly: 1 $38.99 $30.53 - + Add to cart
8	COLLAR Part #: 90387-068M8-00 Required per assembly: 2 $0.45 $0.32 - + Add to cart
9	NUT, FLANGE, (7NB) Part #: 95780-06500-00 Required per assembly: 2 $2.95 $1.87 - + Add to cart
10	BRACKET Part #: 1DK-XF128-20-00 Required per assembly: 1 $96.98 $84.93 - + Add to cart
11	DAMPER 2 Part #: 5ML-F1639-00-00 Required per assembly: 1 $0.30 $0.25 - + Add to cart
12	DAMPER, PLATE Part #: 90520-02828-00 Required per assembly: 1 $0.35 $0.28 - + Add to cart
13	BOLT, FLANGE Part #: 95817-08014-00 Required per assembly: 2 $2.50 $1.91 - + Add to cart
14	BRACKET, FRONT, UPP Part #: 1DK-F1415-00-00 Required per assembly: 1 $6.99 $5.73 - + Add to cart
15	BOLT, FLANGE Part #: 95817-06010-00 Required per assembly: 2 $5.49 $3.84 - + Add to cart
16	BRACKET 11 Part #: 1DK-F114V-00-00 Required per assembly: 1 $13.49 $11.14 - + Add to cart
17	BOLT, FLANGE Part #: 95817-06010-00 Required per assembly: 2 $5.49 $3.84 - + Add to cart
18	STAY, FUEL, TANK, 1 Part #: 1DK-F4115-01-00 Required per assembly: 1 $9.49 $8.04 - + Add to cart
19	BOLT, FLANGE Part #: 95817-06055-00 Required per assembly: 1 $2.35 $1.97 - + Add to cart
20	DAMPER 1 Part #: 5ML-F1541-00-00 Required per assembly: 9 $0.45 $0.32 - + Add to cart
21	DAMPER 2 Part #: 5ML-F1639-00-00 Required per assembly: 3 $0.30 $0.25 - + Add to cart
22	DAMPER Part #: 28B-F113B-00-00 Required per assembly: 2 $1.75 $1.44 - + Add to cart
23	DAMPER 1 Part #: 4C7-F1541-00-00 Required per assembly: 1 $0.80 $0.65 - + Add to cart
24	DAMPER, PLATE Part #: 90520-02834-00 Required per assembly: 2 $1.55 $1.04 - + Add to cart
25	TOOL KIT Part #: 5ML-F8100-00-00 Required per assembly: 1 $8.49 $7.20 - + Add to cart
