Frame replacement parts for 2016 Yamaha TMAX

OEM Parts Yamaha 2016 Yamaha TMAX Frame

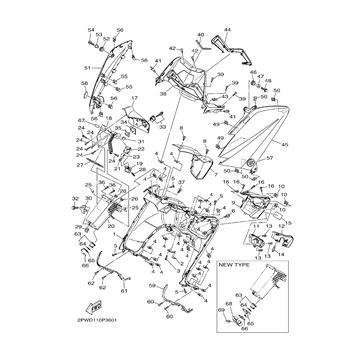

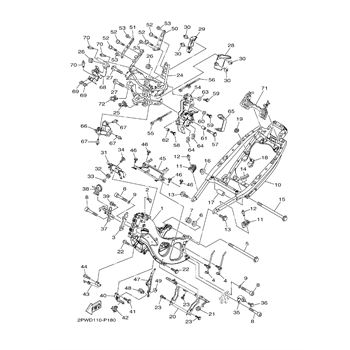

FRAME Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	FRAME COMP. Part #: 2PW-21110-00-00 Required per assembly: 1 $1,840.59 - + Add to cart
2	PLUG, BLIND Part #: 5VX-21279-10-00 Required per assembly: 1 $4.90 $4.08 - + Add to cart
3	DAMPER Part #: 4B5-2113B-00-00 Required per assembly: 1 $5.49 $4.60 - + Add to cart
4	CLAMP 1 Part #: 5RU-12491-00-00 Required per assembly: 2 $4.54 $3.73 - + Add to cart
5	BOLT, FLANGE Part #: 90105-12052-00 Required per assembly: 1 $17.48 $14.58 - + Add to cart
6	NUT, SELF-LOCKING Part #: 95602-12200-00 Required per assembly: 1 $5.49 $3.75 - + Add to cart
7	GROMMET Part #: 90480-14229-00 Required per assembly: 1 $9.49 $6.05 - + Add to cart
8	BOLT Part #: 91312-10055-00 Required per assembly: 4 $4.59 $3.84 - + Add to cart
9	WASHER, PLATE Part #: 90201-100F7-00 Required per assembly: 2 $10.49 $6.27 - + Add to cart
10	REAR FRAME COMP. Part #: 59C-21190-01-00 Required per assembly: 1 $1,448.19 - + Add to cart
11	DAMPER, LOCATING, 3 Part #: 59C-24183-00-00 Required per assembly: 2 $5.49 $4.57 - + Add to cart
12	RIVET Part #: 90269-06001-00 Required per assembly: 2 $6.49 $5.32 - + Add to cart
13	BOLT, FLANGE Part #: 90105-12068-00 Required per assembly: 2 $4.09 $3.40 - + Add to cart
14	MOLD, FUEL, TANK Part #: 1HX-24188-01-00 Required per assembly: 1 $21.98 $17.51 - + Add to cart
15	BOLT, FLANGE Part #: 90105-12052-00 Required per assembly: 1 $17.48 $14.58 - + Add to cart
16	NUT, SELF-LOCKING Part #: 95602-12200-00 Required per assembly: 1 $5.49 $3.75 - + Add to cart
17	COLLAR Part #: 59C-21116-00-00 Required per assembly: 1 $18.48 $15.38 - + Add to cart
18	STAY, MUFFLER, 1 Part #: 4B5-21445-00-00 Required per assembly: 1 $27.98 $22.95 - + Add to cart
19	NUT, SELF-LOCKING Part #: 95602-10200-00 Required per assembly: 1 $2.70 $2.25 - + Add to cart
20	BRACKET, RADIATOR Part #: 2PW-2142K-10-00 Required per assembly: 1 $106.98 $98.44 - + Add to cart
21	GROMMET Part #: 90480-14052-00 Required per assembly: 1 $6.49 $4.31 - + Add to cart
22	BOLT, FLANGE Part #: 95812-08030-00 Required per assembly: 4 $3.81 $3.18 - + Add to cart
23	BOLT, FLANGE Part #: 95817-06020-00 Required per assembly: 3 $3.50 $2.65 - + Add to cart
24	STAY 1 Part #: 2PW-28356-10-00 Required per assembly: 1 $294.99 $284.20 - + Add to cart
25	CLAMP Part #: 90464-18246-00 Required per assembly: 1 $2.43 $1.62 - + Add to cart
26	GROMMET(4DN) Part #: 90480-01558-00 Required per assembly: 2 $4.65 $3.87 - + Add to cart
27	BOLT, FLANGE Part #: 95817-10045-00 Required per assembly: 2 $6.99 $4.45 - + Add to cart
28	COVER Part #: 4B5-2117F-00-00 Required per assembly: 1 $10.99 $9.00 - + Add to cart
29	COVER 2 Part #: 4B5-2117M-00-00 Required per assembly: 1 $10.99 $9.06 - + Add to cart
30	RIVET Part #: 90269-07077-00 Required per assembly: 4 $9.49 $6.80 - + Add to cart
31	BRACKET, AIR, CLEAN Part #: 59C-21147-01-00 Required per assembly: 1 $32.99 $27.37 - + Add to cart
32	GROMMET Part #: 90480-13003-00 Required per assembly: 2 $6.49 $4.63 - + Add to cart
33	SPACER Part #: 90560-06201-00 Required per assembly: 2 $15.49 $11.98 - + Add to cart
34	BOLT, FLANGE Part #: 95817-06016-00 Required per assembly: 2 $1.95 $1.47 - + Add to cart
35	BRACKET 1 Part #: 59C-2141A-01-00 Required per assembly: 1 $11.49 $9.62 - + Add to cart
36	BOLT, FLANGE Part #: 95814-08016-00 Required per assembly: 1 $10.49 $6.55 - + Add to cart
37	BRACKET 2 Part #: 59C-2141E-11-00 Required per assembly: 1 $43.99 $38.22 - + Add to cart
38	CLAMP (2TV) Part #: 90464-10112-00 Required per assembly: 1 Note: Sold in multiples of 5 only $9.49 $6.06 - + Add to cart
39	BOLT, FLANGE Part #: 95814-08016-00 Required per assembly: 1 $10.49 $6.55 - + Add to cart
40	BRACKET, FOOTREST Part #: 2PW-2144H-00-00 Required per assembly: 1 $46.99 $38.60 - + Add to cart
41	BOLT, FLANGE Part #: 95812-08030-00 Required per assembly: 2 $3.81 $3.18 - + Add to cart
42	CLAMP Part #: 90464-08126-00 Required per assembly: 1 $2.29 $1.92 - + Add to cart
43	BRACKET, FOOTREST Part #: 2PW-2145H-00-00 Required per assembly: 1 $43.99 $37.98 - + Add to cart
44	BOLT, FLANGE Part #: 95812-08030-00 Required per assembly: 2 $3.81 $3.18 - + Add to cart
45	BRACKET, TANK, FITTIN Part #: 59C-21345-00-00 Required per assembly: 1 $55.99 $48.32 - + Add to cart
46	BOLT, WITH, WASHER Part #: 90119-06186-00 Required per assembly: 4 $0.60 $0.48 - + Add to cart
47	STAY Part #: 59C-2117A-00-00 Required per assembly: 1 $20.98 $17.01 - + Add to cart
48	CLAMP Part #: 90464-08051-00 Required per assembly: 1 $6.49 $5.19 - + Add to cart
49	NUT, FLANGE, (7NB) Part #: 95780-06500-00 Required per assembly: 1 $2.95 $1.87 - + Add to cart
50	STAY 2 Part #: 2PW-28322-01-00 Required per assembly: 1 $61.99 $54.19 - + Add to cart
51	STAY, LEG, SHIELD Part #: 2PW-28332-01-00 Required per assembly: 1 $61.99 $54.19 - + Add to cart
52	BOLT, HEX, SOCKET, BUTTON Part #: 90111-06106-00 Required per assembly: 4 $6.49 $5.22 - + Add to cart
53	NUT Part #: 90179-05003-00 Required per assembly: 4 $6.49 $4.81 - + Add to cart
54	BOX, BATTERY, 1 Part #: 2PW-8212B-00-00 Required per assembly: 1 $41.16 - + Add to cart
55	CLAMP Part #: 90464-45005-00 Required per assembly: 1 $3.95 $3.27 - + Add to cart
56	CLAMP Part #: 90464-45004-00 Required per assembly: 1 $3.79 $3.18 - + Add to cart
57	BOLT, WITH, WASHER Part #: 90119-08112-00 Required per assembly: 1 $10.49 $7.35 - + Add to cart
58	BOLT, WITH, WASHER Part #: 90119-06209-00 Required per assembly: 1 $6.49 $5.35 - + Add to cart
59	BOLT, FLANGE Part #: 95817-06014-00 Required per assembly: 2 $2.79 $2.10 - + Add to cart
60	COLLAR Part #: 90387-06170-00 Required per assembly: 1 $9.49 $6.12 - + Add to cart
61	COLLAR Part #: 90387-10100-00 Required per assembly: 1 $4.59 $3.84 - + Add to cart
62	COLLAR Part #: 90387-08042-00 Required per assembly: 1 $2.64 $2.19 - + Add to cart
63	COLLAR Part #: 90387-07006-00 Required per assembly: 1 $8.49 $6.37 - + Add to cart
64	NUT, SPRING, (4ES) Part #: 90183-06069-00 Required per assembly: 2 $7.49 $5.99 - + Add to cart
65	BAND, BATTERY Part #: 26H-82131-00-00 Required per assembly: 1 $25.98 $20.53 - + Add to cart
66	BOX, BATTERY, 2 Part #: 59C-8212C-01-00 Required per assembly: 1 $9.99 $8.23 - + Add to cart
67	RIVET Part #: 90269-06008-00 Required per assembly: 3 $9.49 $7.26 - + Add to cart
