Front Fork replacement parts for 2016 Yamaha Super Tenere ES

OEM Parts Yamaha 2016 Yamaha Super Tenere ES Front Fork

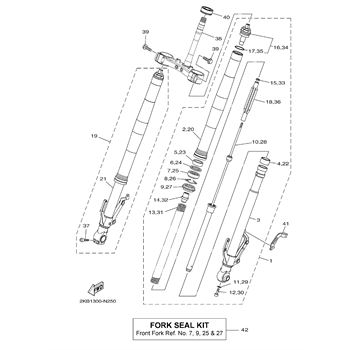

FRONT FORK Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	FRONT FORK ASSEMBLY (L Part #: 2KB-23102-00-00 Required per assembly: 1 $1,452.12 $1,329.11 - + Add to cart
2	TUBE, OUTER, (RIGHT), (RIGHT) Part #: 23P-23136-10-00 Required per assembly: 1 $683.99 $669.30 - + Add to cart
3	INNER TUBE COMP.1 Part #: 2KB-23110-00-00 Required per assembly: 1 $311.99 $279.70 - + Add to cart
4	PISTON, FRONT, FORK Part #: 5EB-23171-00-00 Required per assembly: 1 $37.99 $28.40 - + Add to cart
5	METAL, SLIDE, 1 Part #: 5EB-23125-00-00 Required per assembly: 1 $35.99 $26.81 - + Add to cart
6	WASHER, OIL, SEAL Part #: 4V4-23146-L0-00 Required per assembly: 1 $7.49 $6.35 - + Add to cart
7	OIL SEAL Part #: 4PU-23145-01-00 Required per assembly: 1 $28.98 $20.61 - + Add to cart
8	RING, SNAP Part #: 4V4-23153-L0-00 Required per assembly: 1 $10.99 $8.50 - + Add to cart
9	SEAL, DUST Part #: 4PU-23144-00-00 Required per assembly: 1 $26.98 $19.81 - + Add to cart
10	CYLINDER, COMP, FRONT, FORK Part #: 2KB-23170-10-00 Required per assembly: 1 $274.99 $270.13 - + Add to cart
11	GASKET Part #: 509-23158-L0-00 Required per assembly: 1 $17.98 $14.09 - + Add to cart
12	BOLT, HEXAGON, SOCKET, HEAD Part #: 3D8-23181-00-00 Required per assembly: 1 $9.49 $7.50 - + Add to cart
13	SPRING, FRONT, FORK Part #: 2KB-23141-00-00 Required per assembly: 1 $100.98 $86.40 - + Add to cart
14	SPACER Part #: 2KB-23118-00-00 Required per assembly: 1 $52.99 $45.71 - + Add to cart
15	NUT Part #: 3LC-23357-00-00 Required per assembly: 1 $7.49 $6.31 - + Add to cart
16	BOLT, CAP Part #: 2KB-23111-00-00 Required per assembly: 1 $671.32 $610.29 - + Add to cart
17	O-RING Part #: 3XJ-23147-L0-00 Required per assembly: 1 $8.49 $6.74 - + Add to cart
18	GUIDE, SPRING Part #: 2KB-23117-00-00 Required per assembly: 1 $33.99 $28.15 - + Add to cart
19	FRONT FORK ASSEMBLY (R Part #: 2KB-23103-00-00 Required per assembly: 1 $1,452.12 $1,330.11 - + Add to cart
20	TUBE, OUTER, (RIGHT), (RIGHT) Part #: 23P-23136-10-00 Required per assembly: 1 $683.99 $669.30 - + Add to cart
21	INNER TUBE COMP.2 Part #: 2KB-23120-00-00 Required per assembly: 1 $248.99 $224.00 - + Add to cart
22	PISTON, FRONT, FORK Part #: 5EB-23171-00-00 Required per assembly: 1 $37.99 $28.40 - + Add to cart
23	METAL, SLIDE, 1 Part #: 5EB-23125-00-00 Required per assembly: 1 $35.99 $26.81 - + Add to cart
24	WASHER, OIL, SEAL Part #: 4V4-23146-L0-00 Required per assembly: 1 $7.49 $6.35 - + Add to cart
25	OIL SEAL Part #: 4PU-23145-01-00 Required per assembly: 1 $28.98 $20.61 - + Add to cart
26	RING, SNAP Part #: 4V4-23153-L0-00 Required per assembly: 1 $10.99 $8.50 - + Add to cart
27	SEAL, DUST Part #: 4PU-23144-00-00 Required per assembly: 1 $26.98 $19.81 - + Add to cart
28	CYLINDER, COMP, FRONT, FORK Part #: 2KB-23170-00-00 Required per assembly: 1 $274.99 $270.13 - + Add to cart
29	GASKET Part #: 509-23158-L0-00 Required per assembly: 1 $17.98 $14.09 - + Add to cart
30	BOLT, HEXAGON, SOCKET, HEAD Part #: 3D8-23181-00-00 Required per assembly: 1 $9.49 $7.50 - + Add to cart
31	SPRING, FRONT, FORK Part #: 2KB-23141-00-00 Required per assembly: 1 $100.98 $86.40 - + Add to cart
32	SPACER Part #: 2KB-23118-00-00 Required per assembly: 1 $52.99 $45.71 - + Add to cart
33	NUT Part #: 3LC-23357-00-00 Required per assembly: 1 $7.49 $6.31 - + Add to cart
34	BOLT, CAP Part #: 2KB-23111-00-00 Required per assembly: 1 $671.32 $610.29 - + Add to cart
35	O-RING Part #: 3XJ-23147-L0-00 Required per assembly: 1 $8.49 $6.74 - + Add to cart
36	GUIDE, SPRING Part #: 2KB-23117-00-00 Required per assembly: 1 $33.99 $28.15 - + Add to cart
37	BOLT, HEXAGON, SOCKET, HEAD Part #: 91314-08040-00 Required per assembly: 2 $8.49 $5.15 - + Add to cart
38	UNDER BRACKET COMP. Part #: 23P-23340-00-00 Required per assembly: 1 $654.99 $653.35 - + Add to cart
39	BOLT, FLANGE, (4KG) Part #: 95024-08040-00 Required per assembly: 4 $9.49 $6.05 - + Add to cart
40	BEARING (4SR) Part #: 93332-00081-00 Required per assembly: 1 $63.99 - + Add to cart
41	HOLDER, BRAKE, HOSE, 1 Part #: 23P-25875-00-00 Required per assembly: 1 $13.49 $11.31 - + Add to cart
