Frame replacement parts for 2016 Yamaha Raider

OEM Parts Yamaha 2016 Yamaha Raider Frame

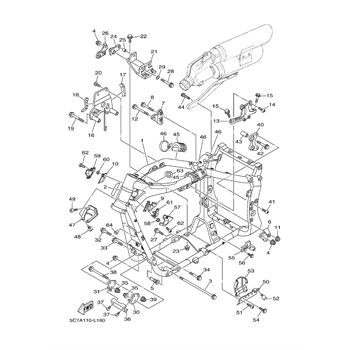

FRAME Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	FRAME COMP. Part #: 5C7-21110-01-00 Required per assembly: 1 $4,823.95 - + Add to cart
2	PROTECTOR, FUEL, TANK Part #: 1D7-24141-00-00 Required per assembly: 1 $9.99 $8.24 - + Add to cart
3	BOLT, FLANGE Part #: 90105-126A6-00 Required per assembly: 1 $23.98 $18.22 - + Add to cart
4	NUT, SELF-LOCKING Part #: 95602-12200-00 Required per assembly: 3 $5.49 $3.75 - + Add to cart
5	BOLT, ENGINE, ADJUSTING Part #: 5PX-21495-01-00 Required per assembly: 1 $33.99 $29.32 - + Add to cart
6	STAY, ENGINE, 2 Part #: 1D7-21315-00-00 Required per assembly: 1 $33.99 $27.78 - + Add to cart
7	STAY, ENGINE, 3 Part #: 5PX-21316-00-00 Required per assembly: 1 $17.48 $14.36 - + Add to cart
8	BOLT, FLANGE Part #: 90105-10737-00 Required per assembly: 2 $12.99 $9.63 - + Add to cart
9	DAMPER 2 Part #: 5C7-2112C-00-00 Required per assembly: 1 $16.98 $13.93 - + Add to cart
10	DAMPER 3 Part #: 5C7-2112D-00-00 Required per assembly: 1 $16.98 $13.93 - + Add to cart
11	NUT, SELF-LOCKING Part #: 95602-10200-00 Required per assembly: 2 $2.70 $2.25 - + Add to cart
12	BOLT, FLANGE Part #: 90105-12689-00 Required per assembly: 1 Not Available
13	STAY, ENGINE, 3 Part #: 5C7-21317-00-00 Required per assembly: 1 $173.99 $162.84 - + Add to cart
14	BOLT, HEX, SOCKET, BUTTON Part #: 90111-10003-00 Required per assembly: 2 $9.49 $6.05 - + Add to cart
15	BOLT, FLANGE Part #: 90105-12018-00 Required per assembly: 2 $12.49 $9.53 - + Add to cart
16	STAY, ENGINE, 6 Part #: 5C7-21319-10-00 Required per assembly: 1 $209.99 $196.51 - + Add to cart
17	SEAL Part #: 1D7-21669-00-00 Required per assembly: 1 $8.99 $7.30 - + Add to cart
18	SEAL Part #: 5C7-21268-00-00 Required per assembly: 1 $9.49 $7.61 - + Add to cart
19	BOLT, FLANGE Part #: 90105-12067-00 Required per assembly: 2 $10.49 $8.04 - + Add to cart
20	BOLT, HEX, SOCKET, BUTTON Part #: 90111-10030-00 Required per assembly: 2 $6.49 $5.28 - + Add to cart
21	STAY, ENGINE, 5 Part #: 1D7-21318-01-00 Required per assembly: 1 $278.99 $273.41 - + Add to cart
22	BOLT, FLANGE Part #: 95817-10030-00 Required per assembly: 3 $9.49 $6.05 - + Add to cart
23	NUT, SELF-LOCKING Part #: 95602-10200-00 Required per assembly: 3 $2.70 $2.25 - + Add to cart
24	STAY 1 Part #: 1D7-2142G-00-00 Required per assembly: 1 $38.99 $34.07 - + Add to cart
25	COLLAR Part #: 90387-12033-00 Required per assembly: 1 $8.49 $6.40 - + Add to cart
26	STAY, ENGINE, 7 Part #: 1D7-21387-00-00 Required per assembly: 1 $20.98 $17.37 - + Add to cart
27	BOLT, FLANGE Part #: 95817-10045-00 Required per assembly: 2 $6.99 $4.45 - + Add to cart
28	BOLT Part #: 90101-12025-00 Required per assembly: 1 $14.49 $11.84 - + Add to cart
29	WASHER, PLATE Part #: 90201-12045-00 Required per assembly: 1 $6.49 $5.50 - + Add to cart
30	STAY 2 Part #: 1D7-2142H-01-00 Required per assembly: 1 Not Available
31	STAY 3 Part #: 1D7-2142J-01-00 Required per assembly: 1 Not Available
32	BOLT, FLANGE Part #: 90105-10049-00 Required per assembly: 1 $8.49 $6.35 - + Add to cart
33	BOLT, FLANGE Part #: 90105-10060-00 Required per assembly: 1 $6.49 $5.35 - + Add to cart
34	BOLT, FLANGE Part #: 90105-10167-00 Required per assembly: 2 $9.49 $7.48 - + Add to cart
35	NUT, SELF-LOCKING Part #: 90185-10008-00 Required per assembly: 4 $8.49 $5.62 - + Add to cart
36	BRACKET, MEMBER, 1 Part #: 1D7-2115L-00-00 Required per assembly: 1 $28.98 $21.30 - + Add to cart
37	BOLT, BUTTON, HEAD Part #: 92014-08020-00 Required per assembly: 2 $9.49 $6.55 - + Add to cart
38	BOLT, FLANGE Part #: 90105-12016-00 Required per assembly: 1 $13.49 $11.07 - + Add to cart
39	NUT, SELF-LOCKING Part #: 90185-12002-00 Required per assembly: 1 $13.49 $9.87 - + Add to cart
40	STAY 1 Part #: 1D7-2137F-00-00 Required per assembly: 1 $47.99 $41.58 - + Add to cart
41	BOLT, HEX, SOCKET, BUTTON Part #: 90111-10009-00 Required per assembly: 2 $8.49 $5.28 - + Add to cart
42	BOLT, FLANGE Part #: 90105-10447-00 Required per assembly: 2 $5.49 $3.70 - + Add to cart
43	COLLAR Part #: 1D7-21116-01-00 Required per assembly: 2 $10.49 $8.44 - + Add to cart
44	BOLT, FLANGE Part #: 90105-10166-00 Required per assembly: 2 $9.49 $6.91 - + Add to cart
45	DAMPER, LOCATING, 3 Part #: 5C7-24183-00-00 Required per assembly: 2 $14.49 $11.64 - + Add to cart
46	CLAMP Part #: 90464-80002-00 Required per assembly: 3 $6.49 $5.16 - + Add to cart
47	STAY 1 Part #: 5C7-2116A-00-00 Required per assembly: 1 $60.99 $53.07 - + Add to cart
48	BOLT, FLANGE Part #: 95027-06014-00 Required per assembly: 4 $0.95 $0.73 - + Add to cart
49	BOLT, HEXAGON, SOCKET, HEAD Part #: 91317-06020-00 Required per assembly: 2 $2.75 $2.07 - + Add to cart
50	BRACKET, HORN Part #: 5C7-21343-00-00 Required per assembly: 1 $110.98 $100.06 - + Add to cart
51	BOLT, HEX, SOCKET, BUTTON Part #: 90111-08002-00 Required per assembly: 2 $11.49 $7.12 - + Add to cart
52	STOPPER, MAIN, STAND Part #: 1D7-27114-00-00 Required per assembly: 1 $5.99 $5.07 - + Add to cart
53	COVER, HORN Part #: 5C7-2317L-00-00 Required per assembly: 1 $63.99 $57.23 - + Add to cart
54	BOLT, FLANGE(4MY) Part #: 95027-06012-00 Required per assembly: 2 $4.20 $3.21 - + Add to cart
55	BRACKET, SWITCH Part #: 5C7-21453-00-00 Required per assembly: 1 $22.98 $18.81 - + Add to cart
56	BOLT, FLANGE Part #: 95022-06016-00 Required per assembly: 1 $3.89 $3.27 - + Add to cart
57	COVER, SIDE, 5 Part #: 5C7-2171E-00-00 Required per assembly: 1 $15.49 $12.20 - + Add to cart
58	COLLAR Part #: 90387-06210-00 Required per assembly: 2 $9.49 $6.03 - + Add to cart
59	COVER, SIDE, 6 Part #: 5C7-2171X-00-00 Required per assembly: 1 $21.98 $16.62 - + Add to cart
