Front Fork replacement parts for 2016 Yamaha Stryker

OEM Parts Yamaha 2016 Yamaha Stryker Front Fork

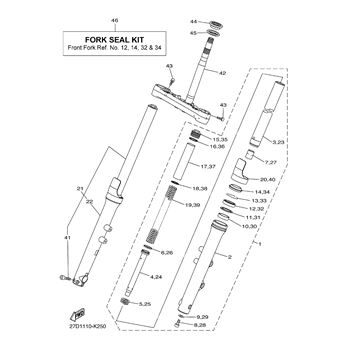

FRONT FORK Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	FRONT FORK ASSEMBLY (L.H Part #: 27D-23102-01-00 Required per assembly: 1 Not Available
2	TUBE, OUTER, (L.H) Part #: 27D-23126-01-00 Required per assembly: 1 $300.99 $295.07 - + Add to cart
3	INNER TUBE COMP 1 Part #: 27D-23110-00-00 Required per assembly: 1 Not Available
4	PISTON, FRONT, FORK Part #: 27D-23171-00-00 Required per assembly: 1 $65.98 $59.30 - + Add to cart
5	SPRING, REBOUND Part #: 3VD-23151-00-00 Required per assembly: 1 Not Available
6	RING, PISTON Part #: 27D-23157-00-00 Required per assembly: 1 $8.49 $6.41 - + Add to cart
7	SPINDLE, TAPER Part #: 27D-23173-00-00 Required per assembly: 1 $33.99 $26.26 - + Add to cart
8	BOLT, HEXAGON, SOCKET, HEAD Part #: 90110-10N52-00 Required per assembly: 1 $8.49 $5.70 - + Add to cart
9	GASKET Part #: 90430-10171-00 Required per assembly: 1 $3.18 $2.65 - + Add to cart
10	METAL, SLIDE, 1 Part #: 3VD-23125-10-00 Required per assembly: 1 $43.99 $33.42 - + Add to cart
11	GUIDE, COVER, UPPER Part #: 3VD-23115-00-00 Required per assembly: 1 $12.99 $11.10 - + Add to cart
12	OIL SEAL Part #: 5VU-23145-00-00 Required per assembly: 1 $32.99 $25.05 - + Add to cart
13	CLIP, OIL, SEAL Part #: 3VD-23156-00-00 Required per assembly: 1 $8.49 $6.41 - + Add to cart
14	SEAL, DUST Part #: 3VD-23144-00-00 Required per assembly: 1 $30.98 $22.20 - + Add to cart
15	FORK BOLT Part #: 27D-2311H-00-00 Required per assembly: 1 $31.98 $23.86 - + Add to cart
16	O-RING Part #: 93210-35N02-00 Required per assembly: 1 $4.45 $3.70 - + Add to cart
17	SPACER Part #: 27D-23118-00-00 Required per assembly: 1 Not Available
18	WASHER, PLATE, (T=16) Part #: 90201-25289-00 Required per assembly: 1 $9.49 $7.05 - + Add to cart
19	SPRING, FRONT, FORK Part #: 27D-23141-00-00 Required per assembly: 1 $41.99 $35.99 - + Add to cart
20	COVER Part #: 4TX-2331G-00-00 Required per assembly: 1 $18.98 $15.36 - + Add to cart
21	FRONT FORK ASSEMBLY (R.H Part #: 27D-23103-01-00 Required per assembly: 1 Not Available
22	TUBE, OUTER, (R.H) Part #: 27D-23136-01-00 Required per assembly: 1 $549.99 $477.53 - + Add to cart
23	INNER TUBE COMP 1 Part #: 27D-23110-00-00 Required per assembly: 1 Not Available
24	PISTON, FRONT, FORK Part #: 27D-23171-00-00 Required per assembly: 1 $65.98 $59.30 - + Add to cart
25	SPRING, REBOUND Part #: 3VD-23151-00-00 Required per assembly: 1 Not Available
26	RING, PISTON Part #: 27D-23157-00-00 Required per assembly: 1 $8.49 $6.41 - + Add to cart
27	SPINDLE, TAPER Part #: 27D-23173-00-00 Required per assembly: 1 $33.99 $26.26 - + Add to cart
28	BOLT, HEXAGON, SOCKET, HEAD Part #: 90110-10N52-00 Required per assembly: 1 $8.49 $5.70 - + Add to cart
29	GASKET Part #: 90430-10171-00 Required per assembly: 1 $3.18 $2.65 - + Add to cart
30	METAL, SLIDE, 1 Part #: 3VD-23125-10-00 Required per assembly: 1 $43.99 $33.42 - + Add to cart
31	GUIDE, COVER, UPPER Part #: 3VD-23115-00-00 Required per assembly: 1 $12.99 $11.10 - + Add to cart
32	OIL SEAL Part #: 5VU-23145-00-00 Required per assembly: 1 $32.99 $25.05 - + Add to cart
33	CLIP, OIL, SEAL Part #: 3VD-23156-00-00 Required per assembly: 1 $8.49 $6.41 - + Add to cart
34	SEAL, DUST Part #: 3VD-23144-00-00 Required per assembly: 1 $30.98 $22.20 - + Add to cart
35	FORK BOLT Part #: 27D-2311H-00-00 Required per assembly: 1 $31.98 $23.86 - + Add to cart
36	O-RING Part #: 93210-35N02-00 Required per assembly: 1 $4.45 $3.70 - + Add to cart
37	SPACER Part #: 27D-23118-00-00 Required per assembly: 1 Not Available
38	WASHER, PLATE, (T=16) Part #: 90201-25289-00 Required per assembly: 1 $9.49 $7.05 - + Add to cart
39	SPRING, FRONT, FORK Part #: 27D-23141-00-00 Required per assembly: 1 $41.99 $35.99 - + Add to cart
40	COVER Part #: 4TX-2331G-00-00 Required per assembly: 1 $18.98 $15.36 - + Add to cart
41	BOLT, HEXAGON, SOCKET, HEAD Part #: 91314-08035-00 Required per assembly: 2 $2.70 $2.51 - + Add to cart
42	UNDER BRACKET COMP. Part #: 27D-23340-00-00 Required per assembly: 1 $408.46 - + Add to cart
43	BOLT, SOCKET Part #: 91314-10025-00 Required per assembly: 4 $9.49 $6.67 - + Add to cart
44	BEARING, SPECIAL Part #: 93399-99932-00 Required per assembly: 1 $69.98 $55.57 - + Add to cart
45	SEAL, STEERING Part #: 3FV-23462-00-00 Required per assembly: 1 $26.98 $21.26 - + Add to cart
46	FORK SEALS KIT Part #: 5VU-W003B-00-00 Required per assembly: 1 $50.99 $45.36 - + Add to cart
