Frame replacement parts for 2016 Yamaha V Star 950

OEM Parts Yamaha 2016 Yamaha V Star 950 Frame

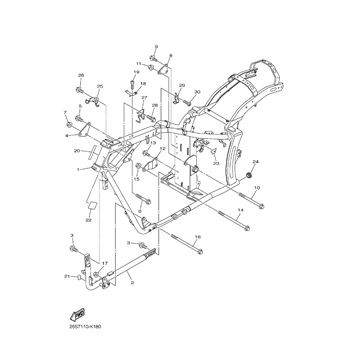

FRAME Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	FRAME COMP. Part #: 5S7-21110-04-00 Required per assembly: 1 $3,592.14 - + Add to cart
2	DOWNTUBE COMP. Part #: 5S7-21280-01-00 Required per assembly: 1 $462.99 $433.34 - + Add to cart
3	BOLT, HEXAGON, SOCKET, HEAD Part #: 90110-10017-00 Required per assembly: 4 $6.49 $5.16 - + Add to cart
4	STAY, ENGINE, 3 Part #: 5S7-21317-00-00 Required per assembly: 1 $27.98 $23.21 - + Add to cart
5	BOLT, WASHER, BASED Part #: 90105-102A3-00 Required per assembly: 2 $11.49 $6.85 - + Add to cart
6	BOLT, FLANGE Part #: 90105-12252-00 Required per assembly: 1 $12.49 $9.59 - + Add to cart
7	NUT, SELF-LOCKING Part #: 90185-12002-00 Required per assembly: 1 $13.49 $9.87 - + Add to cart
8	STAY, ENGINE, 5 Part #: 5S7-21314-00-00 Required per assembly: 1 $22.98 $18.72 - + Add to cart
9	BOLT, WASHER, BASED Part #: 90105-102A3-00 Required per assembly: 2 $11.49 $6.85 - + Add to cart
10	BOLT, FLANGE Part #: 90105-12043-00 Required per assembly: 1 $15.49 $12.52 - + Add to cart
11	NUT, SELF-LOCKING Part #: 90185-12002-00 Required per assembly: 1 $13.49 $9.87 - + Add to cart
12	STAY, ENGINE, 3 Part #: 5S7-21316-00-00 Required per assembly: 1 $28.98 $23.59 - + Add to cart
13	BOLT, WASHER, BASED Part #: 90105-102A3-00 Required per assembly: 2 $11.49 $6.85 - + Add to cart
14	BOLT, FLANGE Part #: 90105-12044-00 Required per assembly: 1 $23.98 $18.81 - + Add to cart
15	NUT, SELF-LOCKING Part #: 90185-12002-00 Required per assembly: 1 $13.49 $9.87 - + Add to cart
16	BOLT, FLANGE Part #: 90105-12069-00 Required per assembly: 1 $26.98 $22.15 - + Add to cart
17	NUT, SELF-LOCKING Part #: 90185-12002-00 Required per assembly: 1 $13.49 $9.87 - + Add to cart
18	BRACKET Part #: 5S7-21158-00-00 Required per assembly: 1 $9.49 $7.54 - + Add to cart
19	BOLT, HEXAGON, SOCKET, HEAD Part #: 91314-06020-00 Required per assembly: 1 $2.64 $2.01 - + Add to cart
20	PROTECTOR Part #: 3D8-2117G-00-00 Required per assembly: 1 Not Available
21	SEAL Part #: 5PX-21268-00-00 Required per assembly: 1 $7.49 $6.11 - + Add to cart
22	SEAL Part #: 1D7-2639G-00-00 Required per assembly: 1 $6.49 $5.38 - + Add to cart
23	SEAL 1 Part #: 5S7-21732-00-00 Required per assembly: 1 $6.49 $5.22 - + Add to cart
24	PLUG Part #: 90338-27007-00 Required per assembly: 2 $6.49 $4.40 - + Add to cart
25	GUIDE, CABLE Part #: 5S7-26279-00-00 Required per assembly: 1 $33.99 $29.42 - + Add to cart
26	BOLT, WASHER, BASED, (JA9) Part #: 90105-06696-00 Required per assembly: 1 $10.49 $6.17 - + Add to cart
27	HOLDER Part #: 5S7-26475-00-00 Required per assembly: 1 $24.98 $20.12 - + Add to cart
28	BOLT, WASHER, BASED, (JA9) Part #: 90105-06696-00 Required per assembly: 1 $10.49 $6.17 - + Add to cart
29	CLAMP Part #: 90462-16005-00 Required per assembly: 1 $5.99 $4.81 - + Add to cart
30	BOLT, BUTTON, HEAD Part #: 92012-06016-00 Required per assembly: 1 $9.49 $6.11 - + Add to cart
