Front Fork replacement parts for 2016 Yamaha V Star 950

OEM Parts Yamaha 2016 Yamaha V Star 950 Front Fork

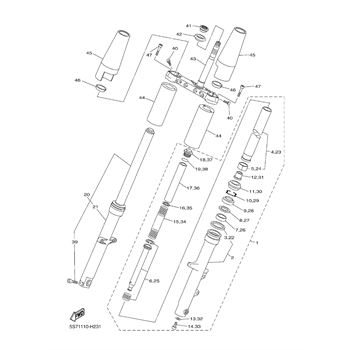

FRONT FORK Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	FRONT FORK ASSEMBLY (LH) Part #: 5S7-23102-01-00 Required per assembly: 1 $666.43 $614.84 - + Add to cart
2	TUBE, OUTER, (LEFT) Part #: 5S7-23126-00-00 Required per assembly: 1 $307.99 $302.45 - + Add to cart
3	GUIDE, BOOT Part #: 5BN-23193-00-00 Required per assembly: 1 $8.49 $6.41 - + Add to cart
4	INNER TUBE COMP1 Part #: 3D8-23110-00-00 Required per assembly: 1 $257.99 $241.74 - + Add to cart
5	PISTON, FRONT, FORK Part #: 5BN-23171-00-00 Required per assembly: 1 $24.98 $19.14 - + Add to cart
6	CYLINDER, COMP, FRONT, FORK Part #: 5S7-23170-00-00 Required per assembly: 1 $141.99 $132.27 - + Add to cart
7	METAL, SLIDE, 1 Part #: 4FM-23125-40-00 Required per assembly: 1 $36.99 $28.76 - + Add to cart
8	WASHER, OIL, SEAL Part #: 36Y-23146-10-00 Required per assembly: 1 $30.98 $21.68 - + Add to cart
9	OIL SEAL Part #: 4EB-23145-01-00 Required per assembly: 1 $31.98 $23.83 - + Add to cart
10	RING, SNAP Part #: 26H-23156-00-00 Required per assembly: 1 $8.49 $6.49 - + Add to cart
11	SEAL, DUST Part #: 4EB-23144-00-00 Required per assembly: 1 $24.98 $19.14 - + Add to cart
12	SPINDLE, TAPER Part #: 4YR-23173-00-00 Required per assembly: 1 $43.99 $32.42 - + Add to cart
13	GASKET Part #: 509-23158-L0-00 Required per assembly: 1 $17.98 $14.09 - + Add to cart
14	BOLT, HEXAGON, SOCKET, HEAD Part #: 3D8-23181-00-00 Required per assembly: 1 $9.49 $7.50 - + Add to cart
15	SPRING, FRONT, FORK Part #: 5S7-23141-00-00 Required per assembly: 1 $69.98 $57.12 - + Add to cart
16	WASHER, SPRING, UPPER Part #: 4DW-23149-40-00 Required per assembly: 1 $7.49 $6.31 - + Add to cart
17	SPACER Part #: 5EL-23118-00-00 Required per assembly: 1 $19.98 $16.74 - + Add to cart
18	BOLT, CAP Part #: 1D0-23111-00-00 Required per assembly: 1 $51.99 $44.27 - + Add to cart
19	O-RING Part #: 43F-23188-10-00 Required per assembly: 1 $8.49 $6.31 - + Add to cart
20	FRONT FORK ASSEMBLY (RH) Part #: 5S7-23103-01-00 Required per assembly: 1 $666.43 $613.84 - + Add to cart
21	TUBE, OUTER, (RIGHT) Part #: 5S7-23136-00-00 Required per assembly: 1 $310.99 $305.18 - + Add to cart
22	GUIDE, BOOT Part #: 5BN-23193-00-00 Required per assembly: 1 $8.49 $6.41 - + Add to cart
23	INNER TUBE COMP1 Part #: 3D8-23110-00-00 Required per assembly: 1 $257.99 $241.74 - + Add to cart
24	PISTON, FRONT, FORK Part #: 5BN-23171-00-00 Required per assembly: 1 $24.98 $19.14 - + Add to cart
25	CYLINDER, COMP, FRONT, FORK Part #: 5S7-23170-00-00 Required per assembly: 1 $141.99 $132.27 - + Add to cart
26	METAL, SLIDE, 1 Part #: 4FM-23125-40-00 Required per assembly: 1 $36.99 $28.76 - + Add to cart
27	WASHER, OIL, SEAL Part #: 36Y-23146-10-00 Required per assembly: 1 $30.98 $21.68 - + Add to cart
28	OIL SEAL Part #: 4EB-23145-01-00 Required per assembly: 1 $31.98 $23.83 - + Add to cart
29	RING, SNAP Part #: 26H-23156-00-00 Required per assembly: 1 $8.49 $6.49 - + Add to cart
30	SEAL, DUST Part #: 4EB-23144-00-00 Required per assembly: 1 $24.98 $19.14 - + Add to cart
31	SPINDLE, TAPER Part #: 4YR-23173-00-00 Required per assembly: 1 $43.99 $32.42 - + Add to cart
32	GASKET Part #: 509-23158-L0-00 Required per assembly: 1 $17.98 $14.09 - + Add to cart
33	BOLT, HEXAGON, SOCKET, HEAD Part #: 3D8-23181-00-00 Required per assembly: 1 $9.49 $7.50 - + Add to cart
34	SPRING, FRONT, FORK Part #: 5S7-23141-00-00 Required per assembly: 1 $69.98 $57.12 - + Add to cart
35	WASHER, SPRING, UPPER Part #: 4DW-23149-40-00 Required per assembly: 1 $7.49 $6.31 - + Add to cart
36	SPACER Part #: 5EL-23118-00-00 Required per assembly: 1 $19.98 $16.74 - + Add to cart
37	BOLT, CAP Part #: 1D0-23111-00-00 Required per assembly: 1 $51.99 $44.27 - + Add to cart
38	O-RING Part #: 43F-23188-10-00 Required per assembly: 1 $8.49 $6.31 - + Add to cart
39	BOLT, HEXAGON, SOCKET, HEAD Part #: 91314-08035-00 Required per assembly: 2 $2.70 $2.51 - + Add to cart
40	BOLT, HEXAGON, SOCKET, HEAD Part #: 91314-10020-00 Required per assembly: 4 $9.49 $6.55 - + Add to cart
41	BEARING, SPECIAL Part #: 93399-99932-00 Required per assembly: 1 $69.98 $55.57 - + Add to cart
42	SEAL, STEERING Part #: 3FV-23462-00-00 Required per assembly: 1 $26.98 $21.26 - + Add to cart
43	UNDER BRACKET COMP. Part #: 5S7-23340-01-00 Required per assembly: 1 $419.99 $418.16 - + Add to cart
44	COVER, UNDER, 1 Part #: 3D8-23123-00-00 Required per assembly: 2 $244.99 $219.24 - + Add to cart
45	COVER, UPPER, 1 Part #: 3D8-23121-00-00 Required per assembly: 2 $306.99 $267.06 - + Add to cart
46	GASKET Part #: 3D8-23163-00-00 Required per assembly: 2 $14.99 $12.32 - + Add to cart
47	BOLT, SPECIAL Part #: 3D8-23394-20-00 Required per assembly: 4 $5.49 $4.60 - + Add to cart
48	FORK SEALS KIT Part #: 4EB-W003B-00-00 Required per assembly: 1 $41.99 $37.74 - + Add to cart
