Frame replacement parts for 2016 Yamaha YXZ1000 EPS

OEM Parts Yamaha 2016 Yamaha YXZ1000 EPS Frame

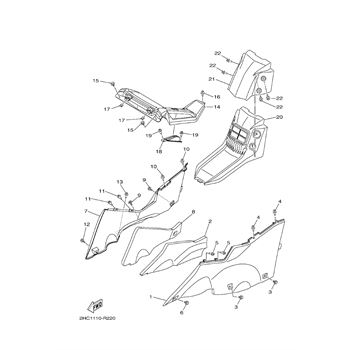

FRAME Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	FRAME COMP. Part #: 2HC-F1110-40-00 Required per assembly: 1 $6,729.66 - + Add to cart
1	FRAME COMP. Part #: 2HC-F1110-50-00 Required per assembly: 1 $6,729.66 - + Add to cart
2	FRAME SUB COMP. Part #: 2HC-F111B-00-00 Required per assembly: 1 $743.09 - + Add to cart
3	BOLT, FLANGE, (JN5) Part #: 95817-08016-00 Required per assembly: 2 $5.49 $4.05 - + Add to cart
4	BOLT, FLANGE Part #: 90105-08867-00 Required per assembly: 2 $1.95 $1.47 - + Add to cart
5	ENG. MOUNT COMP. Part #: 2HC-F110A-00-00 Required per assembly: 1 Not Available
5	ENG. MOUNT COMP. Part #: 2HC-F110A-20-00 Required per assembly: 1 Not Available
6	BOLT, FLANGE Part #: 95812-10016-00 Required per assembly: 2 $10.49 $8.10 - + Add to cart
7	BOLT, FLANGE Part #: 95812-12070-00 Required per assembly: 2 $5.49 $4.13 - + Add to cart
8	NUT, SELF-LOCKING Part #: 90185-12002-00 Required per assembly: 2 $13.49 $9.87 - + Add to cart
9	WASHER, PLAIN Part #: 92990-12200-00 Required per assembly: 4 $9.49 $6.05 - + Add to cart
10	BOLT, FLANGE Part #: 95812-08020-00 Required per assembly: 2 $2.79 $1.66 - + Add to cart
11	BOLT, FLANGE Part #: 95817-08055-00 Required per assembly: 2 $4.21 $2.77 - + Add to cart
12	BOLT, FLANGE Part #: 90105-10176-00 Required per assembly: 3 $13.49 $9.42 - + Add to cart
13	NUT, SELF-LOCKING Part #: 95602-10200-00 Required per assembly: 3 $2.70 $2.25 - + Add to cart
14	BRACKET, SEAT Part #: 2HC-F1349-11-00 Required per assembly: 1 $17.98 $14.94 - + Add to cart
15	BOLT, FLANGE, (4LN) Part #: 95817-08025-00 Required per assembly: 2 $9.49 $6.05 - + Add to cart
16	STAY, MUFFLER Part #: 2HC-F194J-00-00 Required per assembly: 1 $19.98 $16.16 - + Add to cart
17	BOLT, FLANGE Part #: 95812-10016-00 Required per assembly: 2 $10.49 $8.10 - + Add to cart
18	BRKT Part #: 2HC-F115C-01-00 Required per assembly: 1 $11.99 $9.24 - + Add to cart
19	BOLT, FLANGE Part #: 95817-06016-00 Required per assembly: 2 $1.95 $1.47 - + Add to cart
20	TOOL KIT Part #: 5B4-F8100-00-00 Required per assembly: 1 $47.99 $35.47 - + Add to cart
21	GAUGE, AIR Part #: 1XD-F811A-00-00 Required per assembly: 1 $7.49 $6.86 - + Add to cart
22	POUCH Part #: 1P0-F8186-01-00 Required per assembly: 1 $2.89 $2.62 - + Add to cart
