Gearshift Drum replacement parts for 2017 Honda CB500FA

OEM Parts Honda 2017 Honda CB500FA Gearshift Drum

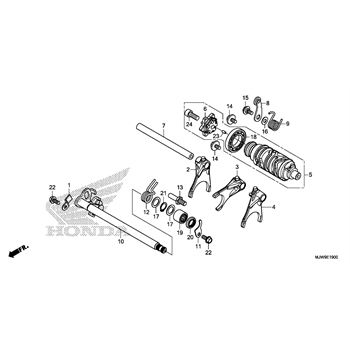

GEARSHIFT DRUM Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

E 19
001	PLATE Part #: 14623-MV1-000 Required per assembly: 1 $5.85 $5.24 - + Add to cart
002	FORK, R., GEARSHIFT Part #: 24211-MGZ-J00 Required per assembly: 1 $26.15 $22.61 - + Add to cart
003	FORK Part #: 24212-MGZ-J00 Required per assembly: 1 $25.87 $22.34 - + Add to cart
004	FORK, L., GEARSHIFT Part #: 24213-MGZ-J00 Required per assembly: 1 $25.80 $22.30 - + Add to cart
005	DRUM, GEARSHIFT Part #: 24310-MJW-J00 Required per assembly: 1 $83.56 $66.64 - + Add to cart
006	CENTER, SHIFT, DRUM Part #: 24315-MJE-D00 Required per assembly: 1 $47.04 $37.51 - + Add to cart
007	SHAFT Part #: 24321-MAS-000 Required per assembly: 1 $24.42 $19.76 - + Add to cart
008	STOPPER Part #: 24430-MGZ-J00 Required per assembly: 1 $9.42 $8.01 - + Add to cart
009	SPRING Part #: 24435-MJE-D00 Required per assembly: 1 $2.79 $2.60 - + Add to cart
010	SPINDLE, GEARSHIFT Part #: 24610-MGZ-J00 Required per assembly: 1 $48.56 $38.73 - + Add to cart
011	PLATE, SPINDLE Part #: 24612-MAL-600 Required per assembly: 1 $10.65 $9.13 - + Add to cart
012	SPRING, SHIFT, RETURN Part #: 24651-MAS-E00 Required per assembly: 1 $7.07 $6.23 - + Add to cart
013	PIN Part #: 24652-MGZ-J00 Required per assembly: 1 $2.72 $2.52 - + Add to cart
014	BOLT-WASHER (6X12) Part #: 90021-MGZ-J00 Required per assembly: 2 $4.74 - + Add to cart
015	PIVOT Part #: 90023-MGZ-J00 Required per assembly: 1 $1.67 $1.54 - + Add to cart
016	WASHER, DRUM, STOPPER Part #: 90417-360-000 Required per assembly: 1 $2.73 $2.54 - + Add to cart
017	WASHER (14MM) Part #: 90451-155-000 Required per assembly: 2 $5.15 $4.68 - + Add to cart
018	BEARING (25X47X8) Part #: 91007-MGS-D21 Required per assembly: 1 $18.90 $15.76 - + Add to cart
019	BEARING (14X22X16) Part #: 91106-MCF-003 Required per assembly: 1 $12.36 $10.01 - + Add to cart
020	OIL SEAL (14X22X5) Part #: 91203-KSP-911 Required per assembly: 1 $2.96 $2.75 - + Add to cart
021	CIRCLIP (14MM) Part #: 94510-14000 Required per assembly: 1 $2.06 $1.90 - + Add to cart
022	BOLT, FLANGE, (6X14) Part #: 95701-06014-00 Required per assembly: 2 $2.04 $1.88 - + Add to cart
023	ROLLER (4X8) Part #: 96220-40080 Required per assembly: 1 $1.57 $1.45 - + Add to cart
024	BOLT, SOCKET, (8X20) Part #: 96600-08020-10 Required per assembly: 1 $3.10 $2.89 - + Add to cart
