Frame replacement parts for 2017 Honda CB500X

OEM Parts Honda 2017 Honda CB500X Frame

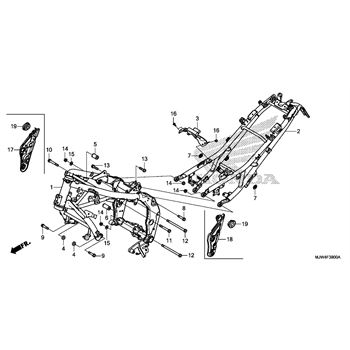

FRAME Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

F 39
001	FRAME NH303M(MAT AXIS GRAY METALLIC) Part #: 50100-MJW-CM0ZA Required per assembly: 1 $715.83 - + Add to cart
002	RAIL, SEAT, NH303M, (MAT, AXIS, GRAY, METALLIC) Part #: 50240-MGZ-J82ZA Required per assembly: 1 $481.64 - + Add to cart
003	BRACKET, FUEL, TANK Part #: 50295-MGZ-J00 Required per assembly: 1 $13.65 $11.17 - + Add to cart
004	COLLAR, A, ENG, HGR Part #: 50351-MGZ-J01 Required per assembly: 2 $5.22 - + Add to cart
005	COLLAR, B, R., ENG, HGR Part #: 50353-MGZ-J00 Required per assembly: 1 $7.76 $7.23 - + Add to cart
006	COLLAR, B, L., ENG, HGR Part #: 50354-MGZ-J00 Required per assembly: 1 $8.91 $8.21 - + Add to cart
007	GROMMET, A/CLNR, HSG Part #: 83551-300-000 Required per assembly: 2 Note: Sold in multiples of 5 only $4.58 - + Add to cart
008	BOLT, FLANGE, (10X45) Part #: 90101-KTB-000 Required per assembly: 2 $4.96 - + Add to cart
009	BOLT, FLANGE, (10X40) Part #: 90101-MGZ-J00 Required per assembly: 2 $3.03 $2.81 - + Add to cart
010	BOLT, FLANGE, (10X65) Part #: 90102-MGZ-J00 Required per assembly: 1 $2.96 $2.75 - + Add to cart
011	BOLT, FLANGE, (10X75) Part #: 90103-MGZ-J00 Required per assembly: 1 $3.27 $3.04 - + Add to cart
012	BOLT, FLANGE, (10X146), (DR) Part #: 90104-KYJ-900 Required per assembly: 2 $3.93 - + Add to cart
013	BOLT, FLANGE, (10X35) Part #: 90168-S2A-010 Required per assembly: 2 $5.02 $4.94 - + Add to cart
014	NUT, FLANGE, (10MM) Part #: 94050-10000 Required per assembly: 4 $2.60 $2.41 - + Add to cart
015	WASHER, PLAIN, (10MM) Part #: 94101-10800 Required per assembly: 2 $2.87 $2.67 - + Add to cart
016	BOLT, FLANGE, (6X14) Part #: 95701-06014-08 Required per assembly: 4 $2.63 $2.44 - + Add to cart
017	COVER, R., PIVOT Part #: 50401-MJW-DK0 Required per assembly: 1 $15.54 $12.72 - + Add to cart
018	COVER, L., PIVOT Part #: 50451-MJW-DK0 Required per assembly: 1 $16.25 $13.30 - + Add to cart
019	GROM, SPEAKER, PANEL Part #: 64266-MG9-770 Required per assembly: 2 $4.30 $3.91 - + Add to cart
