Gearshift Drum replacement parts for 2017 Honda CRF450X

OEM Parts Honda 2017 Honda CRF450X Gearshift Drum

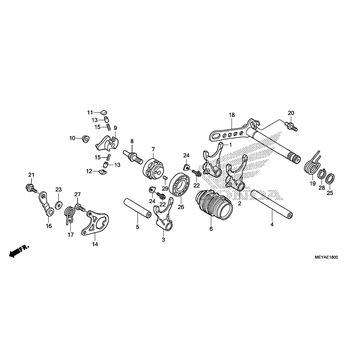

GEARSHIFT DRUM Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

E 18
001	FORK, R., GEARSHIFT Part #: 24211-MEY-670 Required per assembly: 1 $78.76 $63.76 - + Add to cart
002	FORK, L., GEARSHIFT Part #: 24221-MEY-671 Required per assembly: 1 $75.57 $61.16 - + Add to cart
003	FORK Part #: 24231-MEY-671 Required per assembly: 1 $75.57 $61.16 - + Add to cart
004	SHAFT A Part #: 24241-MEY-670 Required per assembly: 1 $20.37 $16.50 - + Add to cart
005	SHAFT, B, SHIFT, FORK Part #: 24242-MEN-730 Required per assembly: 1 $14.82 $11.99 - + Add to cart
006	DRUM, GEARSHIFT Part #: 24311-MEY-670 Required per assembly: 1 $77.56 $62.79 - + Add to cart
007	CENTER Part #: 24312-KA3-741 Required per assembly: 1 $75.05 $62.58 - + Add to cart
008	PIN, SHIFTER Part #: 24315-HA0-000 Required per assembly: 1 $14.60 $12.17 - + Add to cart
009	SHIFTER, DRUM Part #: 24321-MEB-670 Required per assembly: 1 $39.97 $32.35 - + Add to cart
010	COLLAR, SHIFTER Part #: 24322-MM4-000 Required per assembly: 1 $6.15 $5.47 - + Add to cart
011	PAWL, A, RATCHET Part #: 24324-KA3-711 Required per assembly: 1 $15.32 $12.77 - + Add to cart
012	PAWL, B, RATCHET Part #: 24325-KA3-711 Required per assembly: 1 $15.32 $12.77 - + Add to cart
013	PLUNGER, PAWL Part #: 24326-KBH-901 Required per assembly: 2 $6.98 $6.16 - + Add to cart
014	PLATE, GUIDE Part #: 24328-MEB-670 Required per assembly: 1 $13.95 $11.30 - + Add to cart
015	SPRING, PAWL, PLUNGER Part #: 24329-KA3-740 Required per assembly: 2 $3.60 - + Add to cart
016	STOPPER, DRUM Part #: 24430-KA3-740 Required per assembly: 1 $25.36 $20.53 - + Add to cart
017	SPRING Part #: 24435-KA4-770 Required per assembly: 1 $5.83 $5.23 - + Add to cart
018	SPINDLE, GEARSHIFT Part #: 24610-MEY-670 Required per assembly: 1 $77.75 $62.93 - + Add to cart
019	SPRING Part #: 24651-MEB-671 Required per assembly: 1 $5.10 $4.64 - + Add to cart
020	PIN Part #: 24652-HA0-000 Required per assembly: 1 $9.87 $8.49 - + Add to cart
021	PIVOT Part #: 90022-MG8-000 Required per assembly: 1 $3.51 $3.19 - + Add to cart
022	BOLT (6X14) Part #: 90071-MF5-000 Required per assembly: 2 $4.25 - + Add to cart
023	WASHER (6.1MM) Part #: 90435-HB3-000 Required per assembly: 1 $4.10 $3.73 - + Add to cart
024	PLATE Part #: 90441-KRM-840 Required per assembly: 2 $1.68 $1.55 - + Add to cart
025	WASHER (14MM) Part #: 90451-155-000 Required per assembly: 1 $5.15 $4.68 - + Add to cart
026	BEARING (6805LU) Part #: 91008-MEY-671 Required per assembly: 1 $19.52 $15.81 - + Add to cart
027	BOLT, HEX., (6X16) Part #: 93301-06016-0A Required per assembly: 2 $2.48 $2.29 - + Add to cart
028	CIRCLIP (14MM) Part #: 94510-14000 Required per assembly: 1 $2.06 $1.90 - + Add to cart
029	ROLLER (4X8) Part #: 96220-40080 Required per assembly: 1 $1.57 $1.45 - + Add to cart
