Gearshift Drum (2) replacement parts for 2017 Honda CTX700D

OEM Parts Honda 2017 Honda CTX700D Gearshift Drum (2)

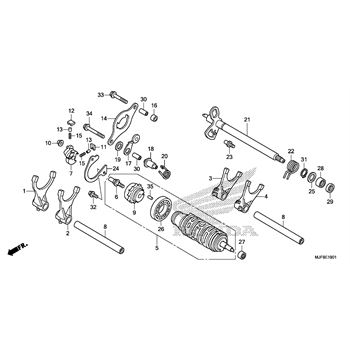

GEARSHIFT DRUM (2) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

E 1901
001	FORK, R., GEARSHIFT Part #: 24211-MGS-D20 Required per assembly: 1 $107.94 $87.38 - + Add to cart
002	FORK, L., GEARSHIFT Part #: 24212-MGS-D20 Required per assembly: 1 $114.53 $92.70 - + Add to cart
003	FORK, R., GEARSHIFT Part #: 24213-MGS-D20 Required per assembly: 1 $98.86 $88.31 - + Add to cart
004	FORK, L., GEARSHIFT Part #: 24214-MGS-D20 Required per assembly: 1 $98.86 $88.31 - + Add to cart
005	DRUM, GEARSHIFT Part #: 24310-MGS-D22 Required per assembly: 1 $248.80 $198.42 - + Add to cart
006	PIN, SHIFTER Part #: 24315-HL4-000 Required per assembly: 1 $9.91 $8.78 - + Add to cart
007	SHIFTER, DRUM Part #: 24321-KT8-030 Required per assembly: 1 $60.12 $48.68 - + Add to cart
008	SHAFT Part #: 24321-MAS-000 Required per assembly: 2 $24.42 $19.76 - + Add to cart
009	CENTER, SHIFT, DRUM Part #: 24322-MGE-D01 Required per assembly: 1 $41.84 $33.87 - + Add to cart
010	COLLAR, SHIFTER Part #: 24322-MM4-000 Required per assembly: 1 $6.15 $5.47 - + Add to cart
011	PAWL, A, RATCHET Part #: 24324-KA3-711 Required per assembly: 1 $15.32 $12.77 - + Add to cart
012	PAWL, B, RATCHET Part #: 24325-KA3-711 Required per assembly: 1 $15.32 $12.77 - + Add to cart
013	PLUNGER, PAWL Part #: 24326-KBH-901 Required per assembly: 2 $6.98 $6.16 - + Add to cart
014	PLATE, CHANGE, GUIDE Part #: 24328-MGS-D20 Required per assembly: 1 $11.52 $9.81 - + Add to cart
015	SPRING, PAWL, PLUNGER Part #: 24329-KA3-740 Required per assembly: 2 $3.60 - + Add to cart
016	COLLAR Part #: 24329-MGS-D20 Required per assembly: 1 $4.57 - + Add to cart
017	STOPPER, DRUM Part #: 24430-MGE-000 Required per assembly: 1 $17.53 $14.18 - + Add to cart
018	COLLAR Part #: 24434-MGS-D20 Required per assembly: 1 $10.65 $9.13 - + Add to cart
019	COLLAR, DRUM, STOPPER, SIDE Part #: 24435-MGE-000 Required per assembly: 1 $3.29 - + Add to cart
020	SPRING Part #: 24435-MGS-D20 Required per assembly: 1 $5.94 $5.31 - + Add to cart
021	SPINDLE, GEARSHIFT Part #: 24610-MGS-D20 Required per assembly: 1 $200.53 $162.31 - + Add to cart
022	SPRING Part #: 24651-MGS-D20 Required per assembly: 1 $11.42 $9.74 - + Add to cart
023	PIN Part #: 24652-HA0-000 Required per assembly: 1 $9.87 $8.49 - + Add to cart
024	PLATE Part #: 24655-MGS-D30 Required per assembly: 1 $4.76 - + Add to cart
025	WASHER (14MM) Part #: 90433-KE1-000 Required per assembly: 1 $2.98 $2.77 - + Add to cart
026	BEARING (25X47X8) Part #: 91007-MGS-D21 Required per assembly: 1 $18.90 $15.76 - + Add to cart
029	OIL SEAL (14X22X5) Part #: 91203-KK3-830 Required per assembly: 1 $5.18 $4.71 - + Add to cart
030	PIN, DOWEL, (8X20) Part #: 94301-08200 Required per assembly: 2 $3.21 $2.99 - + Add to cart
031	CIRCLIP (14MM) Part #: 94510-14000 Required per assembly: 1 $2.06 $1.90 - + Add to cart
032	BOLT, FLANGE, (6X14) Part #: 95701-06014-00 Required per assembly: 2 $2.04 $1.88 - + Add to cart
033	BOLT, FLANGE, (6X35) Part #: 95701-06035-00 Required per assembly: 1 $2.87 $2.67 - + Add to cart
034	BOLT, FLANGE, (6X55) Part #: 95701-06055-00 Required per assembly: 1 $3.14 $2.91 - + Add to cart
035	ROLLER (4X8) Part #: 96220-40080 Required per assembly: 1 $1.57 $1.45 - + Add to cart
