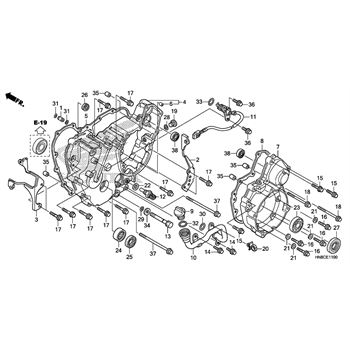

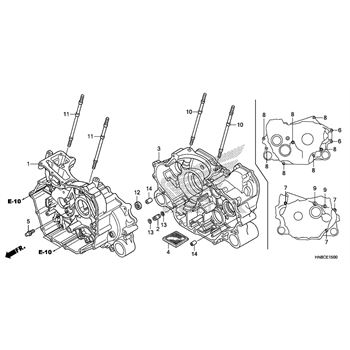

Crankcase replacement parts for 2017 Honda TRX680FA

OEM Parts Honda 2017 Honda TRX680FA Crankcase

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

001	CRANKCASE, FR. Part #: 11100-HN8-030 Required per assembly: 1 $660.05 $549.28 - + Add to cart
002	PIN, OIL, GUIDE, (8MM) Part #: 11145-HN8-010 Required per assembly: 1 $9.84 $8.46 - + Add to cart
003	CRANKCASE, RR. Part #: 11200-HN8-020 Required per assembly: 1 $620.40 $502.19 - + Add to cart
004	SCREEN, OIL, FILTER Part #: 15421-HR3-A40 Required per assembly: 1 $14.11 $11.25 - + Add to cart
005	PIN, STATOR, STOPPER Part #: 26326-HN8-000 Required per assembly: 1 $5.30 $5.28 - + Add to cart
006	BOLT, FLANGE, (6X35) Part #: 90004-GHB-700 Required per assembly: 2 $5.46 $4.96 - + Add to cart
007	BOLT, FLANGE, (6X40) Part #: 90004-GHB-710 Required per assembly: 3 $5.46 $4.96 - + Add to cart
008	BOLT, FLANGE, (6X55) Part #: 90004-GHB-740 Required per assembly: 7 $5.21 $4.74 - + Add to cart
009	BOLT, FLANGE, (6X80) Part #: 90004-GHB-790 Required per assembly: 2 $6.47 $5.88 - + Add to cart
010	BOLT, STUD, (10X265) Part #: 90032-HN8-000 Required per assembly: 2 $14.76 $11.95 - + Add to cart
011	BOLT B (10X265) Part #: 90033-HN8-000 Required per assembly: 2 $15.11 $12.59 - + Add to cart
012	OIL SEAL (9X18X7) Part #: 91201-HN8-003 Required per assembly: 1 $4.22 $3.84 - + Add to cart
013	O-RING (5X1.7) Part #: 91305-MG7-003 Required per assembly: 2 $4.18 $3.80 - + Add to cart
014	PIN, DOWEL, (8X14) Part #: 94301-08140 Required per assembly: 2 $3.21 $2.99 - + Add to cart
