2017 Honda SXS1000M5D Pioneer 1000-5 Deluxe - Floor Cover

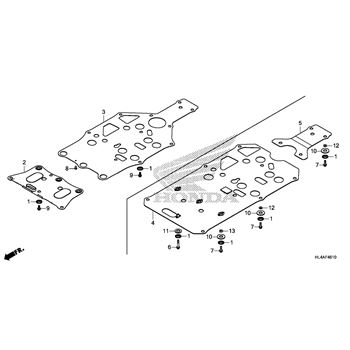

FLOOR COVER Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
F 0710
001

CAP

Part #: 31652-HP0-A01 Required per assembly: 1
$2.58
$2.10
-
+
Add to cart
002

NUT

Part #: 31653-HP0-A01 Required per assembly: 1
$2.41
$2.23
-
+
Add to cart
003

SOCKET, ACCESSORY

Part #: 31655-HP0-A01 Required per assembly: 1
$28.42
$22.66
-
+
Add to cart
004

COVER, FR., FLOOR

Part #: 64100-HL4-AJ0 Required per assembly: 1
$481.82
-
+
Add to cart
005

STAY, A, FR., FLOOR

Part #: 64101-HL4-A00 Required per assembly: 2
$6.38
$6.04
-
+
Add to cart
006

STAY, B, FR., FLOOR

Part #: 64102-HL4-A01 Required per assembly: 1
$17.58
$15.98
-
+
Add to cart
007

LID, FR., FLOOR, *NH1*, (BLACK)

Part #: 64105-HL4-A00ZA Required per assembly: 1
$7.15
$6.52
-
+
Add to cart
008

COVER, PEDAL, *NH1*, (BLACK)

Part #: 64110-HL4-A00ZA Required per assembly: 1
$7.93
$6.98
-
+
Add to cart
017

SCREW, PAN, (6X14)

Part #: 90106-KBV-000 Required per assembly: 8
$5.28
$4.80
-
+
Add to cart
018

SCREW, PAN, (6X16)

Part #: 90117-MGS-D30 Required per assembly: 2
$5.14
$4.67
-
+
Add to cart
021

NUT

Part #: 90305-SH3-000 Required per assembly: 2
$7.78
$7.47
-
+
Add to cart
022
Honda 90653-HC4-900 Clip, Splash, Guard, (Each)

CLIP, SPLASH, GUARD, (EACH)

Part #: 90653-HC4-900 Required per assembly: 4
$1.67
$1.52
-
+
Add to cart
023

NUT, CLIP, (5MM)

Part #: 90677-KAN-961 Required per assembly: 4
$5.46
$4.96
-
+
Add to cart
