Oil Cooler replacement parts for 2017 Honda SXS700M4D

OEM Parts Honda 2017 Honda SXS700M4D Oil Cooler

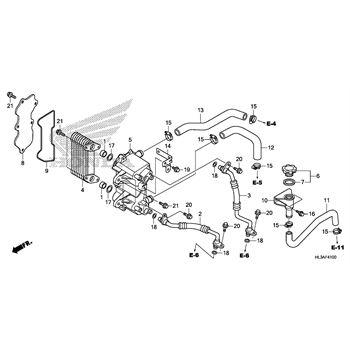

OIL COOLER Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

F 41
001	COLLAR (20MM) Part #: 15328-MV9-670 Required per assembly: 2 ~~$5.14~~ $4.67 - + Add to cart
002	HOSE, A, OIL Part #: 15530-HL3-A01 Required per assembly: 1 ~~$107.36~~ $85.62 - + Add to cart
003	HOSE, B, OIL Part #: 15540-HL3-A01 Required per assembly: 1 ~~$126.38~~ $100.79 - + Add to cart
004	CORE, OIL, COOLER Part #: 15600-HL3-A01 Required per assembly: 1 ~~$224.33~~ $187.02 - + Add to cart
005	BODY, OIL, COOLER Part #: 15610-HL3-A00 Required per assembly: 1 ~~$95.32~~ $77.15 - + Add to cart
006	CAP, OIL, FILLER Part #: 15610-P2A-000 Required per assembly: 1 ~~$32.62~~ $29.65 - + Add to cart
007	GASKET, OIL, FILLER Part #: 15613-PC6-000 Required per assembly: 1 ~~$11.26~~ $10.77 - + Add to cart
008	COVER, OIL, COOLER Part #: 15620-HL3-A00 Required per assembly: 1 ~~$7.31~~ $6.33 - + Add to cart
009	GASKET, OIL, COOLER Part #: 15621-HL3-A00 Required per assembly: 1 ~~$3.17~~ $2.94 - + Add to cart
010	NECK, OIL, FILLER Part #: 15622-HL1-A00 Required per assembly: 1 ~~$12.84~~ $10.83 - + Add to cart
011	TUBE, FILLER, NECK Part #: 15623-HL3-A00 Required per assembly: 1 ~~$7.35~~ $6.69 - + Add to cart
012	HOSE Part #: 19510-HL3-A00 Required per assembly: 1 $5.10 - + Add to cart
013	HOSE Part #: 19511-HL3-A00 Required per assembly: 1 ~~$6.08~~ $5.41 - + Add to cart
014	STAY Part #: 19516-HL3-A00 Required per assembly: 1 ~~$6.44~~ $5.91 - + Add to cart
015	CLAMP (22-29MM) Part #: 19517-ML7-691 Required per assembly: 6 ~~$13.47~~ $11.24 - + Add to cart
016	BOLT, FLANGE, (6MM) Part #: 90111-162-000 Required per assembly: 2 ~~$3.91~~ $3.55 - + Add to cart
017	O-RING (19.8X2.4) Part #: 91310-PH7-000 Required per assembly: 2 ~~$4.72~~ $4.29 - + Add to cart
018	O-RING (11X2.4) Part #: 91314-HN6-000 Required per assembly: 4 ~~$2.86~~ $2.65 - + Add to cart
019	BOLT, FLANGE, (6X10) Part #: 95701-06010-00 Required per assembly: 1 ~~$2.29~~ $2.12 - + Add to cart
020	BOLT, FLANGE, (6X18) Part #: 95701-06018-00 Required per assembly: 4 ~~$2.63~~ $2.44 - + Add to cart
021	BOLT, FLANGE, (6X20) Part #: 95701-06020-00 Required per assembly: 11 ~~$2.63~~ $2.44 - + Add to cart
