Switch - Cable - Mirror (2) replacement parts for 2017 Honda VFR1200XD

OEM Parts Honda 2017 Honda VFR1200XD Switch - Cable - Mirror (2)

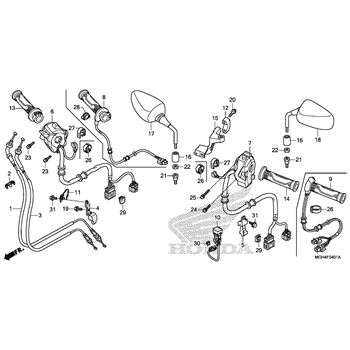

SWITCH - CABLE - MIRROR (2) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

F 0401
001	CABLE, A, THROTTLE Part #: 17910-MGH-D21 Required per assembly: 1 $32.63 $26.42 - + Add to cart
002	CLIP, THROTTLE, WIRE Part #: 17915-MET-641 Required per assembly: 1 $3.91 $3.55 - + Add to cart
003	CABLE, B, THROTTLE Part #: 17920-MGH-D21 Required per assembly: 1 $32.63 $26.42 - + Add to cart
004	CLAMP, R., WIRE Part #: 35107-MGH-640 Required per assembly: 1 $7.12 $6.27 - + Add to cart
005	CLAMP, L., WIRE Part #: 35108-MGH-640 Required per assembly: 1 $4.96 - + Add to cart
006	SWITCH ASSEMBLY Part #: 35130-MGH-H31 Required per assembly: 1 $171.41 $138.74 - + Add to cart
007	SWITCH ASSY. Part #: 35200-MGH-H32 Required per assembly: 1 $231.94 $187.75 - + Add to cart
010	SW, TORQUE, CONTROL Part #: 38640-MGH-H21 Required per assembly: 1 $57.26 $46.36 - + Add to cart
011	GUIDE Part #: 50161-MGH-D20 Required per assembly: 1 $23.14 $18.73 - + Add to cart
012	HOLDER (UPPER) Part #: 53131-KTA-910 Required per assembly: 1 $7.86 $6.85 - + Add to cart
013	GRIP, ASSEMBLY, THROTTLE Part #: 53140-MGE-000 Required per assembly: 1 $34.16 $27.65 - + Add to cart
014	GRIP, L., HANDLE Part #: 53166-MGE-000 Required per assembly: 1 $20.56 $17.14 - + Add to cart
015	HOLDER, L., MIRROR Part #: 53192-MGH-D20 Required per assembly: 1 $64.22 $52.50 - + Add to cart
016	COVER, LOCK, NUT Part #: 88130-MGH-640 Required per assembly: 2 $8.96 $7.84 - + Add to cart
017	MIRROR, R. Part #: 88210-MGH-640 Required per assembly: 1 $183.81 $148.78 - + Add to cart
018	MIRROR, L. Part #: 88220-MGH-D20 Required per assembly: 1 $183.81 $148.78 - + Add to cart
019	BOLT, FLANGE, (6X12) Part #: 90013-GHB-610 Required per assembly: 1 $3.29 $3.06 - + Add to cart
020	BOLT, FLANGE, (6X25) Part #: 90013-GHB-670 Required per assembly: 2 $3.29 $3.06 - + Add to cart
021	BOLT, ADAPTER, (10MM) Part #: 90105-MGH-640 Required per assembly: 2 $5.15 - + Add to cart
022	NUT, A, HEX., (12MM) Part #: 90301-MGH-640 Required per assembly: 2 $5.74 $5.15 - + Add to cart
023	SCREW-WASHER (5X20) Part #: 90507-MGE-640 Required per assembly: 2 $2.44 $2.26 - + Add to cart
024	SCREW-WASHER (5X25) Part #: 90508-MGE-D00 Required per assembly: 1 $2.32 $2.15 - + Add to cart
025	SCREW-WASHER (5X30) Part #: 90509-MGE-D00 Required per assembly: 1 $2.42 $2.25 - + Add to cart
027	CLIP, WIRE, HARNESS Part #: 90683-ZX2-003 Required per assembly: 2 $7.57 $6.08 - + Add to cart
029	HOLDER, BRACKET Part #: 91554-SM4-003 Required per assembly: 2 $7.83 $7.42 - + Add to cart
030	CLIP, CONNECTOR Part #: 91565-S0X-003 Required per assembly: 1 $4.62 $4.20 - + Add to cart
031	BOLT, FLANGE, (6X10) Part #: 96001-06010-07 Required per assembly: 2 $2.63 $2.44 - + Add to cart
