Transmission replacement parts for 2017 Honda VT1300CX

OEM Parts Honda 2017 Honda VT1300CX Transmission

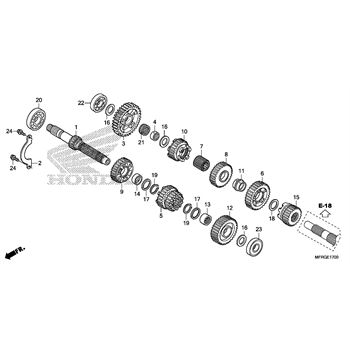

TRANSMISSION Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

E 17
001	MAINSHAFT (20T) Part #: 23210-MEA-670 Required per assembly: 1 $189.88 $153.70 - + Add to cart
002	PLATE A Part #: 23212-MCH-000 Required per assembly: 1 $6.92 $6.11 - + Add to cart
003	GEAR (38T) Part #: 23421-MEA-A50 Required per assembly: 1 $133.19 $107.81 - + Add to cart
004	COLLAR Part #: 23422-MCH-000 Required per assembly: 1 $10.28 $8.81 - + Add to cart
005	GEAR (26T/33T) Part #: 23431-MFR-670 Required per assembly: 1 $156.48 $126.66 - + Add to cart
006	GEAR (32T) Part #: 23441-MEA-A50 Required per assembly: 1 $122.24 $98.95 - + Add to cart
007	COLLAR, SPLINE Part #: 23442-MCH-010 Required per assembly: 1 $22.26 $18.55 - + Add to cart
008	GEAR (30T) Part #: 23461-MFR-670 Required per assembly: 1 $130.66 $105.76 - + Add to cart
009	GEAR (37T) Part #: 23471-MFR-670 Required per assembly: 1 $132.89 $107.58 - + Add to cart
010	GEAR (28T) Part #: 23481-MFR-670 Required per assembly: 1 $141.18 $114.27 - + Add to cart
011	COLLAR Part #: 23482-MCH-000 Required per assembly: 1 $26.78 $21.68 - + Add to cart
012	GEAR (34T) Part #: 23491-MFR-670 Required per assembly: 1 $127.23 $102.98 - + Add to cart
013	COLLAR (28X22.7) Part #: 23492-MCH-000 Required per assembly: 1 $16.92 $13.70 - + Add to cart
014	COLLAR (28X13) Part #: 23495-MM5-000 Required per assembly: 1 $25.14 $20.95 - + Add to cart
015	GEAR (23T) Part #: 23501-MFR-670 Required per assembly: 1 $122.67 $99.30 - + Add to cart
016	WASHER Part #: 52143-KZ3-860 Required per assembly: 3 $4.06 $3.16 - + Add to cart
017	WASHER (28X34X1.5) Part #: 90452-MR7-000 Required per assembly: 2 $6.90 $6.10 - + Add to cart
018	WASHER (30X38X1) Part #: 90501-752-A10 Required per assembly: 1 $5.42 $4.93 - + Add to cart
019	CIRCLIP (28MM) Part #: 90603-MN4-000 Required per assembly: 2 $5.10 $4.64 - + Add to cart
020	BEARING (63/28) Part #: 91001-KY0-891 Required per assembly: 1 $25.34 $20.72 - + Add to cart
021	BEARING (26X30X13) Part #: 91001-MCH-003 Required per assembly: 1 $12.09 $9.79 - + Add to cart
022	BEARING (63/22) Part #: 91002-KY4-901 Required per assembly: 1 $28.25 $23.55 - + Add to cart
023	BEARING (63/22U) Part #: 91002-MCH-003 Required per assembly: 1 $30.08 $24.35 - + Add to cart
024	BOLT, FLANGE, (6X16) Part #: 95701-06016-00 Required per assembly: 2 Note: 95701-06016-08* $2.63 $2.44 - + Add to cart
