Chassis Electrical Equipment replacement parts for 2017 Kawasaki Ninja ZX -10R

OEM Parts Kawasaki 2017 Kawasaki Ninja ZX 10R Chassis Electrical Equipment

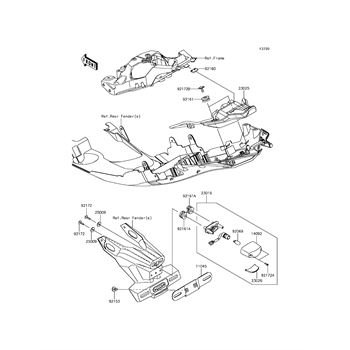

Chassis Electrical Equipment Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

130	BOLT-FLANGED, 5X18 Part #: 130BA0518 Required per assembly: 1 Note: Sold in multiples of 5 only $1.53 $1.19 - + Add to cart
130A	BOLT-FLANGED, 6X12 Part #: 130BA0612 Required per assembly: 1 Note: Sold in multiples of 5 only $1.79 $1.32 - + Add to cart
130B	BOLT-FLANGED, 6X14 Part #: 130BA0614 Required per assembly: 1 Note: Sold in multiples of 5 only $1.27 $1.02 - + Add to cart
130C	BOLT-FLANGED, 6X16 Part #: 130BA0616 Required per assembly: 1 Note: Sold in multiples of 5 only $1.27 $1.02 - + Add to cart
130D	BOLT-FLANGED, 6X25 Part #: 130BA0625 Required per assembly: 2 $1.02 - + Add to cart
11056	BRACKET, RELAY Part #: 11056-7706 Required per assembly: 1 $5.59 $4.34 - + Add to cart
11056A	BRACKET, ECU Part #: 11056-7717 Required per assembly: 1 $48.79 $44.62 - + Add to cart
11056B	BRACKET, FUSE Part #: 11056-7809 Required per assembly: 1 $13.08 $11.05 - + Add to cart
11056C	BRACKET, FRAME, LH Part #: 11056-7828 Required per assembly: 1 $5.84 $4.52 - + Add to cart
11056D	BRACKET, CROSS, FRAME Part #: 11056-7829 Required per assembly: 1 $6.40 $4.94 - + Add to cart
11056E	BRACKET, HARNESS Part #: 11056-7955 Required per assembly: 1 $7.56 $6.57 - + Add to cart
11056F	BRACKET, CONNECTOR, RR Part #: 11056-7959 Required per assembly: 1 $5.79 $4.49 - + Add to cart
11057	BRACKET, HORN Part #: 11057-0017 Required per assembly: 1 $21.25 $17.79 - + Add to cart
11057A	BRACKET, SHIFTER &GEAR, POSITION Part #: 11057-0068 Required per assembly: 1 $11.01 $9.37 - + Add to cart
14093	COVER, RELAY Part #: 14093-0476 Required per assembly: 1 $32.44 $30.10 - + Add to cart
23062	BRACKET-COMP, CONNECTOR Part #: 23062-0873 Required per assembly: 1 $40.16 $36.95 - + Add to cart
26006	FUSE, 15A Part #: 26006-0001 Required per assembly: 4 $6.27 $4.85 - + Add to cart
26006A	FUSE, 10A Part #: 26006-1078 Required per assembly: 8 $3.54 - + Add to cart
26006B	FUSE, 30A Part #: 26006-1080 Required per assembly: 1 $5.01 $3.92 - + Add to cart
26011	WIRE-LEAD, BATTERY(+) Part #: 26011-0921 Required per assembly: 1 $30.76 $28.09 - + Add to cart
26011A	WIRE-LEAD, BATTERY(-) Part #: 26011-0943 Required per assembly: 1 $47.49 $43.45 - + Add to cart
26012	BATTERY, YTZ10S, 12V, 8.6AH Part #: 26012-0564 Required per assembly: 1 Not Available
26031	HARNESS, MAIN Part #: 26031-2114 Required per assembly: 1 Note: CN Not Available
26031A	HARNESS, MAIN Part #: 26031-2116 Required per assembly: 1 Note: CA $1,630.34 - + Add to cart
27002	RELAY-ASSEMBLY, HEAD, LAMP Part #: 27002-0027 Required per assembly: 1 $43.42 $39.84 - + Add to cart
27002A	RELAY ASSEMBLY Part #: 27002-1086 Required per assembly: 4 $37.62 $34.70 - + Add to cart
27002B	RELAY, ASSEMBLY, SIGNAL, LAMP Part #: 27002-1097 Required per assembly: 1 $48.33 $44.20 - + Add to cart
27003	HORN Part #: 27003-0113 Required per assembly: 1 $85.34 $78.37 - + Add to cart
39156	PAD, HEAT, GUARD Part #: 39156-0389 Required per assembly: 1 $2.21 $1.63 - + Add to cart
39156A	PAD, DIAG., CONNECTOR Part #: 39156-1886 Required per assembly: 1 $2.21 $1.63 - + Add to cart
39156B	PAD, DIAG/DONGLE Part #: 39156-1993 Required per assembly: 1 $37.06 $34.20 - + Add to cart
49018	DIODE Part #: 49018-0005 Required per assembly: 1 $48.05 $43.95 - + Add to cart
49018A	DIODE Part #: 49018-0007 Required per assembly: 2 $48.24 $44.12 - + Add to cart
53044	TRIM Part #: 53044-0018 Required per assembly: 1 $4.78 $3.76 - + Add to cart
56030	LABEL, FUSE1 Part #: 56030-0955 Required per assembly: 1 $4.50 $3.56 - + Add to cart
56030A	LABEL, FUSE2 Part #: 56030-0957 Required per assembly: 1 $4.01 $3.19 - + Add to cart
92015	NUT, FLANGED, 6MM Part #: 92015-1367 Required per assembly: 1 $3.79 $2.66 - + Add to cart
92015A	NUT, WELL, 5MM Part #: 92015-1757 Required per assembly: 1 $7.52 $6.54 - + Add to cart
92037	CLAMP, SPEED, L=80.5 Part #: 92037-1903 Required per assembly: 1 $8.08 $7.00 - + Add to cart
92072	BAND, 202X3.6 Part #: 92072-0782 Required per assembly: 1 $2.05 $1.52 - + Add to cart
92072A	BAND, L=148 Part #: 92072-3768 Required per assembly: 1 Note: Sold in multiples of 5 only $4.04 $3.20 - + Add to cart
92154	BOLT, FLANGED, 6X16 Part #: 92154-0551 Required per assembly: 1 $1.71 $1.31 - + Add to cart
92154A	BOLT, SOCKET, 6X10 Part #: 92154-0774 Required per assembly: 1 $1.71 $1.31 - + Add to cart
92154B	BOLT, FLANGED, 6X14 Part #: 92154-1864 Required per assembly: 4 $2.23 $1.65 - + Add to cart
92171	CLAMP, CLIP, DIA=20 Part #: 92171-0068 Required per assembly: 2 Note: (US,CN ONLY) Sold in multiples of 5 only $2.89 $2.08 - + Add to cart
92171A	CLAMP, BRAKE, HOSE Part #: 92171-0316 Required per assembly: 2 Note: ( - ER650AE032724) $3.99 $3.08 - + Add to cart
92171B	CLAMP Part #: 92171-1279 Required per assembly: 1 $9.44 $8.11 - + Add to cart
92172	SCREW, TAPPING, 5X16 Part #: 92172-0175 Required per assembly: 3 Note: Sold in multiples of 5 only $1.85 $1.39 - + Add to cart
92172A	SCREW, TAPPING, 5X10 Part #: 92172-0262 Required per assembly: 2 Note: Sold in multiples of 10 only $1.41 $1.09 - + Add to cart
92172B	SCREW, TAPPING, 5X10 Part #: 92172-0335 Required per assembly: 1 Note: Sold in multiples of 5 only $2.23 $1.65 - + Add to cart
92173	CLAMP Part #: 92173-0736 Required per assembly: 1 $5.19 $4.05 - + Add to cart
92173A	CLAMP Part #: 92173-0742 Required per assembly: 1 $9.43 $8.10 - + Add to cart
92173B	CLAMP Part #: 92173-0791 Required per assembly: 1 $11.46 $9.74 - + Add to cart
92173C	CLAMP Part #: 92173-0861 Required per assembly: 1 $3.11 $2.22 - + Add to cart
92173D	CLAMP, 68MM Part #: 92173-1009 Required per assembly: 2 $4.85 $3.80 - + Add to cart
92173E	CLAMP, RUBBER, PLATE Part #: 92173-1229 Required per assembly: 4 $4.07 $3.23 - + Add to cart
