Floor And Rocker Panels - A17daa57a5 (101009) replacement parts for 2017 Polaris ACE 570 EFI (R15)

OEM Parts Polaris 2017 Polaris ACE 570 EFI (R15) Floor And Rocker Panels - A17daa57a5 (101009)

FLOOR AND ROCKER PANELS - A17DAA57A5 (101009) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

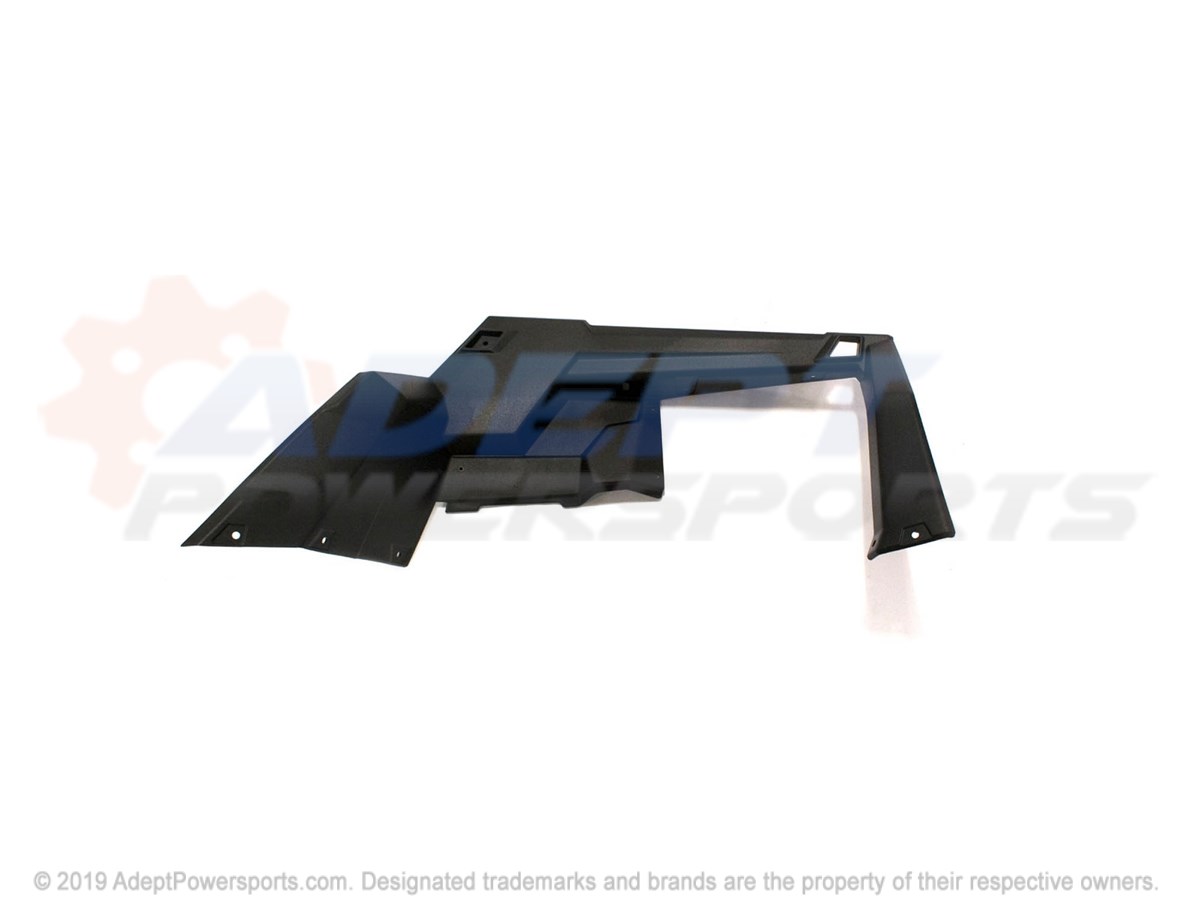

1	ROCKER-LH, BLK Part #: 5451170-070 Required per assembly: 1 Currently Not Available
2	ROCKER-RH, BLK Part #: 5450069-070 Required per assembly: 1 Currently Not Available

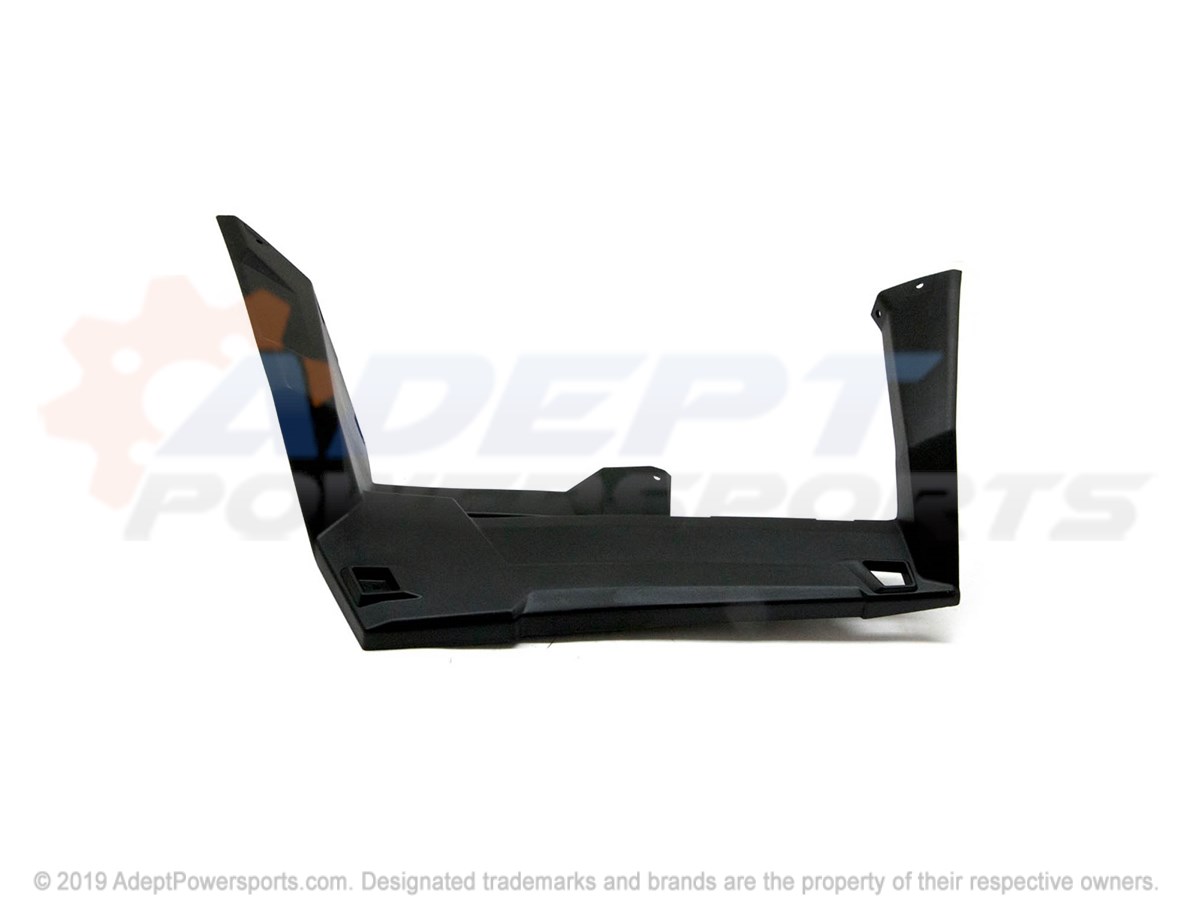

3	PANEL-FLOOR, REAR, BLK Part #: 5453173-070 Required per assembly: 1 Currently Not Available

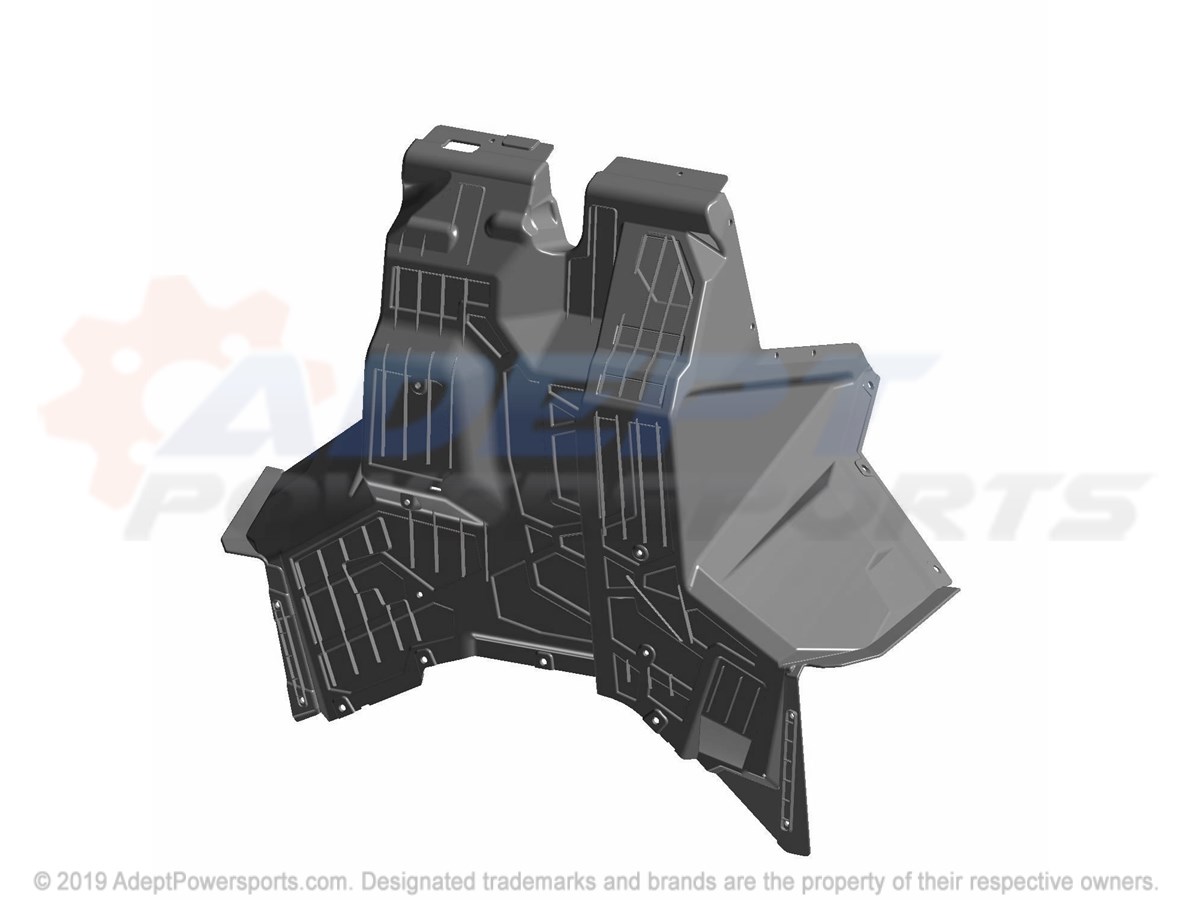

4	FLOOR-MAIN, BLK Part #: 5452995-070 Required per assembly: 1 Currently Not Available
5	FLOOR-UPPER, MOD, BLK Part #: 5453984-070 Required per assembly: 1 Currently Not Available
5	FLOOR-UPPER, MOD, BLK Part #: 5453984-070 Required per assembly: 1 Currently Not Available
6	RIVET Part #: 7661855 Required per assembly: 15 ~~$2.99~~ $1.73 - + Add to cart
6	RIVET Part #: 7661855 Required per assembly: 15 ~~$2.99~~ $1.73 - + Add to cart
6	RIVET Part #: 7661855 Required per assembly: 15 ~~$2.99~~ $1.73 - + Add to cart
7	SCREW Part #: 7519650 Required per assembly: 19 Currently Not Available
7	SCREW Part #: 7519650 Required per assembly: 19 Currently Not Available
7	SCREW Part #: 7519650 Required per assembly: 19 Currently Not Available
7	SCREW Part #: 7519650 Required per assembly: 19 Currently Not Available
7	SCREW Part #: 7519650 Required per assembly: 19 Currently Not Available
7	SCREW Part #: 7519650 Required per assembly: 19 Currently Not Available
8	NUT, U-TYPE Part #: 7547674 Required per assembly: 6 ~~$2.99~~ $1.73 - + Add to cart
8	NUT, U-TYPE Part #: 7547674 Required per assembly: 6 ~~$2.99~~ $1.73 - + Add to cart
9	GROMMET-FLOOR, ACE Part #: 5416248 Required per assembly: 1 Currently Not Available
