Splash Shields - A17daa57f5 (49Atvshield15ace570) replacement parts for 2017 Polaris ACE 570 EFI Euro (R09)

OEM Parts Polaris 2017 Polaris ACE 570 EFI Euro (R09) Splash Shields - A17daa57f5 (49Atvshield15ace570)

SPLASH SHIELDS - A17DAA57F5 (49ATVSHIELD15ACE570) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

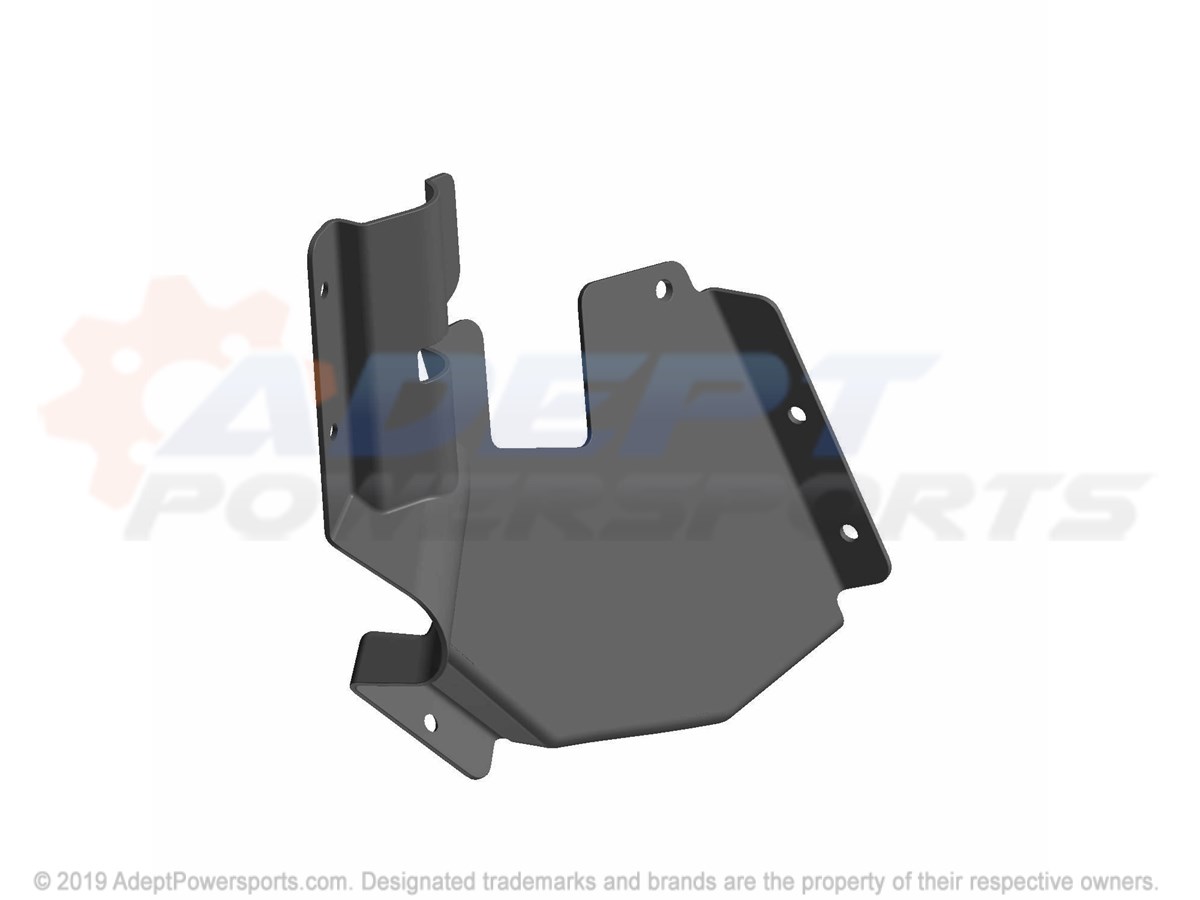

1	SHIELD-SPLASH, LH, BLK Part #: 5451191-070 Required per assembly: 1 Currently Not Available

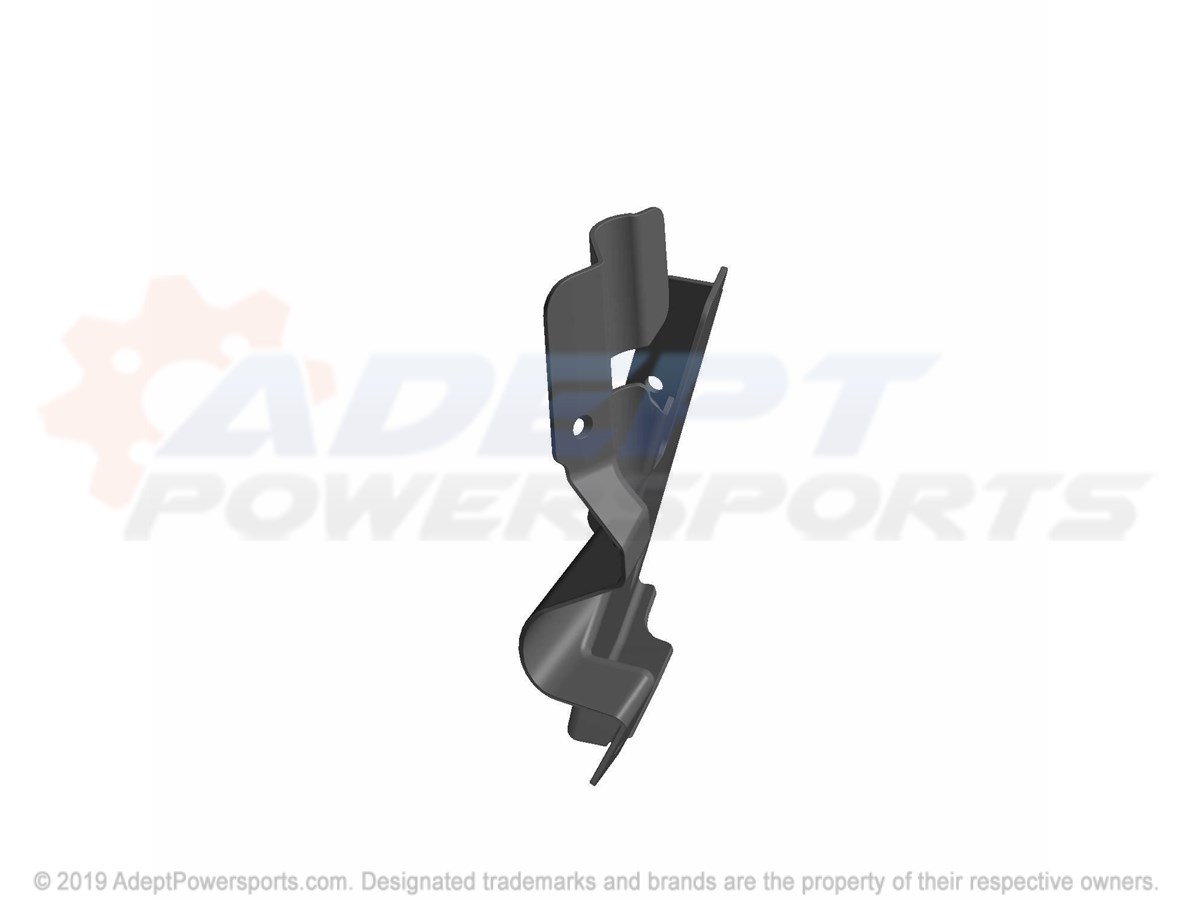

2	SHIELD-SPLASH, RH, BLK Part #: 5451192-070 Required per assembly: 1 Currently Not Available

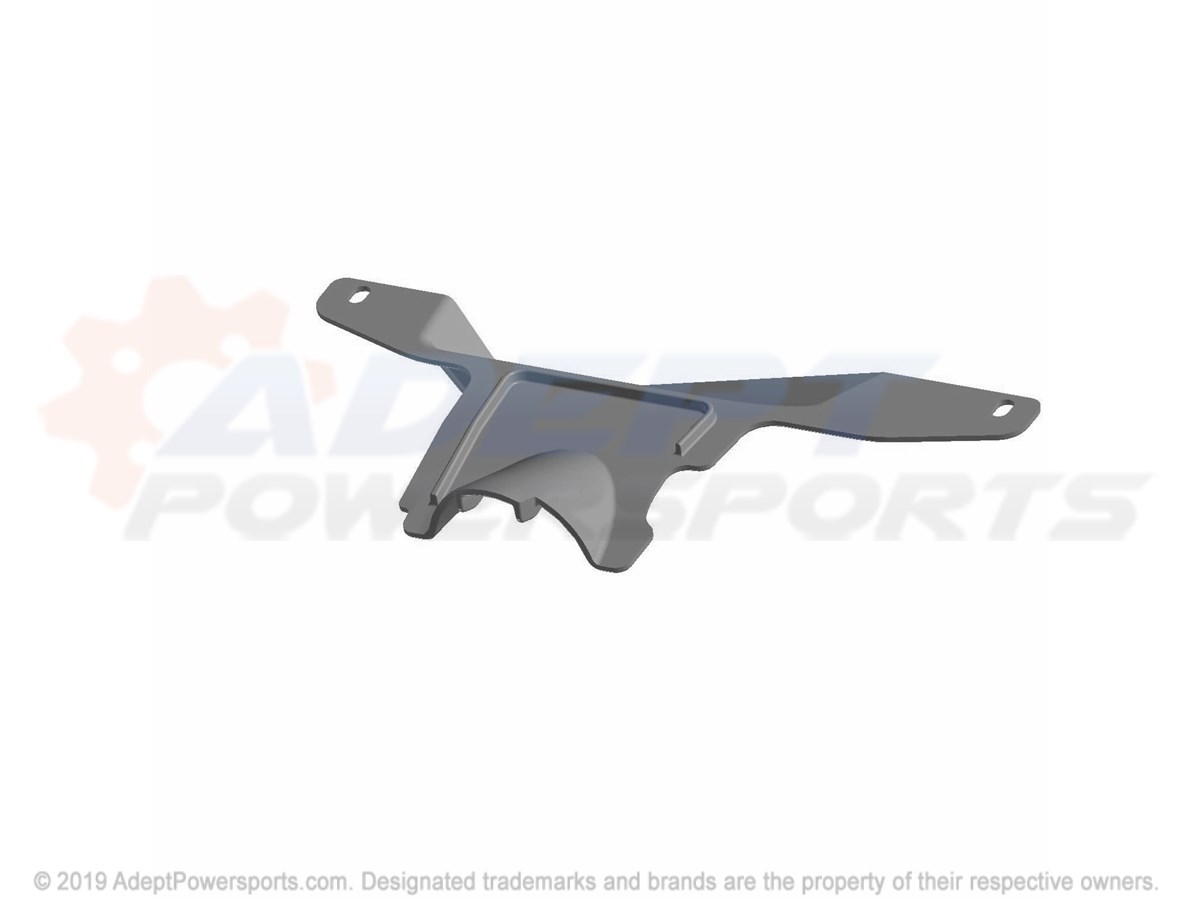

3	DEFLECTOR-AIR, FRONT, BLK Part #: 5451193-070 Required per assembly: 1 Currently Not Available

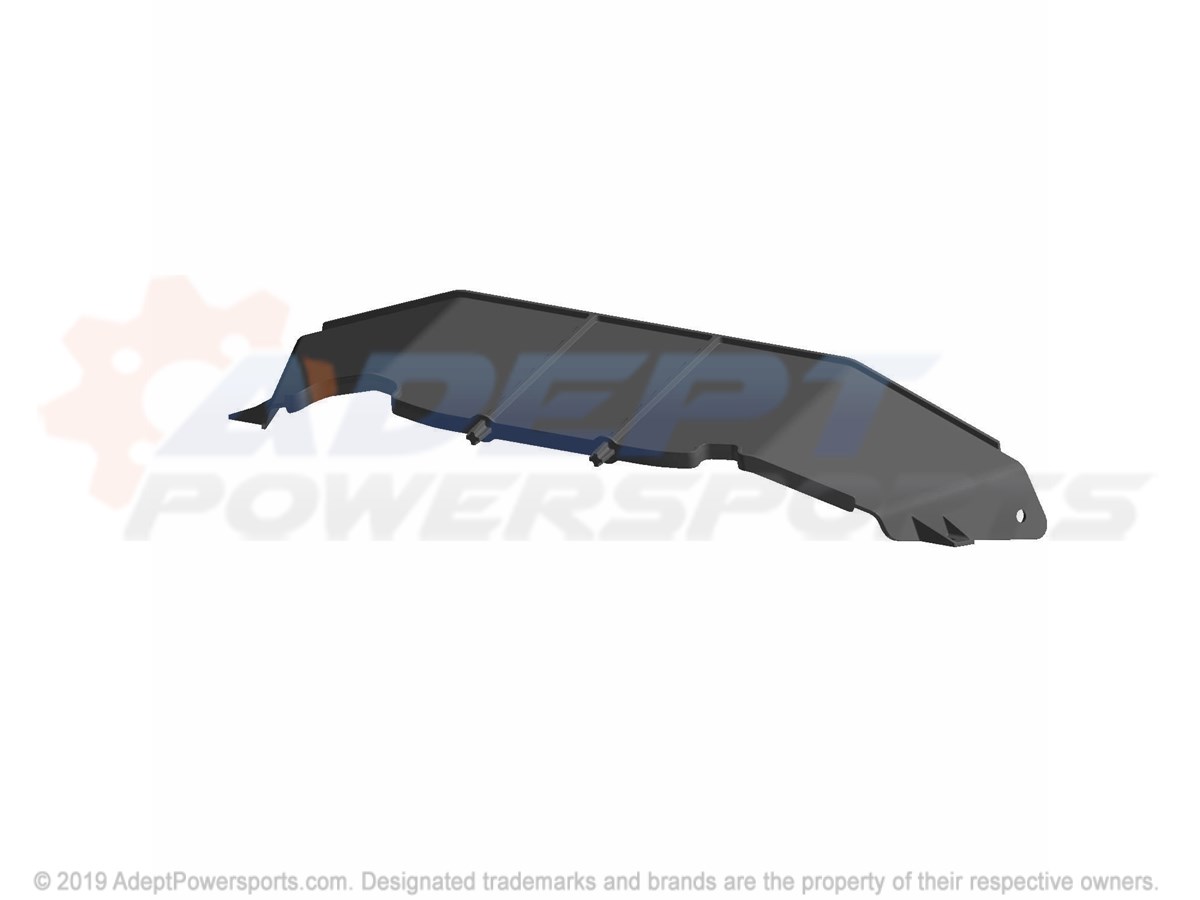

4	SHIELD-SPLASH, FRONT, BLK Part #: 5451210-070 Required per assembly: 1 Currently Not Available
5	SCREW Part #: 7519650 Required per assembly: 2 Currently Not Available
6	RIVET Part #: 7661855 Required per assembly: 10 ~~$2.99~~ $1.73 - + Add to cart
6	RIVET Part #: 7661855 Required per assembly: 10 ~~$2.99~~ $1.73 - + Add to cart
6	RIVET Part #: 7661855 Required per assembly: 10 ~~$2.99~~ $1.73 - + Add to cart
6	RIVET Part #: 7661855 Required per assembly: 10 ~~$2.99~~ $1.73 - + Add to cart
6	RIVET Part #: 7661855 Required per assembly: 10 ~~$2.99~~ $1.73 - + Add to cart
6	RIVET Part #: 7661855 Required per assembly: 10 ~~$2.99~~ $1.73 - + Add to cart
7	SEAL-BULB .375 350CM Part #: 5521697-350 Currently Not Available
