Rear Prop Shaft - A17s6e57a1 replacement parts for 2017 Polaris 570 Sportsman 6X6 (R10)

OEM Parts Polaris 2017 Polaris 570 Sportsman 6X6 (R10) Rear Prop Shaft - A17s6e57a1

REAR PROP SHAFT - A17S6E57A1 Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

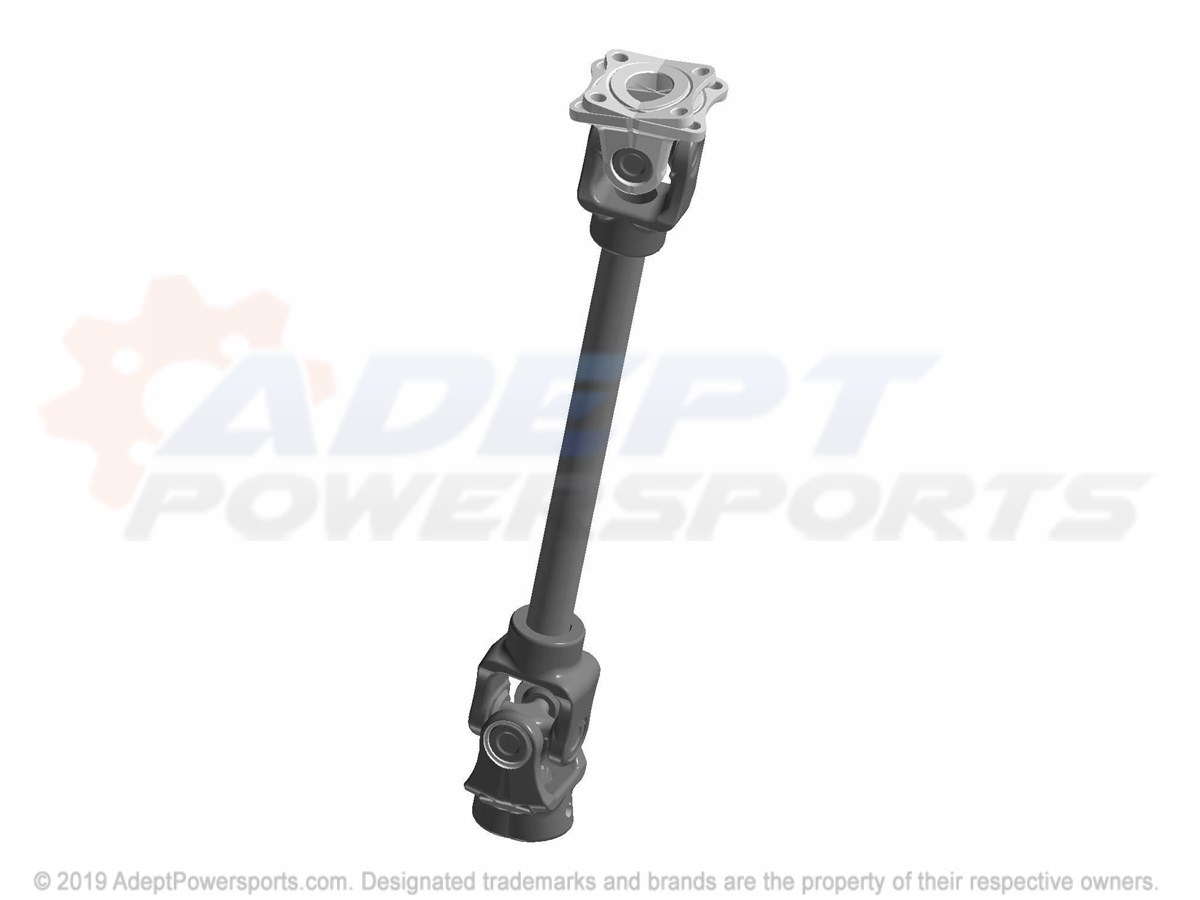

1	ASM-PROPSHAFT, SPMN, 6X6, REAR Part #: 1333645 Required per assembly: 1 Currently Not Available
2	YOKE, PROP, SHAFT, REAR Part #: 1350039 Required per assembly: 1 Note: YOKE-REAR PROP SHAFT Currently Not Available
3	KIT, CROSS, AND, BEARING Part #: 2202015 Required per assembly: 2 Currently Not Available
3	KIT, CROSS, AND, BEARING Part #: 2202015 Required per assembly: 2 Currently Not Available
4	YOKE, FLANGED Part #: 1332679 Required per assembly: 1 Currently Not Available
5	SCR-M8X1.25X20 HXSOC-DRILOC202 Part #: 7519211 Required per assembly: 4 Currently Not Available
