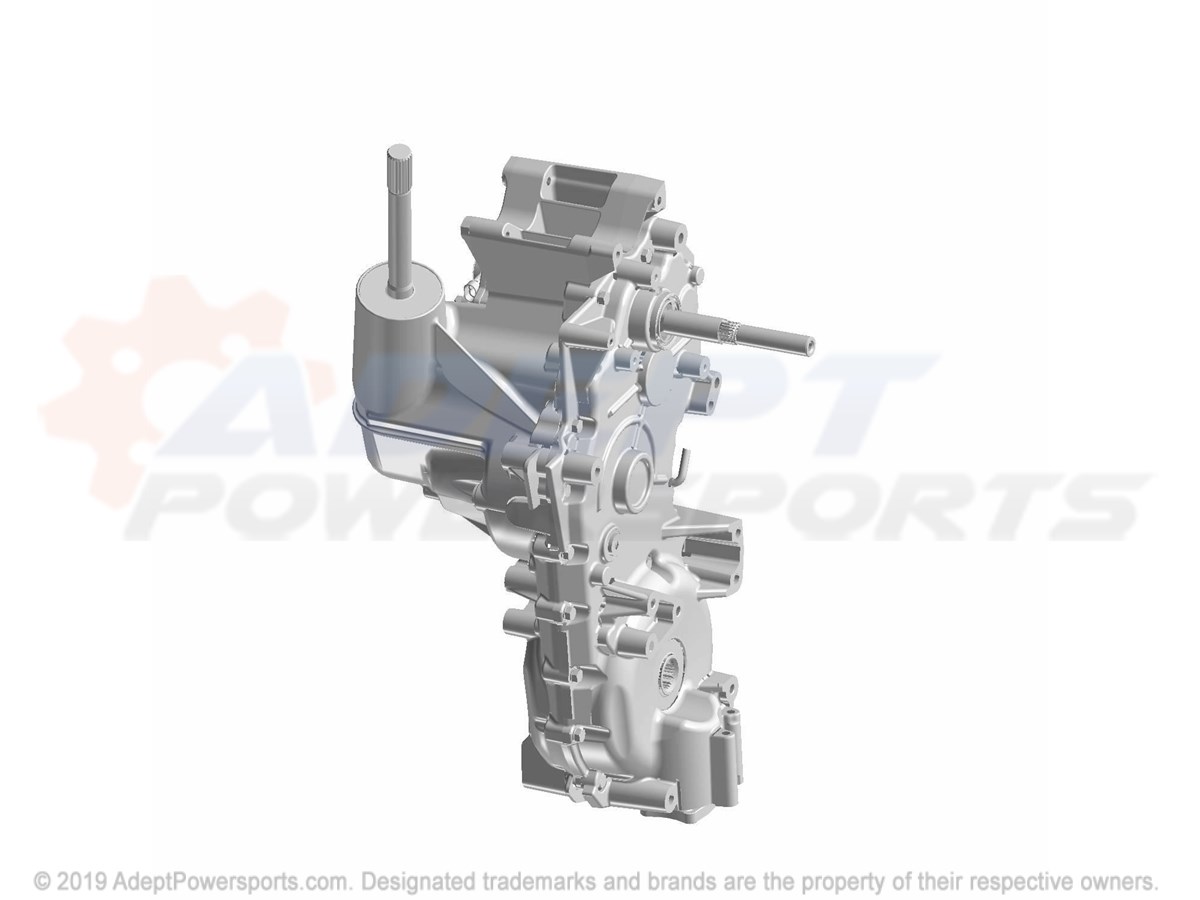

MAIN GEARCASE - A17S6S57C1/CM Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	ASM-TRANSMISSION, PDS, 6X6 Part #: 1333498 Required per assembly: 1 Note: INCL. ALL Currently Not Available
2	PLUG-HEX, HOLLOW, W/O-RING, (FB) Part #: 3233794 Required per assembly: 1 Note: Plug, Hex, Hollow w/O-Ring Currently Not Available
3	SCREW Part #: 3233749 Required per assembly: 2 Note: Screw Tapping Currently Not Available
4	SCREW Part #: 3234086 Required per assembly: 5 Currently Not Available
4	SCREW Part #: 3234086 Required per assembly: 5 Currently Not Available
5	SCREW Part #: 3234114 Required per assembly: 20 Currently Not Available
5	SCREW Part #: 3234114 Required per assembly: 20 Currently Not Available
6	SCREW Part #: 3234247 Required per assembly: 9 Currently Not Available
6	SCREW Part #: 3234247 Required per assembly: 9 Currently Not Available
6	SCREW Part #: 3234247 Required per assembly: 9 Currently Not Available
7	NUT, FLEXLOC Part #: 3233961 Required per assembly: 1 Currently Not Available
8	NUT-HEX M16 X 2.0 Part #: 3234776 Required per assembly: 1 Currently Not Available
9	WASHER Part #: 3233855 Required per assembly: 1 Currently Not Available
10	WASHER Part #: 3234091 Required per assembly: 2 Note: Washer, Cup Currently Not Available
10	WASHER Part #: 3234091 Required per assembly: 2 Note: Washer, Cup Currently Not Available
11	WASHER-LOCKING 17 X 30 Part #: 3234777 Required per assembly: 1 Currently Not Available
12	PIN, DOWEL Part #: 3233432 Required per assembly: 2 Currently Not Available
13	PIN, DOWEL Part #: 3233247 Required per assembly: 2 Currently Not Available
13	PIN, DOWEL Part #: 3233247 Required per assembly: 2 Currently Not Available
14	RING, SNAP Part #: 3233106 Required per assembly: 1 Currently Not Available
15	RING, RETAINING Part #: 3233834 Required per assembly: 1 Currently Not Available
16	RING, RETAINING Part #: 3233306 Required per assembly: 2 Note: Ring, Retaining Currently Not Available
16	RING, RETAINING Part #: 3233306 Required per assembly: 2 Note: Ring, Retaining Currently Not Available
17	RING, RETAINING Part #: 3233364 Required per assembly: 2 Currently Not Available
17	RING, RETAINING Part #: 3233364 Required per assembly: 2 Currently Not Available
18	RING-RETAINING Part #: 3233699 Required per assembly: 1 Currently Not Available
19	RING, RETAINING Part #: 3234067 Required per assembly: 1 Currently Not Available
20	RING, RETAINING Part #: 3234269 Required per assembly: 1 Currently Not Available
21	RING, RETAINING Part #: 3234090 Required per assembly: 2 Currently Not Available
21	RING, RETAINING Part #: 3234090 Required per assembly: 2 Currently Not Available
22	RING, RETAINING Part #: 3234158 Required per assembly: 1 Currently Not Available
23	RING, RETAINING Part #: 3234336 Required per assembly: 1 Currently Not Available
24	RING-RETAINING, INTERN, DHO, STZD Part #: 3235849 Required per assembly: 1 Currently Not Available
25	SHAFT-INPUT, 39T, REM, BOSS Part #: 3235782 Required per assembly: 1 Currently Not Available
26	WASHER Part #: 3233176 Required per assembly: 1 Currently Not Available
27	SHIM Part #: 3233611 Required per assembly: 1 ~~$30.79~~ $22.99 - + Add to cart
28	SHIM Part #: 3234272 Required per assembly: 1 Currently Not Available
29	SHIM Part #: 3234273 Required per assembly: 1 Currently Not Available
30	WASHER, THRUST Part #: 3234248 Required per assembly: 2 Currently Not Available
30	WASHER, THRUST Part #: 3234248 Required per assembly: 2 Currently Not Available
31	SHIM-2.750X3.3125X.050 Part #: 3235850 Required per assembly: 1 Currently Not Available
32	BEARING, NEEDLE Part #: 3233009 Required per assembly: 1 Currently Not Available
33	BEARING Part #: 3233018 Required per assembly: 1 Currently Not Available
34	BEARING Part #: 3233019 Required per assembly: 1 Currently Not Available
35	BEARING, NEEDLE Part #: 3233103 Required per assembly: 2 Currently Not Available
35	BEARING, NEEDLE Part #: 3233103 Required per assembly: 2 Currently Not Available
36	BEARING, BALL Part #: 3233265 Required per assembly: 1 Currently Not Available
37	BEARING, BALL Part #: 3234065 Required per assembly: 1 Currently Not Available
38	BEARING-BALL (FOR GEARCASE 1341321) Part #: 3233714 Required per assembly: 1 Note: BEARING-BALL Currently Not Available
39	BEARING, BALL, [QTY, 3, ON, [2X4] Part #: 3234274 Required per assembly: 2 Note: Bearing, Ball Currently Not Available
39	BEARING, BALL, [QTY, 3, ON, [2X4] Part #: 3234274 Required per assembly: 2 Note: Bearing, Ball Currently Not Available
40	BEARING, NEEDLE Part #: 3234799 Required per assembly: 1 Currently Not Available
41	BEARING-BALL, DBL, ROW, 45X85X23 Part #: 3235851 Required per assembly: 2 Currently Not Available
41	BEARING-BALL, DBL, ROW, 45X85X23 Part #: 3235851 Required per assembly: 2 Currently Not Available
42	SPRING, TORSION Part #: 3233431 Required per assembly: 1 Currently Not Available
43	SPRING, COMPRESSION Part #: 3234078 Required per assembly: 2 Currently Not Available
43	SPRING, COMPRESSION Part #: 3234078 Required per assembly: 2 Currently Not Available
44	SPRING, COMPRESSION Part #: 3234089 Required per assembly: 2 ~~$24.99~~ $14.65 - + Add to cart
44	SPRING, COMPRESSION Part #: 3234089 Required per assembly: 2 ~~$24.99~~ $14.65 - + Add to cart
45	SPRING, COMPRESSION Part #: 3234578 Required per assembly: 1 Currently Not Available
46	TUBE, SNORKEL Part #: 3234278 Required per assembly: 1 Currently Not Available
47	COVER W/PINS Part #: 3234188 Required per assembly: 1 Note: For gasket use p/n 3234123 Currently Not Available
48	GEARCASE-MAIN, MACH, RH Part #: 3235852 Required per assembly: 1 Currently Not Available
49	DRUM, SHIFT Part #: 3234360 Required per assembly: 1 Currently Not Available
50	PLATE, PARK Part #: 3233915 Required per assembly: 1 Currently Not Available
51	GEAR, 16T Part #: 3233839 Required per assembly: 1 Currently Not Available
52	GEAR, 31T Part #: 3233832 Required per assembly: 1 Currently Not Available
53	PAWL, DETENT Part #: 3233829 Required per assembly: 1 Currently Not Available
54	STAR, DETENT Part #: 3233909 Required per assembly: 1 Currently Not Available
55	GEAR, OUTPUT, 91T Part #: 3234062 Required per assembly: 1 Currently Not Available
56	GEAR, SNORKEL, 13T Part #: 3234262 Required per assembly: 1 Currently Not Available
57	PINION, CENTER, DRIVE Part #: 3234263 Required per assembly: 1 Currently Not Available
58	SHAFT, REVERSE, 26T Part #: 3234071 Required per assembly: 1 Currently Not Available
59	SHOE, CHAIN, TENSIONER Part #: 3233433 Required per assembly: 1 Currently Not Available
60	CAM, CHAIN, TENSIONER Part #: 3233434 Required per assembly: 1 Currently Not Available
61	BELLCRANK Part #: 3234232 Required per assembly: 1 Currently Not Available
62	SHAFT, SHIFT Part #: 3233831 Required per assembly: 1 Currently Not Available
63	COLLAR, SHIFT Part #: 3234073 Required per assembly: 1 Currently Not Available
64	RAIL, SHIFT, SHAFT Part #: 3235542 Required per assembly: 1 Currently Not Available
65	FORK, SHIFT Part #: 3234077 Required per assembly: 2 Currently Not Available
65	FORK, SHIFT Part #: 3234077 Required per assembly: 2 Currently Not Available
66	TUBE, VENT, (1332366) Part #: 3234230 Required per assembly: 1 Note: Tube, Vent [4x4] Currently Not Available
67	SPROCKET, 24T Part #: 3233854 Required per assembly: 1 Currently Not Available
68	GEAR, 33T Part #: 3233852 Required per assembly: 1 Currently Not Available
69	DOG, ENGAGEMENT Part #: 3234257 Required per assembly: 1 Currently Not Available
70	ENGAGEMENT DOG Part #: 3234258 Required per assembly: 1 Currently Not Available
71	SPROCKET, 19T Part #: 3234441 Required per assembly: 1 Currently Not Available
72	GEAR-HELICAL 35T Part #: 3236032 Required per assembly: 1 Currently Not Available
72	GEAR-HELICAL 35T Part #: 3236032 Required per assembly: 1 Currently Not Available
73	SHAFT-PINION, 10T, STRAIGHTBEVEL Part #: 3235855 Required per assembly: 1 Currently Not Available
73	SHAFT-PINION, 10T, STRAIGHTBEVEL Part #: 3235855 Required per assembly: 1 Currently Not Available
74	COUPLER Part #: 3235925 Required per assembly: 1 Currently Not Available
77	COVER, BEARING Part #: 3234063 Required per assembly: 1 Currently Not Available
78	BRACKET, WIRE, HARNESS Part #: 3235350 Required per assembly: 2 Currently Not Available
78	BRACKET, WIRE, HARNESS Part #: 3235350 Required per assembly: 2 Currently Not Available
79	DEFLECTOR, OIL Part #: 3234061 Required per assembly: 1 Currently Not Available
80	SPACER Part #: 3235243 Required per assembly: 1 Currently Not Available
81	CHAIN, SILENT Part #: 3234264 Required per assembly: 1 Currently Not Available
82	CHAIN, 86P Part #: 3234442 Required per assembly: 1 Note: Chain Currently Not Available
83	PIN-GEAR POSITION SWITCH Part #: 7661999 Required per assembly: 1 Currently Not Available
84	K-SPEED SENSOR Part #: 3239727 Required per assembly: 1 Currently Not Available
85	O-RING Part #: 3233076 Required per assembly: 1 Currently Not Available
86	O-RING Part #: 3234302 Required per assembly: 1 Currently Not Available
87	O-RING Part #: 3233869 Required per assembly: 1 Currently Not Available
88	TRIPLE, LIP, SEAL, 25, X, 80, X, 10 Part #: 3234113 Required per assembly: 1 Note: Seal, Triple Lip Currently Not Available
89	SEAL-TRIPLE, LIP, 40X72X7 Part #: 3235924 Required per assembly: 1 Currently Not Available
90	SEAL, TRIPLE, LIP Part #: 3234300 Required per assembly: 1 Note: 40 x 70 x 7 Currently Not Available
91	O-RING Part #: 3234785 Required per assembly: 1 Currently Not Available
92	SEAL Part #: 3234851 Required per assembly: 1 Currently Not Available
93	SEAL-TRIPLE LIP 40X85X7 Part #: 3235856 Required per assembly: 1 Currently Not Available
94	PLUG-HEX, HOLLOW, W/O-RING, (FB) Part #: 3233794 Required per assembly: 1 Note: Plug, Hex, Hollow w/O-Ring Currently Not Available
95	BEARING-BALL, 6204, C3, 20X47X14 Part #: 3235969 Required per assembly: 1 Currently Not Available
96	CHAIN Part #: 3234608 Required per assembly: 1 Currently Not Available
