OEM Parts Polaris 2017 Polaris Sportsman 570 Tractor (R06) Taillamps - A17ses57c1/C2/C7/Cl/E1/E2/E7/El/Set57c1/C2/E1/E2

2017 Polaris Sportsman 570 Tractor (R06) A17SES57C1/C2/C7/CL/E1/E2/E7/EL/SET57C1/C2/E1/E2 - Taillamps - A17ses57c1/C2/C7/Cl/E1/E2/E7/El/Set57c1/C2/E1/E2

TAILLAMPS - A17SES57C1/C2/C7/CL/E1/E2/E7/EL/SET57C1/C2/E1/E2 Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

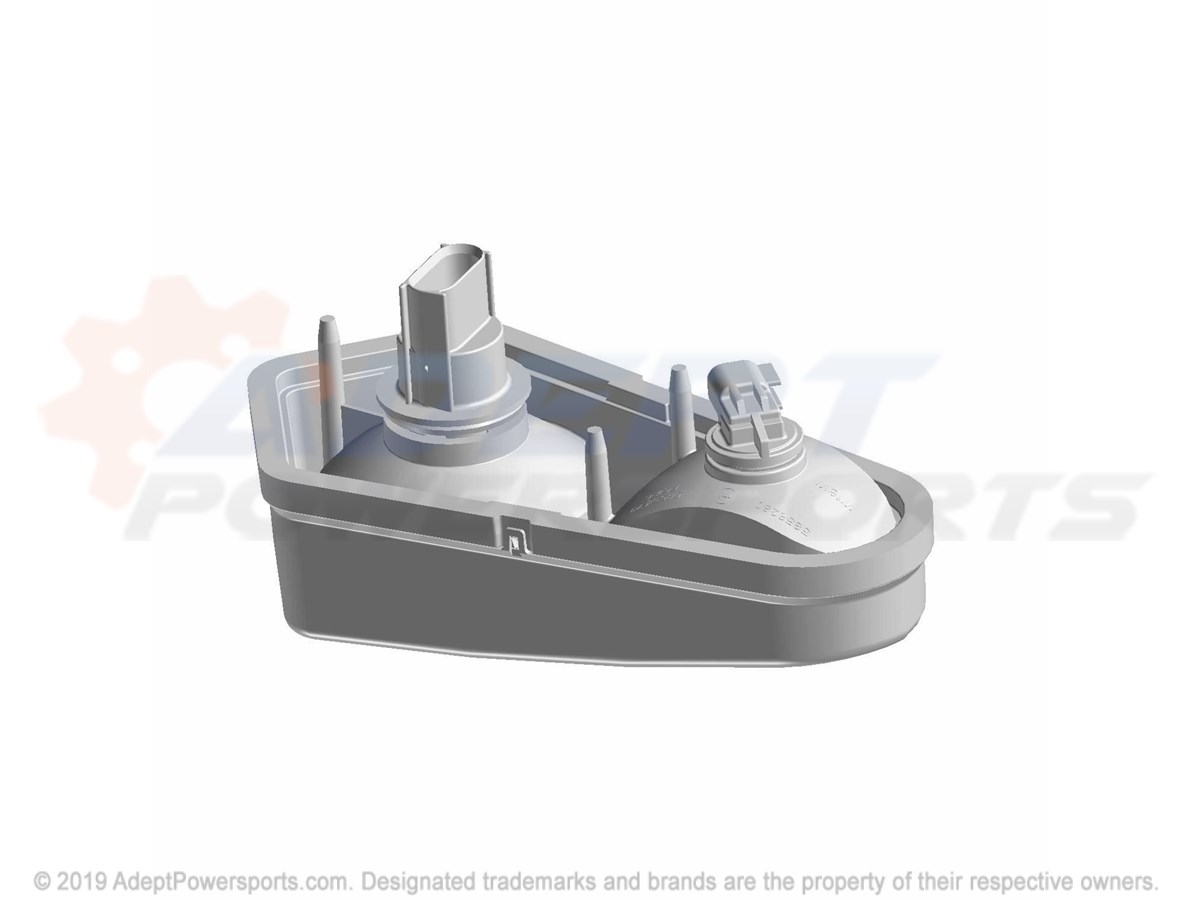

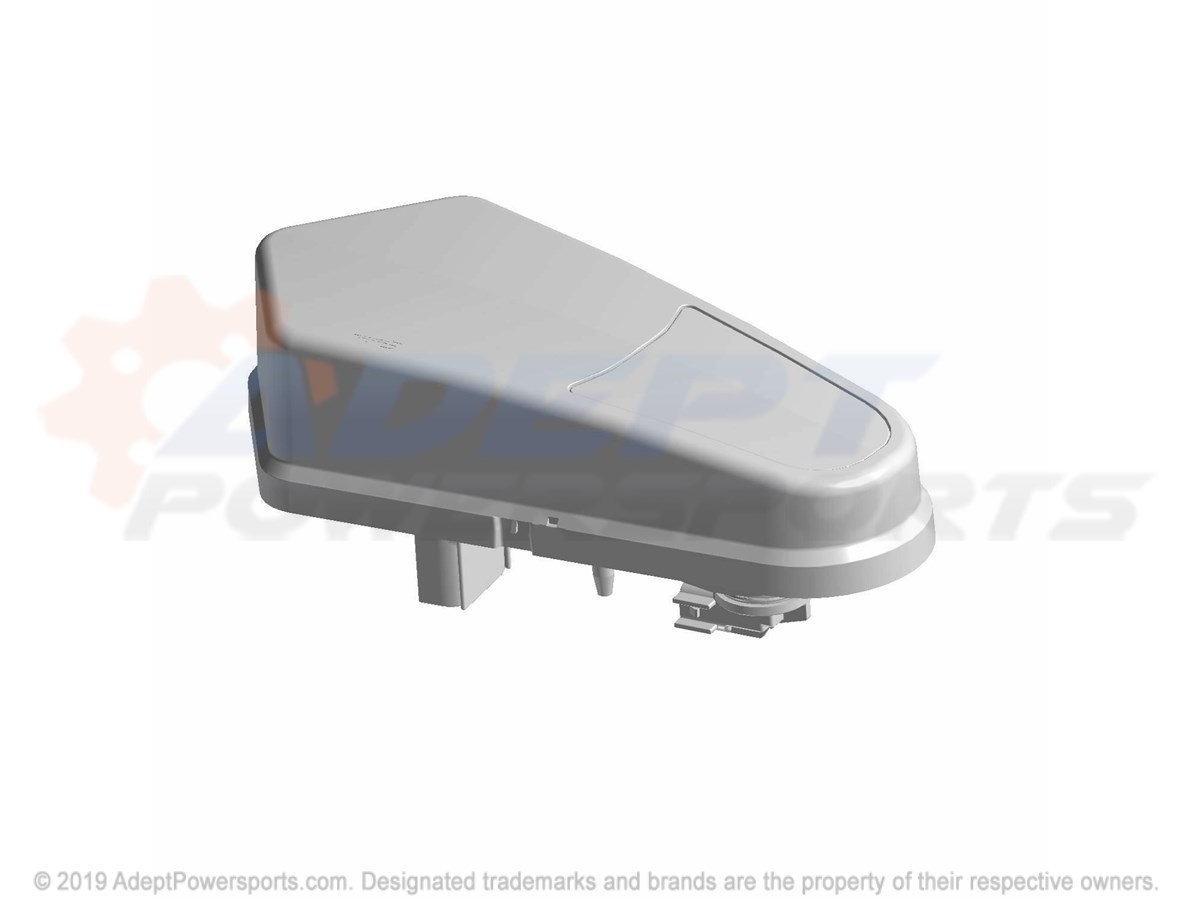

Polaris 2410578 Assembly, Stop, Tail, Turn, Lh

ASSEMBLY, STOP, TAIL, TURN, LH

Part #: 2410578 Required per assembly: 1
Currently Not Available
1
Polaris 2410579 Assembly, Stop, Tail, Turn, Rh

ASSEMBLY, STOP, TAIL, TURN, RH

Part #: 2410579 Required per assembly: 1
Currently Not Available
1
Polaris 2413068 Asm-Stop, Tail, Trn, Ece, No, Rf, Rh

ASM-STOP, TAIL, TRN, ECE, NO, RF, RH

Part #: 2413068 Required per assembly: 1 Note: CL/EL ONLY
Currently Not Available
1
Polaris 2413067 Asm-Stop, Tail, Trn, Ece, No, Rf, Lh

ASM-STOP, TAIL, TRN, ECE, NO, RF, LH

Part #: 2413067 Required per assembly: 1 Note: CL/EL ONLY
Currently Not Available
2

NUT, PUSH-ON

Part #: 7670054 Required per assembly: 6
$2.99
$1.73
-
+
Add to cart
3
Polaris 4011101 Socket, Taillight

SOCKET, TAILLIGHT

Part #: 4011101 Required per assembly: 2
Currently Not Available
4

SOCKET, WORKLIGHT

Part #: 4011102 Required per assembly: 2
Currently Not Available
