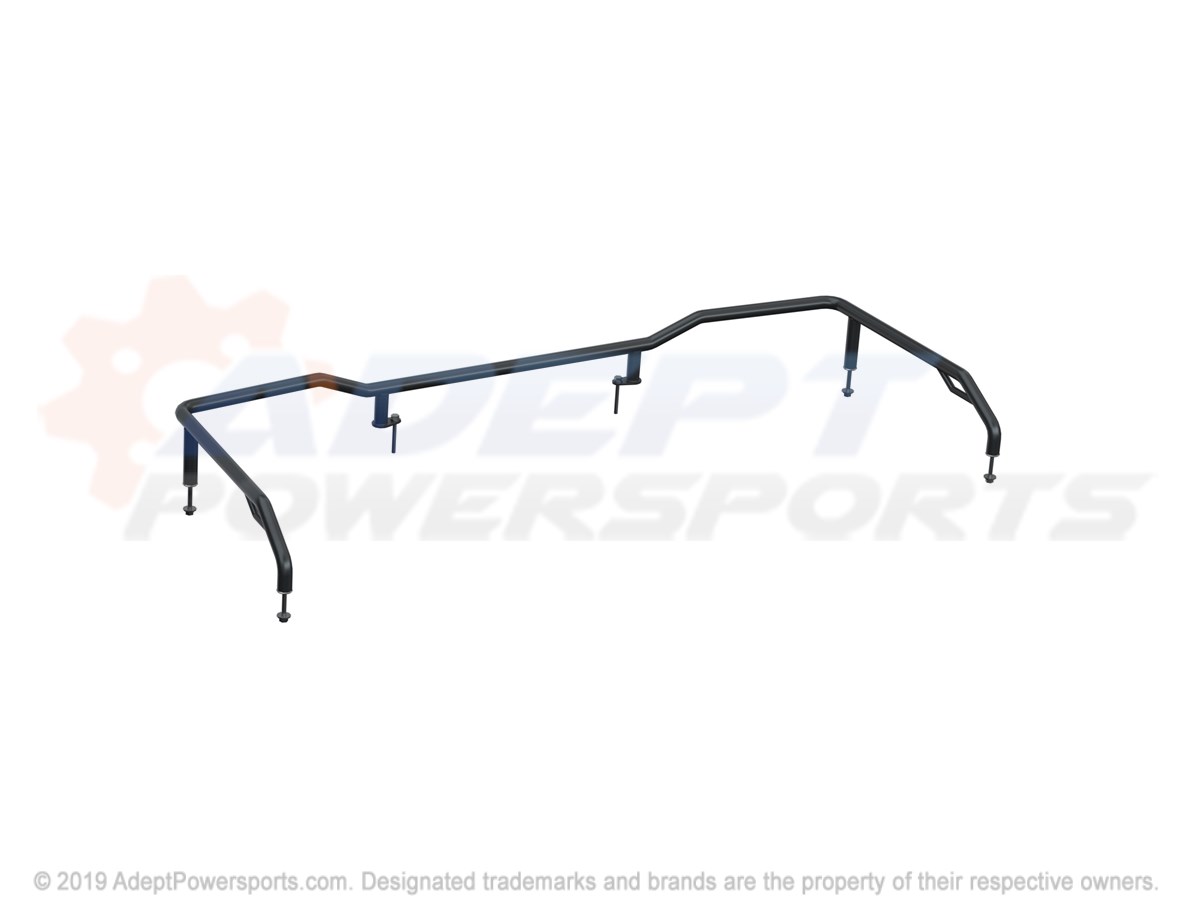

FRONT AND REAR RACK EXTENDERS - A17SHD57A9/AG (49ATVRACKEXTENDERS57570SP) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	SPORTSMAN 570 FRONT RACK EXTENDER Part #: 2879716 Required per assembly: 1 Note: INCL., 3 Currently Not Available
2	SPORTSMAN 570 REAR RACK EXTENDER Part #: 2879717 Required per assembly: 1 Note: INCL., 3 Currently Not Available
3	K-HDWR, RACK, EXTENDER Part #: 2205227 Required per assembly: 2 Currently Not Available
3	K-HDWR, RACK, EXTENDER Part #: 2205227 Required per assembly: 2 Currently Not Available
