Harness - A17suh57n5 (100703) replacement parts for 2017 Polaris Sportsman 570 EFI UTE (R11)

OEM Parts Polaris 2017 Polaris Sportsman 570 EFI UTE (R11) Harness - A17suh57n5 (100703)

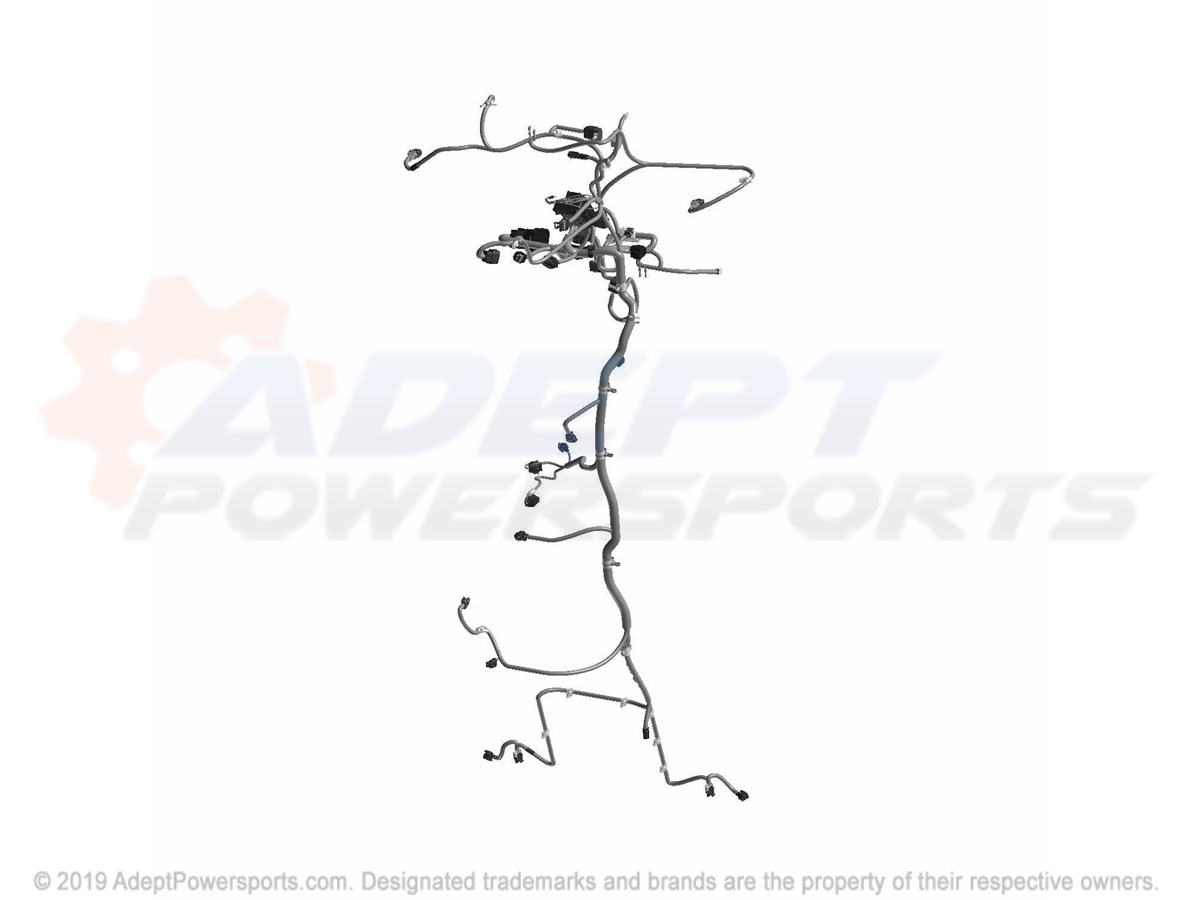

HARNESS - A17SUH57N5 (100703) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	HARNESS-MAIN, UTE, 570, ETC, AUS Part #: 2413484 Required per assembly: 1 Currently Not Available
2	FUSE-20 MINI BLADE 58V(YELLOW) Part #: 4012811 Required per assembly: 4 Currently Not Available
3	RELAY-SPST, 12V, 20A, EPXY, HFA Part #: 4016819 Required per assembly: 7 Currently Not Available
4	LABEL-FUSE BOX Part #: 7180890 Required per assembly: 1 Currently Not Available
5	DIODE, 6, AMP Part #: 2411035 Required per assembly: 1 Currently Not Available
6	FUSE, 10AMP Part #: 2434016 Required per assembly: 5 Note: Fuse, 10 AMP, Ignition Sold in multiples of 10 only Currently Not Available
7	COVER, DIAGNOSTIC, W/CLIP Part #: 4012170 Required per assembly: 1 Currently Not Available
8	BREAKER, CIRCUIT, SEALED, 10, AMP Part #: 2410692 Required per assembly: 1 Note: Breaker, Circuit, 10 Amp, Sealed Currently Not Available
9	DIODE, 6, AMP Part #: 2410000 Required per assembly: 1 Note: Diaode, 6 AMP Currently Not Available
10	KIT, FUSIBLE, LINK, .8MM Part #: 2202607 Required per assembly: 1 Currently Not Available
11	CLAMP, HOSE Part #: 7080908 Required per assembly: 1 Currently Not Available
12	BOLT Part #: 7512232 Required per assembly: 1 ~~$1.99~~ $1.15 - + Add to cart
13	NUT, SPEED Part #: 7670057 Required per assembly: 1 Note: Nut, Speed ~~$1.99~~ $1.15 - + Add to cart
14	FUSE, MAIN, 30, AMP Part #: 2434015 Required per assembly: 1 Note: Fuse, 30 AMP, Main Sold in multiples of 10 only Currently Not Available
15	COVER-FUSEBOX, 48WAY Part #: 4015011 Required per assembly: 1 Currently Not Available
