Ignition System - A17sva85a2 replacement parts for 2017 Polaris Scrambler 850 (R09)

OEM Parts Polaris 2017 Polaris Scrambler 850 (R09) Ignition System - A17sva85a2

IGNITION SYSTEM - A17SVA85A2 Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	TUBING-NYLON 5MMX100MM BLK Part #: 8360209 Required per assembly: 1 Currently Not Available

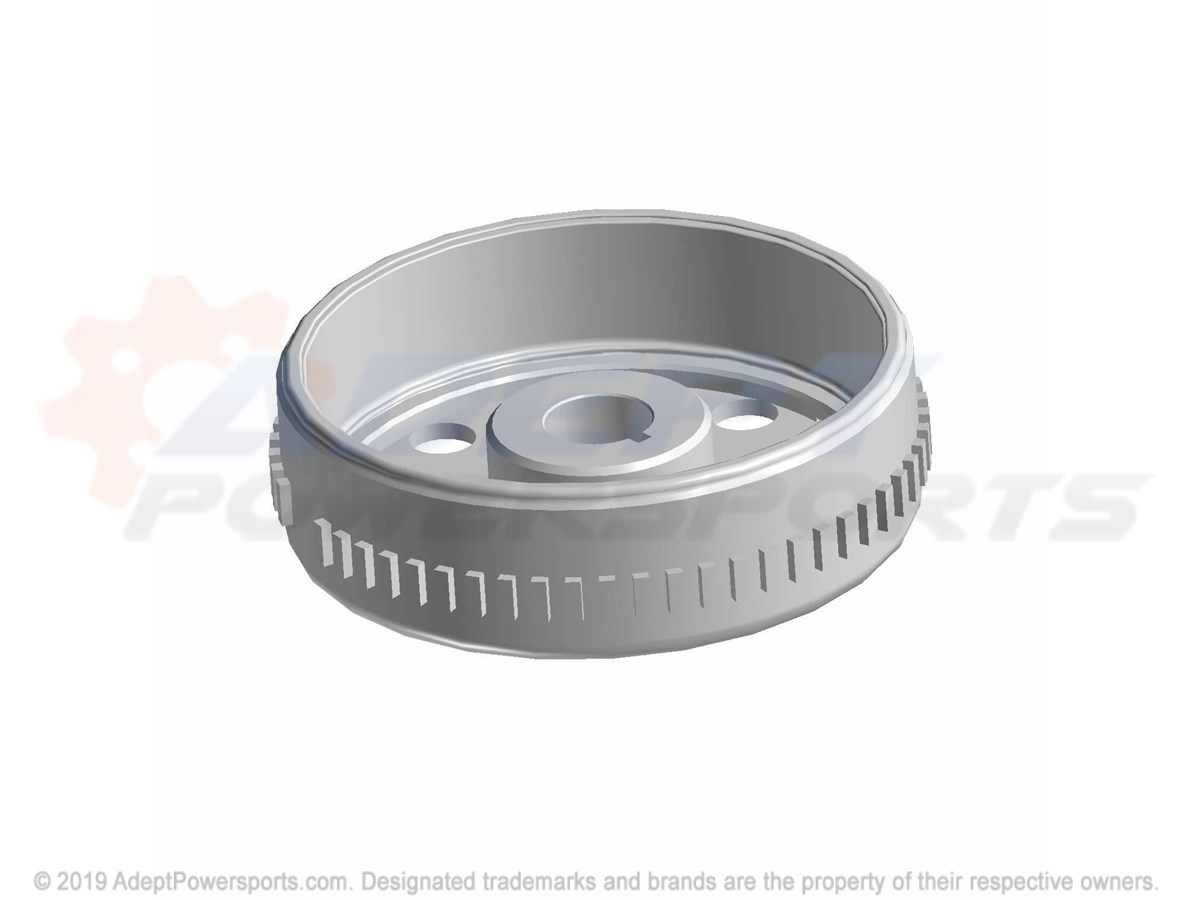

2	FLYWHEEL Part #: 4015703 Required per assembly: 1 Currently Not Available
3	SCREW 1.50 Part #: 7517566 Required per assembly: 1 Currently Not Available
4	BOLT-WATERPUMP, DRIVE, LH Part #: 5140078 Required per assembly: 1 Currently Not Available

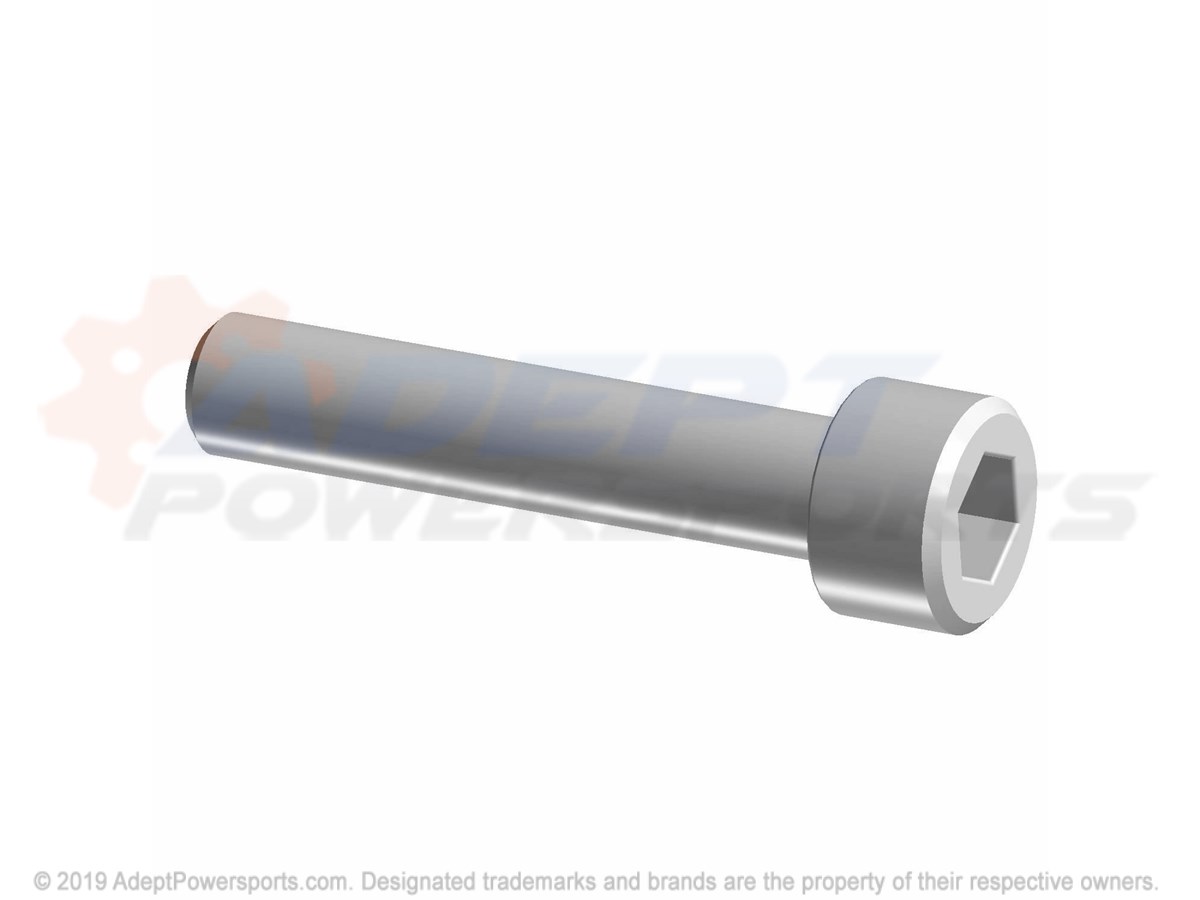

5	SCREW Part #: 7518544 Required per assembly: 3 $4.99 $2.92 - + Add to cart
6	STATOR Part #: 4014406 Required per assembly: 1 Currently Not Available

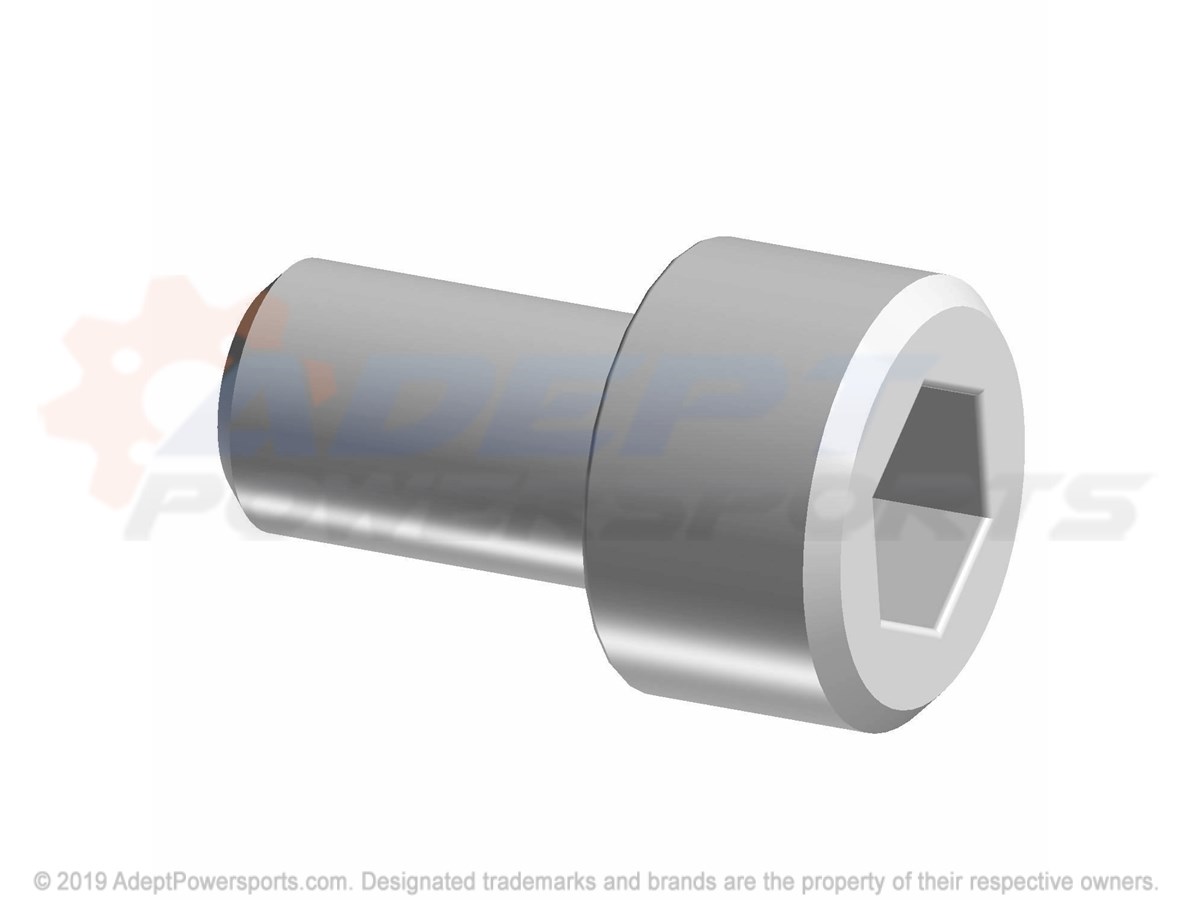

7	SCREW Part #: 7518765 Required per assembly: 2 $2.99 $1.73 - + Add to cart

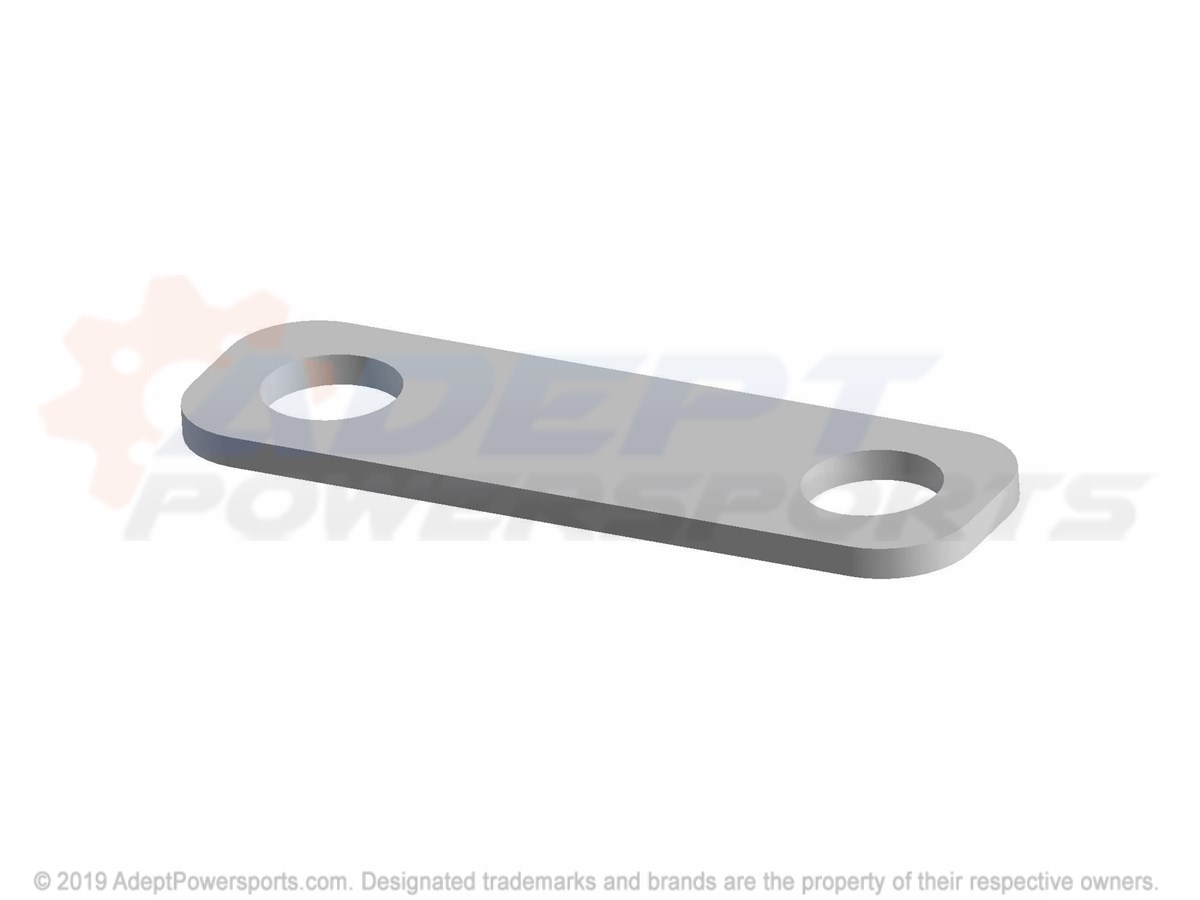

8	RETAINER-STATOR WIRE Part #: 5261146 Required per assembly: 1 Currently Not Available

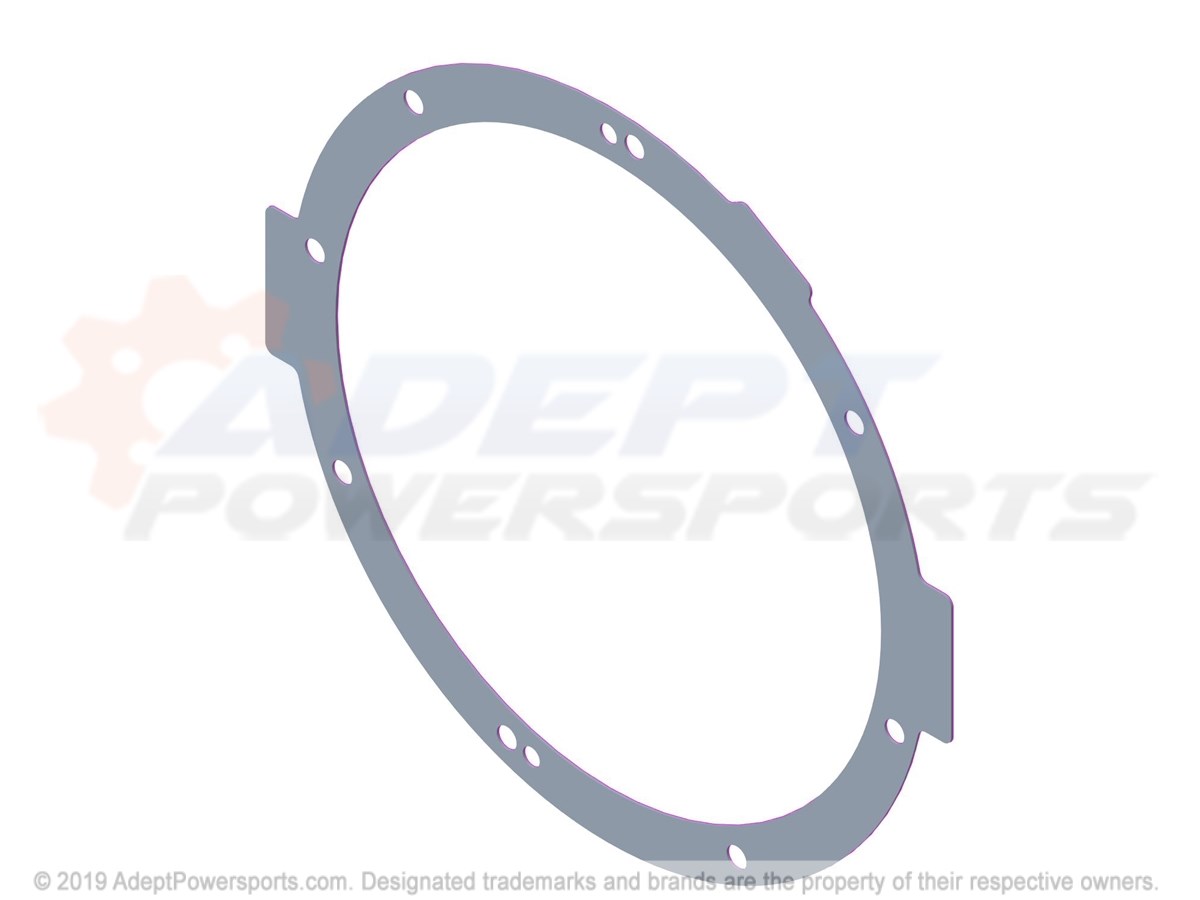

9	GASKET-STATOR COVER Part #: 5813680 Required per assembly: 1 Currently Not Available
10	FITTING Part #: 7052463 Required per assembly: 1 Currently Not Available
11	SPARKPLUG-12MM REA6MCX Part #: 3022438 Required per assembly: 2 Currently Not Available
12	SCREW Part #: 7518576 Required per assembly: 8 Currently Not Available
13	WIRE, SPARK, PLUG, MAG Part #: 4014007 Required per assembly: 1 Currently Not Available
14	WIRE-SPARKPLUG PTO Part #: 4013328 Required per assembly: 1 Currently Not Available
15	KIT, IGNITION, COIL Part #: 2876049 Required per assembly: 1 Note: Coil Currently Not Available
