Rear Caliper - A17sve95fm replacement parts for 2017 Polaris Scrambler 1000 EU (R08)

OEM Parts Polaris 2017 Polaris Scrambler 1000 EU (R08) Rear Caliper - A17sve95fm

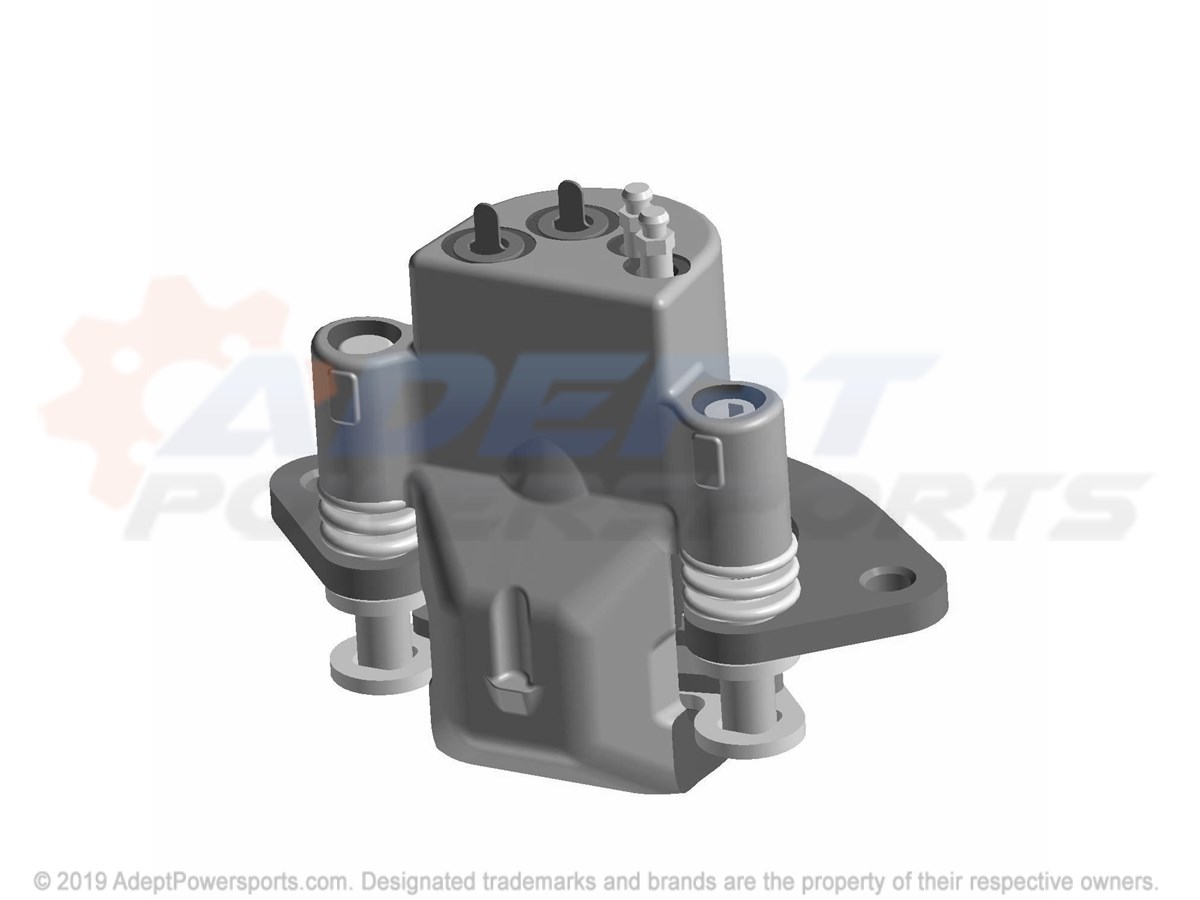

REAR CALIPER - A17SVE95FM Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	CALIPER-DUAL INPUT RH Part #: 1911459 Required per assembly: 1 Note: INCL. ALL LESS 13 Currently Not Available
1	CALIPER-DUAL INPUT LH Part #: 1911458 Required per assembly: 1 Note: INCL. ALL LESS 13 Currently Not Available
2	KIT, BRAKE, PAD, REAR Part #: 2204088 Required per assembly: 1 Note: INCL. 2 PADS Currently Not Available
3	PISTON, BRAKE, STEP Part #: 5136698 Required per assembly: 1 Currently Not Available
5	KIT, PISTON, &, SEAL Part #: 2200463 Required per assembly: 1 Currently Not Available
6	SEAL, CALIPER, INNER Part #: 5412010 Required per assembly: 1 Currently Not Available
7	SEAL, CALIPER, OUTER Part #: 5412011 Required per assembly: 1 Currently Not Available
8	BOOT, BUSHING Part #: 5412505 Required per assembly: 1 Currently Not Available
9	BOOT, PIN, SEAL Part #: 5412506 Required per assembly: 1 Currently Not Available
10	ASSEMBLY, CALIPER, MOUNT Part #: 1911225 Required per assembly: 1 Currently Not Available
11	SCREW, BLEEDER Part #: 7080352 Required per assembly: 2 ~~$4.99~~ $2.88 - + Add to cart
12	SETSCREW, SKT.HD. Part #: 7515489 Required per assembly: 1 Currently Not Available
13	BOLT Part #: 7518760 Required per assembly: 4 Note: CALIPER MOUNTING Currently Not Available
