2017 Polaris Sportsman 850 SP (R11) A17SXA85A1/A7/SXE85AB/AM/AS/A9 - Seat - A17sxa85a1/A7/Sxe85ab/Am/As/A9 (100972)

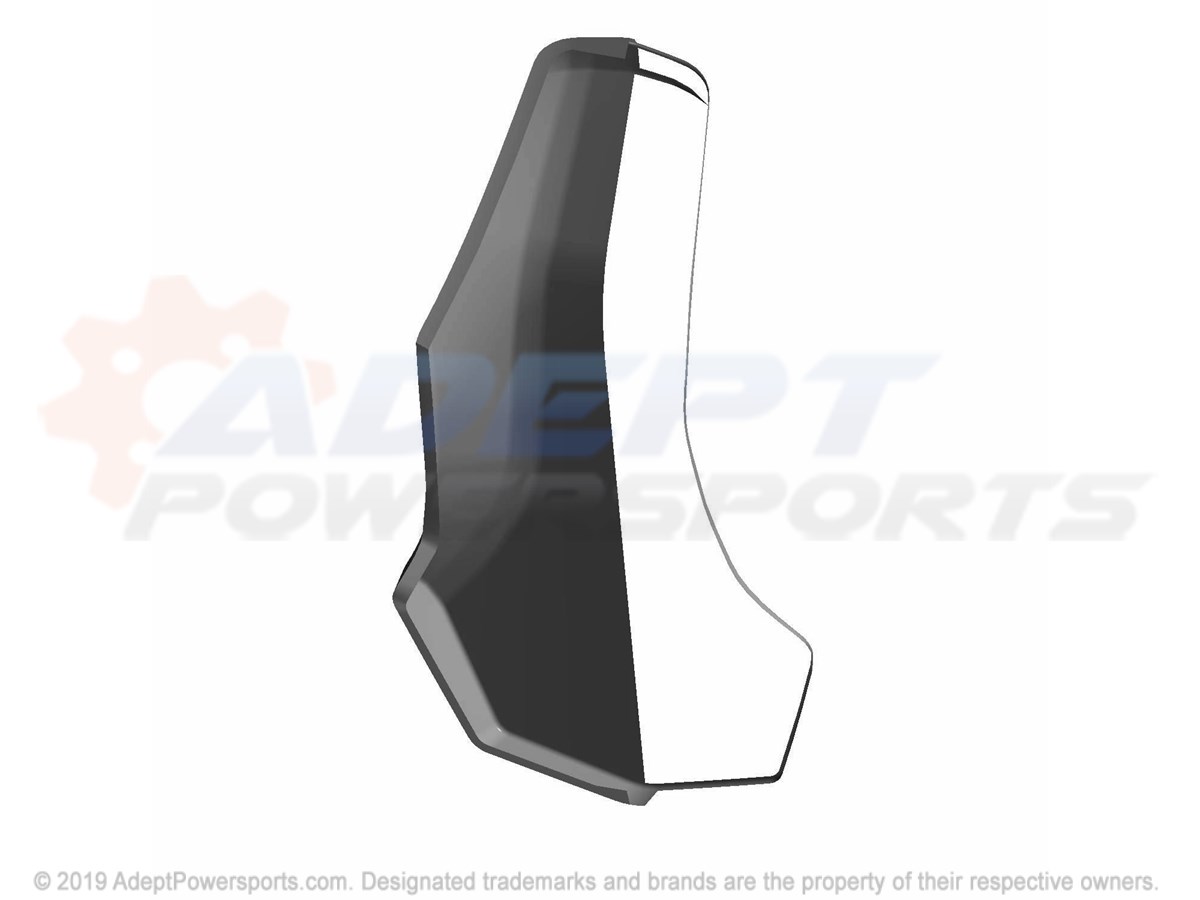

SEAT - A17SXA85A1/A7/SXE85AB/AM/AS/A9 (100972) Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

ASM-COVER, WHITE, DECAL

Part #: 2687226 Required per assembly: 1 Note: AB
Currently Not Available
1
Polaris 2687572 Cover-Seat, Blk/Ppc, Tan, St

COVER-SEAT, BLK/PPC, TAN, ST

Part #: 2687572 Required per assembly: 1 Note: A9
Currently Not Available
1

ASM-SEAT, BLK

Part #: 2687923-070 Required per assembly: 1 Note: AB
Currently Not Available
1
Polaris 2689238 Asm-Seat, Blk/Ppc, Tan, St

ASM-SEAT, BLK/PPC, TAN, ST

Part #: 2689238 Required per assembly: 1 Note: A9
Currently Not Available
2
Polaris 5412067 Bumper-Rubber

BUMPER-RUBBER

Part #: 5412067 Required per assembly: 6 Note: Bumper, Rubber
Currently Not Available
3
Polaris 5415539 Grommet-Seat Latch

GROMMET-SEAT LATCH

Part #: 5415539 Required per assembly: 2
Currently Not Available
4
Polaris 1022751-067 Weld-Seat, Latch, Blk

WELD-SEAT, LATCH, BLK

Part #: 1022751-067 Required per assembly: 1
Currently Not Available
5
Polaris 7518555 Screw

SCREW

Part #: 7518555 Required per assembly: 2 Note: Bolt, Flange
Currently Not Available
6
Polaris 5451185 Mount-Seat Front

MOUNT-SEAT FRONT

Part #: 5451185 Required per assembly: 1
Currently Not Available
7
Polaris 5250682 Bracket, Seat, Base

BRACKET, SEAT, BASE

Part #: 5250682 Required per assembly: 2
Currently Not Available
8
Polaris 7519045 Screw

SCREW

Part #: 7519045 Required per assembly: 4
Currently Not Available
9
Polaris 7517441 Screw

SCREW

Part #: 7517441 Required per assembly: 1
Currently Not Available
