Front A-Arms - A17sxm95am replacement parts for 2017 Polaris Sportsman 1000 High Lifter (R11)

OEM Parts Polaris 2017 Polaris Sportsman 1000 High Lifter (R11) Front A-Arms - A17sxm95am

FRONT A-ARMS - A17SXM95AM Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

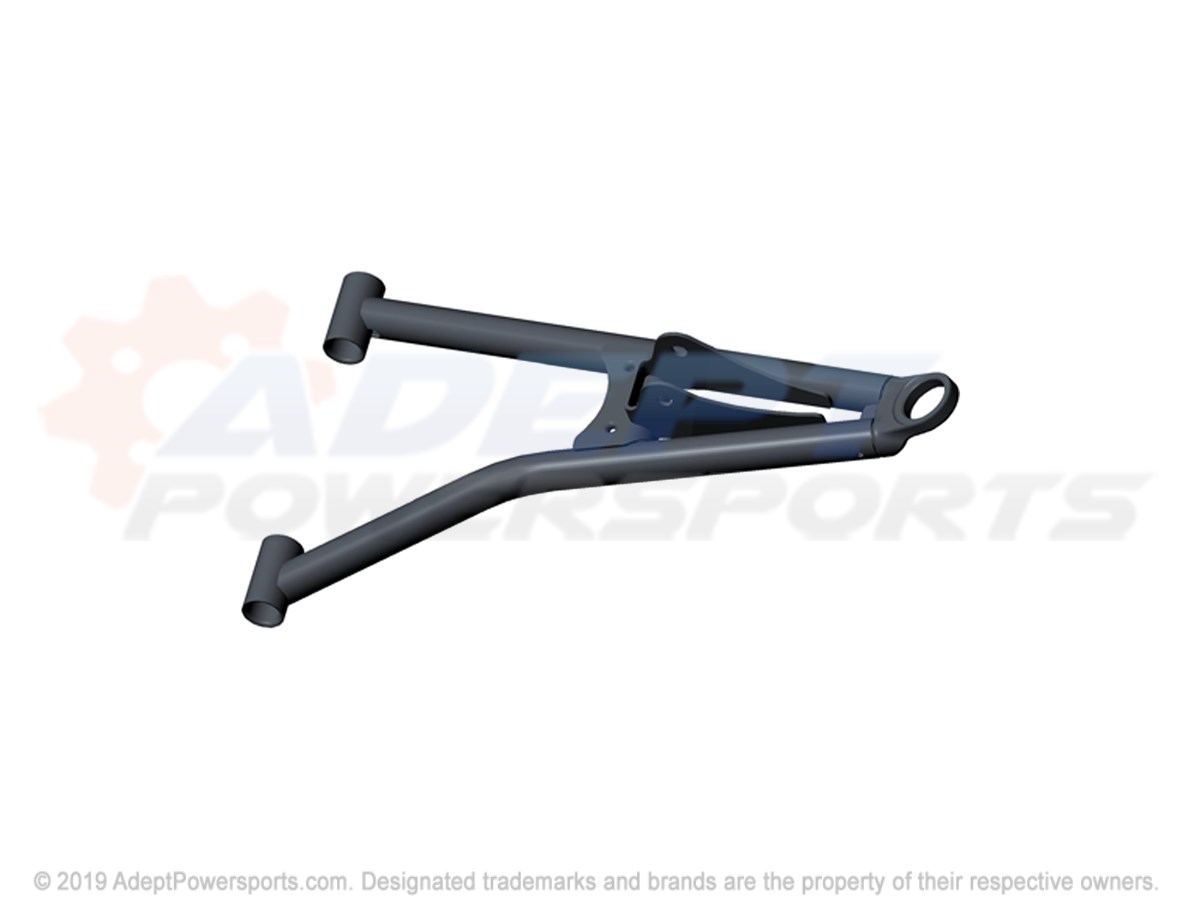

1	WELD-UCA, FRNT, LH, VELOCITY, BLUE Part #: 1019808-689 Required per assembly: 1 Currently Not Available
1	WELD-UCA, FRNT, RH, VELOCITY, BLUE Part #: 1019809-689 Required per assembly: 1 Currently Not Available

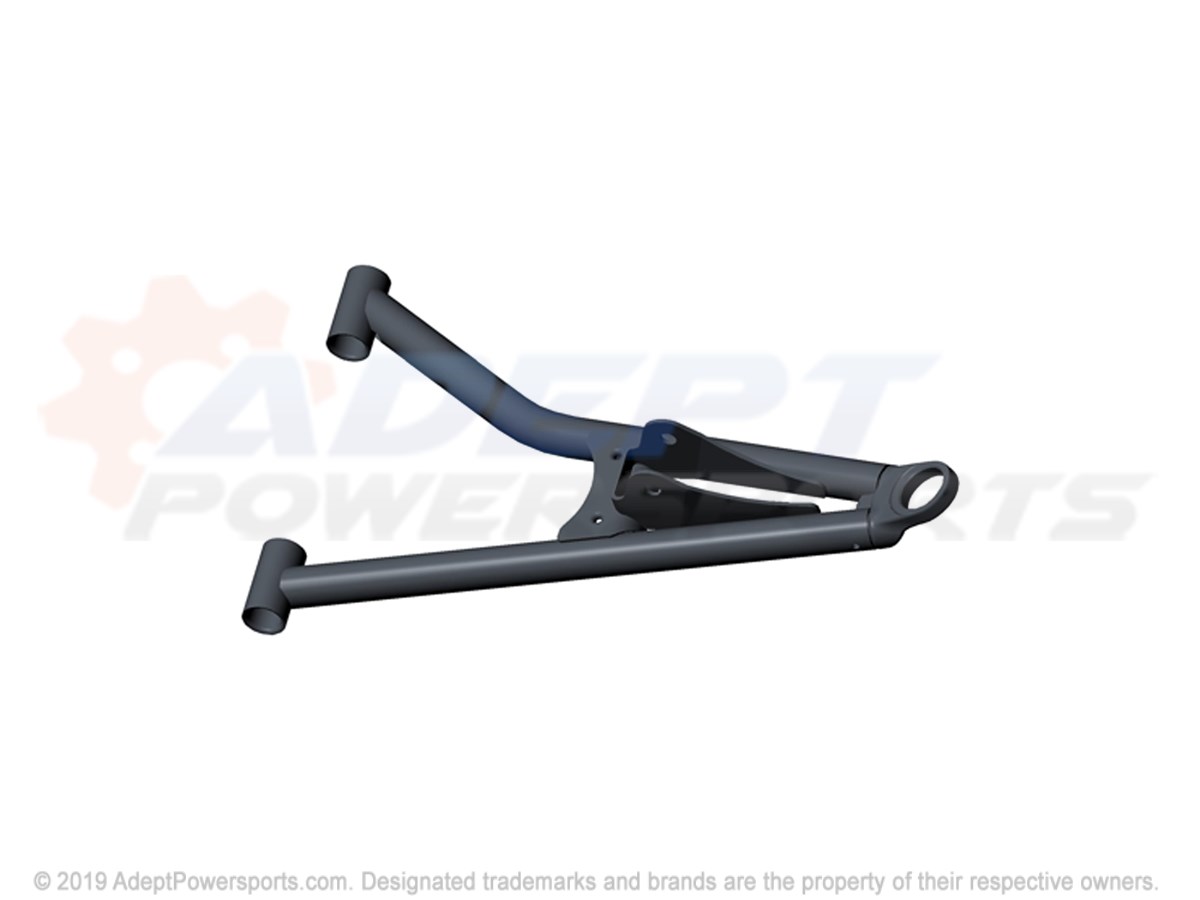

2	WELD-LCA, FRNT, LH, VELOCITY, BLUE Part #: 1021187-689 Required per assembly: 1 Currently Not Available
2	WELD-LCA, FRNT, RH, VELOCITY, BLUE Part #: 1021188-689 Required per assembly: 1 Currently Not Available
3	RING, RETAINER Part #: 7710533 Required per assembly: 4 Currently Not Available
3	RING, RETAINER Part #: 7710533 Required per assembly: 4 Currently Not Available
4	BALL-JOINT, 8MM, 5140 Part #: 7061220 Required per assembly: 4 Currently Not Available
4	BALL-JOINT, 8MM, 5140 Part #: 7061220 Required per assembly: 4 Currently Not Available
5	NUT, NYLOK Part #: 7547405 Required per assembly: 4 Currently Not Available
5	NUT, NYLOK Part #: 7547405 Required per assembly: 4 Currently Not Available
5	NUT, NYLOK Part #: 7547405 Required per assembly: 4 Currently Not Available
6	SCR-M8X1.25X65-HX/FL-Y CL 10.9 Part #: 7519212 Required per assembly: 4 Currently Not Available
7	ZERK, FITTING, THREADED Part #: 7080433 Required per assembly: 8 ~~$2.99~~ $1.73 - + Add to cart
7	ZERK, FITTING, THREADED Part #: 7080433 Required per assembly: 8 ~~$2.99~~ $1.73 - + Add to cart
8	BUSHING Part #: 5439874 Required per assembly: 16 Currently Not Available
8	BUSHING Part #: 5439874 Required per assembly: 16 Currently Not Available
8	BUSHING Part #: 5439874 Required per assembly: 16 Currently Not Available
9	SHAFT-A-ARM 63.5MM Part #: 5137346 Required per assembly: 8 Currently Not Available
9	SHAFT-A-ARM 63.5MM Part #: 5137346 Required per assembly: 8 Currently Not Available
9	SHAFT-A-ARM 63.5MM Part #: 5137346 Required per assembly: 8 Currently Not Available
10	SCREW Part #: 7518466 Required per assembly: 8 Note: Bolt Currently Not Available
10	SCREW Part #: 7518466 Required per assembly: 8 Note: Bolt Currently Not Available
11	NUT, FLANGE Part #: 7547313 Required per assembly: 8 ~~$2.79~~ $1.73 - + Add to cart
11	NUT, FLANGE Part #: 7547313 Required per assembly: 8 ~~$2.79~~ $1.73 - + Add to cart
11	NUT, FLANGE Part #: 7547313 Required per assembly: 8 ~~$2.79~~ $1.73 - + Add to cart
11	NUT, FLANGE Part #: 7547313 Required per assembly: 8 ~~$2.79~~ $1.73 - + Add to cart
12	WASHER-M8 FW STL THRU-HRD Part #: 7556557 Required per assembly: 4 Currently Not Available
12	WASHER-M8 FW STL THRU-HRD Part #: 7556557 Required per assembly: 4 Currently Not Available
