OEM Parts Polaris 2017 Polaris Sportsman 850 High Lifter (R11) Storage, Rear - A17sxn85a5

2017 Polaris Sportsman 850 High Lifter (R11) A17SXN85A5 - Storage, Rear - A17sxn85a5

STORAGE, REAR - A17SXN85A5 Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1
Polaris 2633431 Cover, Storage, Rear

COVER, STORAGE, REAR

Part #: 2633431 Required per assembly: 1
Currently Not Available
2
Polaris 2633432 Box, Storage, Lower, Rear

BOX, STORAGE, LOWER, REAR

Part #: 2633432 Required per assembly: 1
Currently Not Available
3
Polaris 5413444 Seal, Box, Storage, Rear

SEAL, BOX, STORAGE, REAR

Part #: 5413444 Required per assembly: 1
Currently Not Available
4
Polaris 7081425 Latch

LATCH

Part #: 7081425 Required per assembly: 1 Note: Latch
Currently Not Available
5
Polaris 5812138 Foam, Panel, Lh

FOAM, PANEL, LH

Part #: 5812138 Required per assembly: 1
Currently Not Available
6
Polaris 7519045 Screw

SCREW

Part #: 7519045 Required per assembly: 4
Currently Not Available
7

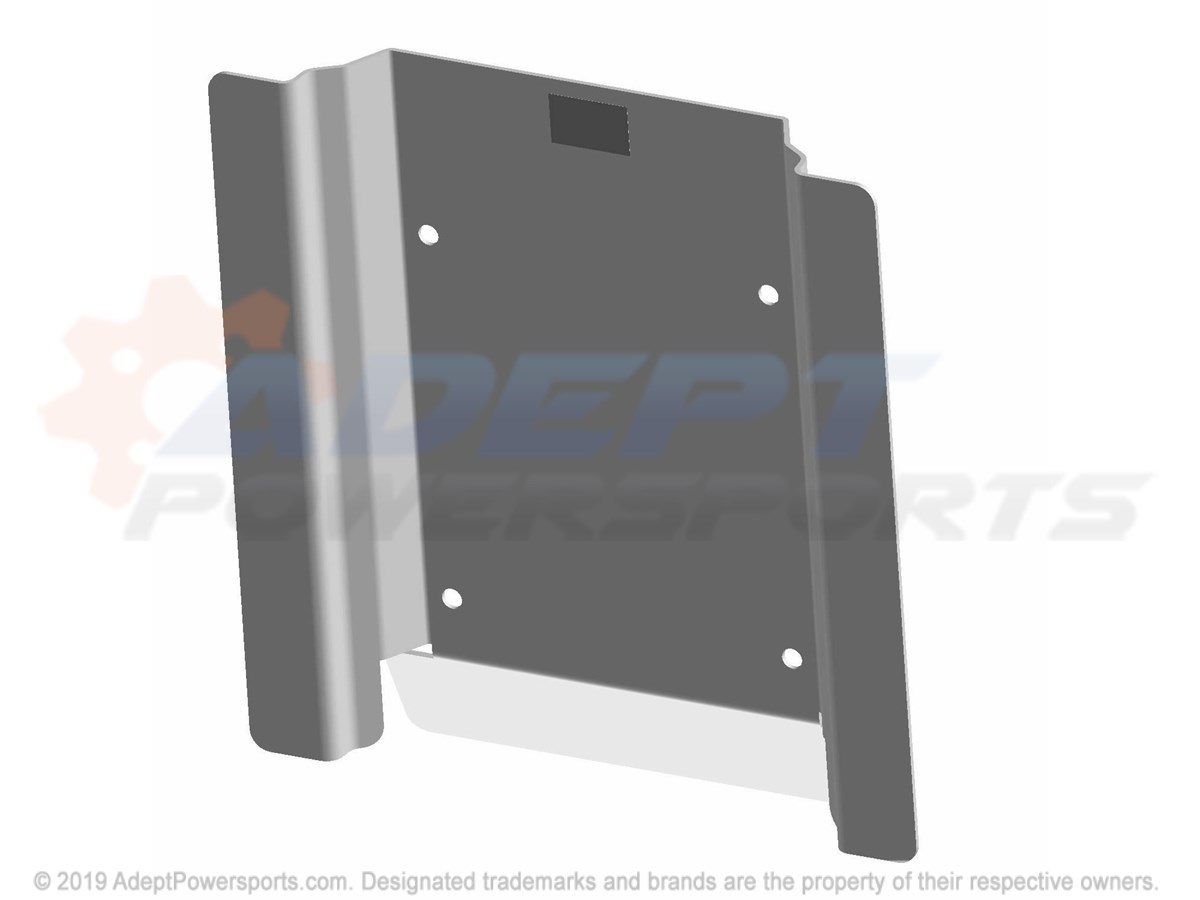

Polaris 5259367 Shield-Storage Box

SHIELD-STORAGE BOX

Part #: 5259367 Required per assembly: 1
Currently Not Available
