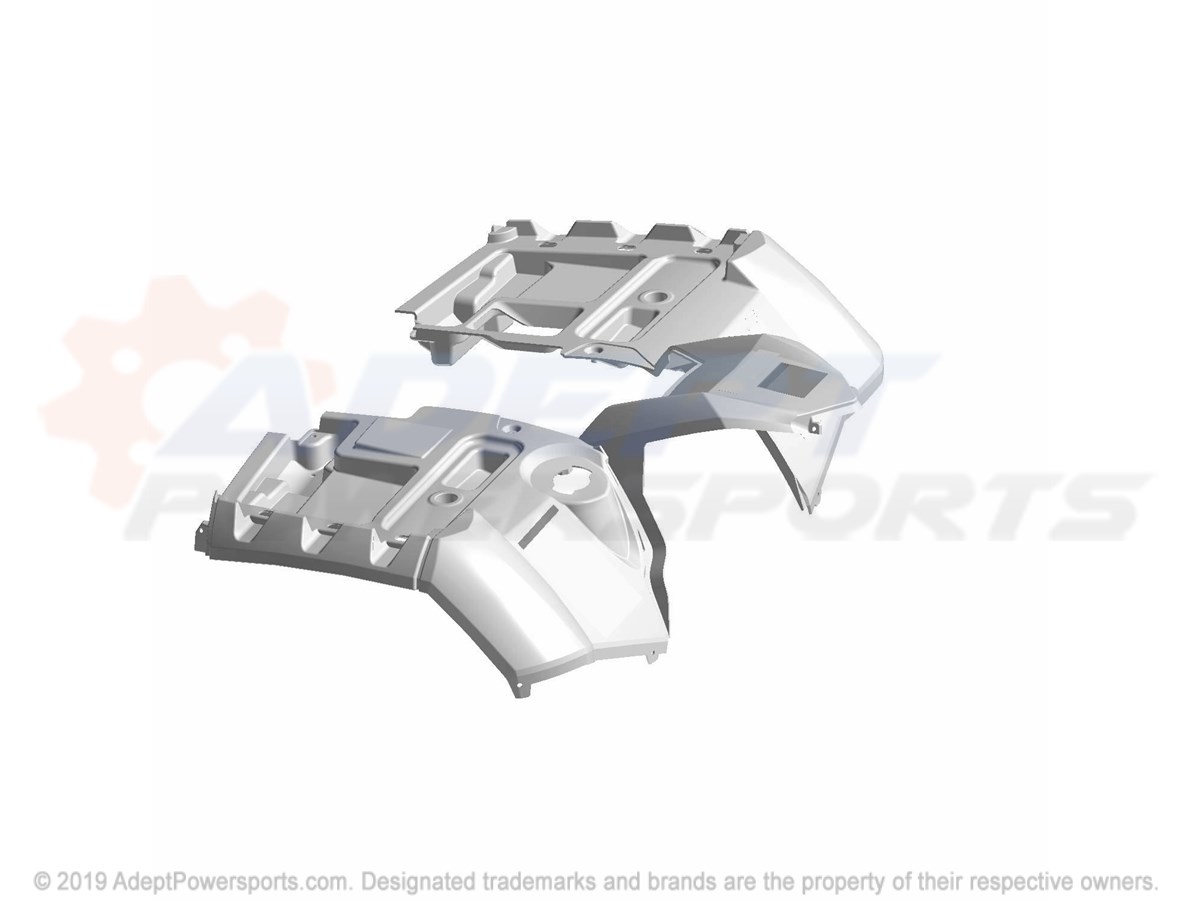

FRONT CAB - A17SYE85AS (100907) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	ASM-CAB, FR, SVC, 2UP, PNT, SS.RED Part #: 2636429-520 Required per assembly: 1 Note: INCL. WARNING DECALS Currently Not Available
2	PANEL, SIDE, UPPER, RH, SUNSET, RED Part #: 5439095-520 Required per assembly: 1 Currently Not Available
3	PANEL, SIDE, UPPER, LH, SUNSET, RED Part #: 5439000-520 Required per assembly: 1 Currently Not Available
4	COVER, FRONT, SUNSET, RED, [AL] Part #: 5437739-520 Required per assembly: 1 Currently Not Available
5	SCREW Part #: 7518238 Required per assembly: 2 ~~$3.79~~ $1.73 - + Add to cart
6	GUARD, MUD, FRONT, LH, BLACK Part #: 5437062-070 Required per assembly: 1 Currently Not Available
7	GUARD, MUD, FRONT, RH, BLACK Part #: 5437063-070 Required per assembly: 1 Currently Not Available
8	SCREW Part #: 7519045 Required per assembly: 2 Currently Not Available
8	SCREW Part #: 7519045 Required per assembly: 2 Currently Not Available
9	SCREW Part #: 7519092 Required per assembly: 2 Currently Not Available
10	RIVET Part #: 7661855 Required per assembly: 15 ~~$2.99~~ $1.73 - + Add to cart
10	RIVET Part #: 7661855 Required per assembly: 15 ~~$2.99~~ $1.73 - + Add to cart
10	RIVET Part #: 7661855 Required per assembly: 15 ~~$2.99~~ $1.73 - + Add to cart
10	RIVET Part #: 7661855 Required per assembly: 15 ~~$2.99~~ $1.73 - + Add to cart
10	RIVET Part #: 7661855 Required per assembly: 15 ~~$2.99~~ $1.73 - + Add to cart
10	RIVET Part #: 7661855 Required per assembly: 15 ~~$2.99~~ $1.73 - + Add to cart
11	ASM-SHIELD, EXHAUST, COVER Part #: 2636354 Required per assembly: 1 Currently Not Available
12	SHIELD-HEAT, EXHAUST, RH Part #: 5263215 Required per assembly: 1 Currently Not Available
13	SCREW Part #: 7527815 Required per assembly: 5 Currently Not Available
14	PANEL, SIDE, LOWER, LH, BLACK Part #: 5437476-070 Required per assembly: 1 Currently Not Available
