OEM Parts Polaris 2017 Polaris Sportsman Touring 1000 (R10) Exhaust - A17sye95ak

2017 Polaris Sportsman Touring 1000 (R10) A17SYE95AK - Exhaust - A17sye95ak

EXHAUST - A17SYE95AK Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

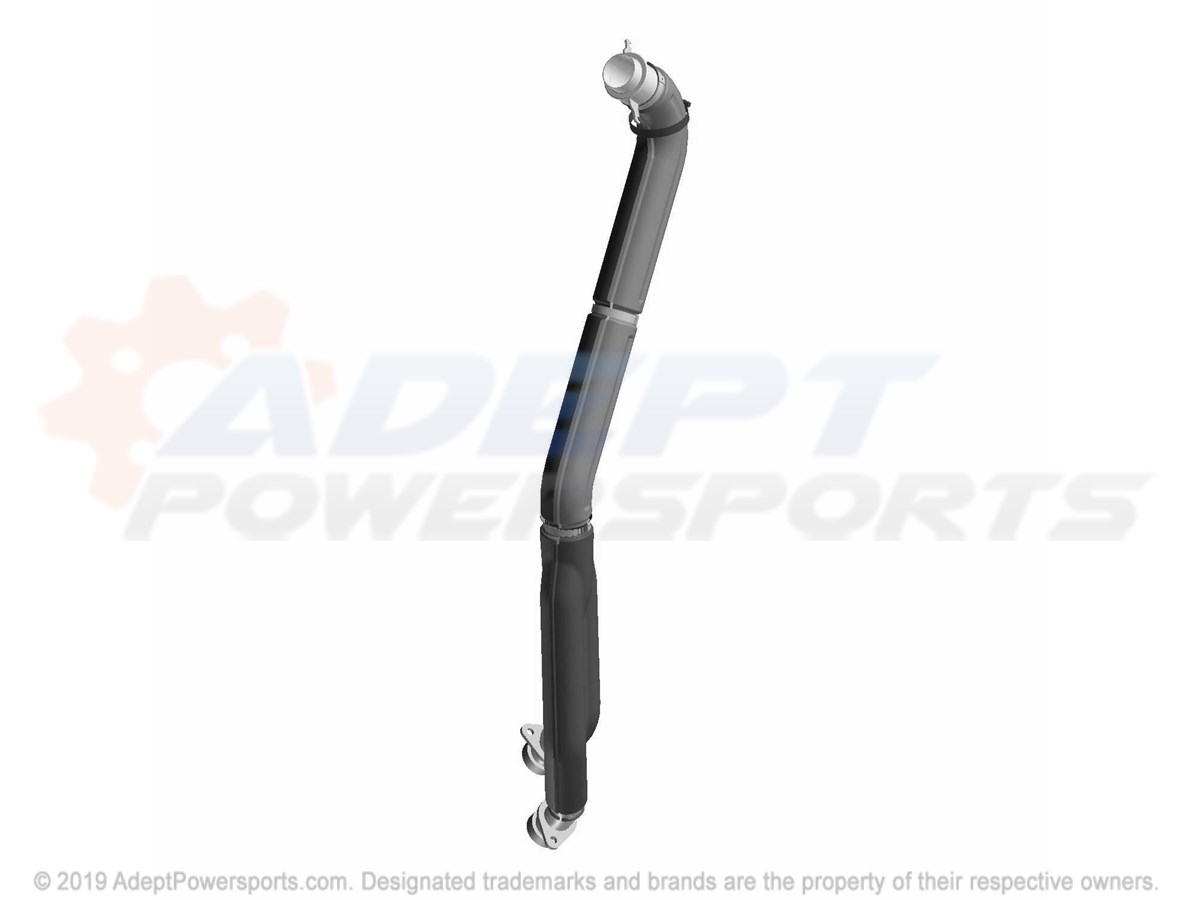

Polaris 1262229-489 Weld-Exhaust Silencer Blk

WELD-EXHAUST SILENCER BLK

Part #: 1262229-489 Required per assembly: 1
Currently Not Available
2
Polaris 1263029 Asm-Exhaust, Pipe, Twin

ASM-EXHAUST, PIPE, TWIN

Part #: 1263029 Required per assembly: 1 Note: INCL. PIPE, SHIELDS, CLAMP
Currently Not Available
2
Polaris 1263074 Asm-Exhaust, Pipe, Twin

ASM-EXHAUST, PIPE, TWIN

Part #: 1263074 Required per assembly: 1 Note: INCL. PIPE, SHIELDS, CLAMP
Currently Not Available
3
Polaris 3610179 Seal-Exhaust

SEAL-EXHAUST

Part #: 3610179 Required per assembly: 1
Currently Not Available
4
Polaris 5257995 Gasket, Exhaust, Sealing

GASKET, EXHAUST, SEALING

Part #: 5257995 Required per assembly: 2
Currently Not Available
5

SHIELD-EXHAUST, SILENCER

Part #: 5263747 Required per assembly: 1
Currently Not Available
6
Polaris 5413383 Grommet, Silencer, Mount

GROMMET, SILENCER, MOUNT

Part #: 5413383 Required per assembly: 2
Currently Not Available
7
Polaris 7041789 Spring-Exhaust

SPRING-EXHAUST

Part #: 7041789 Required per assembly: 4 Note: Spring, Exhaust
$6.99
$4.03
-
+
Add to cart
8
Polaris 7518490 Screw

SCREW

Part #: 7518490 Required per assembly: 4 Note: Screw, Flange
Currently Not Available
9
Polaris 7547076 Nut

NUT

Part #: 7547076 Required per assembly: 4
Currently Not Available
10
Polaris 7555935 Washer

WASHER

Part #: 7555935 Required per assembly: 4 Note: Washer, Flat
Currently Not Available
11
Polaris 7556111 Washer, Lock

WASHER, LOCK

Part #: 7556111 Required per assembly: 4
Currently Not Available
