LINES and MASTER CYLINDER - R17RCA57A1/B1/A4/B4 (700480) Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

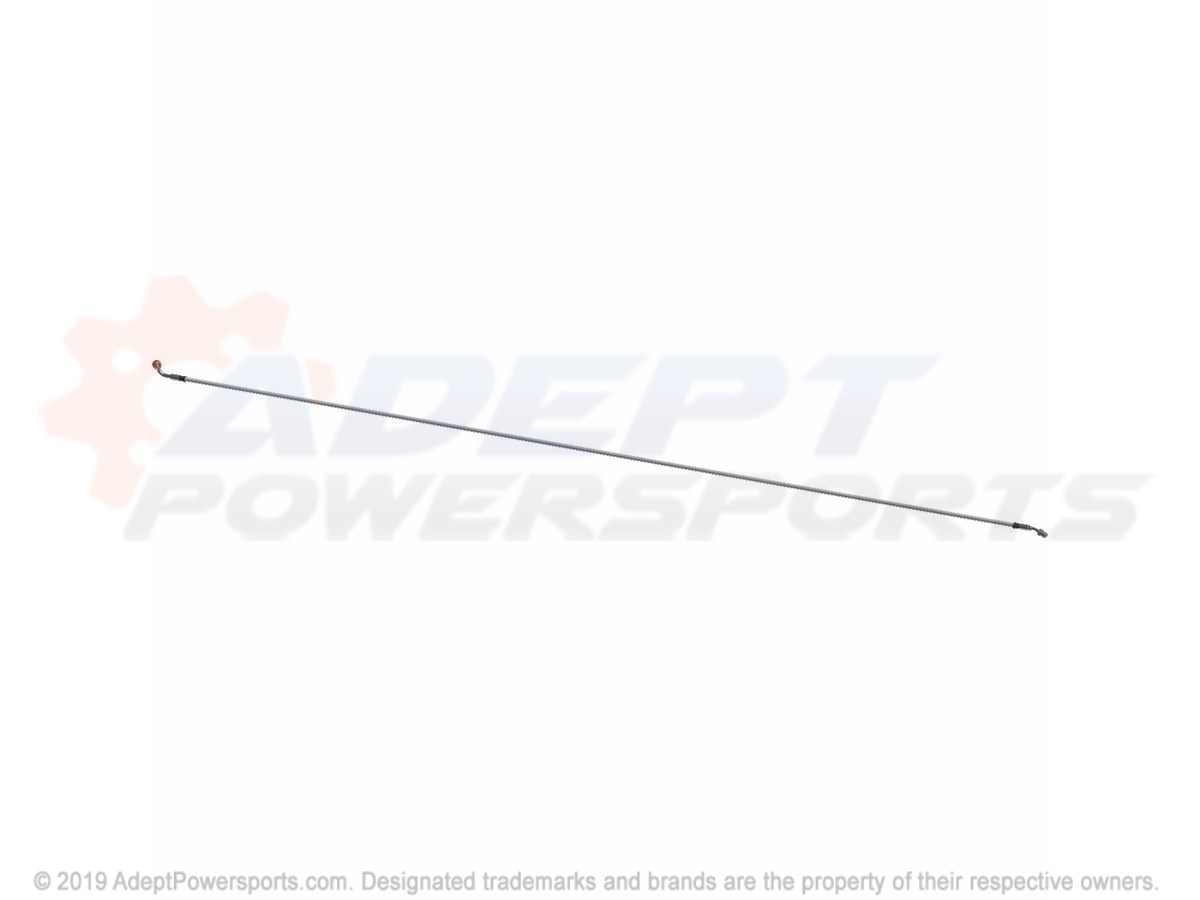

Polaris 1912105 Line, Brake, Rear, Left, 39, Inch

LINE, BRAKE, REAR, LEFT, 39, INCH

Part #: 1912105 Required per assembly: 1
Currently Not Available
2
Polaris 7052293 Tee, Fitting, Brake

TEE, FITTING, BRAKE

Part #: 7052293 Required per assembly: 1 Note: Fitting, Tee, Brake
Currently Not Available
3
Polaris 1912463 Assembly, Master, Cylinder

ASSEMBLY, MASTER, CYLINDER

Part #: 1912463 Required per assembly: 1 Note: INCL. 4,6,9
Currently Not Available
4
Polaris 2204993 Kit, Service., Cap, Asm.

KIT, SERVICE., CAP, ASM.

Part #: 2204993 Required per assembly: 1
Currently Not Available
5

LINE-BRK, FL, 19.5, 70B, 30B, 135

Part #: 1912589 Required per assembly: 1
Currently Not Available
6

KIT, NUT

Part #: 2203457 Required per assembly: 1 Note: INCL. 2 JAM NUTS
Currently Not Available
7
Polaris 4014225 Switch

SWITCH

Part #: 4014225 Required per assembly: 1
Currently Not Available
8

LINE-BRK, FR, 43.3, 90B, 30B, 85?

Part #: 1912590 Required per assembly: 1
Currently Not Available
9

KIT, CLEVIS

Part #: 2203456 Required per assembly: 1
Currently Not Available
10

SCREW

Part #: 7518552 Required per assembly: 2
Currently Not Available
11
Polaris 5413212 Seal

SEAL

Part #: 5413212 Required per assembly: 13
$9.99
$5.85
-
+
Add to cart
11
Polaris 5413212 Seal

SEAL

Part #: 5413212 Required per assembly: 13
$9.99
$5.85
-
+
Add to cart
12
Polaris 1912707 Line-Brk, Mct, 66.7, 70B, 20F, 210

LINE-BRK, MCT, 66.7, 70B, 20F, 210

Part #: 1912707 Required per assembly: 1
Currently Not Available
13

CLIP, SILENCER,

Part #: 7670102 Required per assembly: 5 Note: Clip
Currently Not Available
14
Polaris 7081808 Strap-Cable Tie W/Edge Clip

STRAP-CABLE TIE W/EDGE CLIP

Part #: 7081808 Required per assembly: 1
Currently Not Available
15
Polaris 1912104 Line, Brake, Rear, Right, 52, Inch

LINE, BRAKE, REAR, RIGHT, 52, INCH

Part #: 1912104 Required per assembly: 1
Currently Not Available
16

BOLT-BANJO, 10MMX1.00

Part #: 1910499 Required per assembly: 4 Note: Bolt, Banjo
Currently Not Available
17

BOLT, BANJO

Part #: 1910958 Required per assembly: 1
Currently Not Available
20
Polaris 7512084 Screw

SCREW

Part #: 7512084 Required per assembly: 3 Note: Screw
$2.99
$1.73
-
+
Add to cart
21

CLAMP, CABLE

Part #: 7080499 Required per assembly: 2
Currently Not Available
22

CLAMP, HOSE

Part #: 7080683 Required per assembly: 3
Currently Not Available
23
Polaris 7081496 Clip-Routing

CLIP-ROUTING

Part #: 7081496 Required per assembly: 2
Currently Not Available
24

RIVET

Part #: 7621323 Required per assembly: 2
$1.99
$1.35
-
+
Add to cart
25
Polaris 5258202 Shield, Master, Cylinder

SHIELD, MASTER, CYLINDER

Part #: 5258202 Required per assembly: 1
Currently Not Available
