Cab Frame - R17rda57a1/B1 (49Rgrframe11800crew) replacement parts for 2017 Polaris Ranger Crew 570FS (R07)

OEM Parts Polaris 2017 Polaris Ranger Crew 570FS (R07) Cab Frame - R17rda57a1/B1 (49Rgrframe11800crew)

CAB FRAME - R17RDA57A1/B1 (49RGRFRAME11800CREW) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

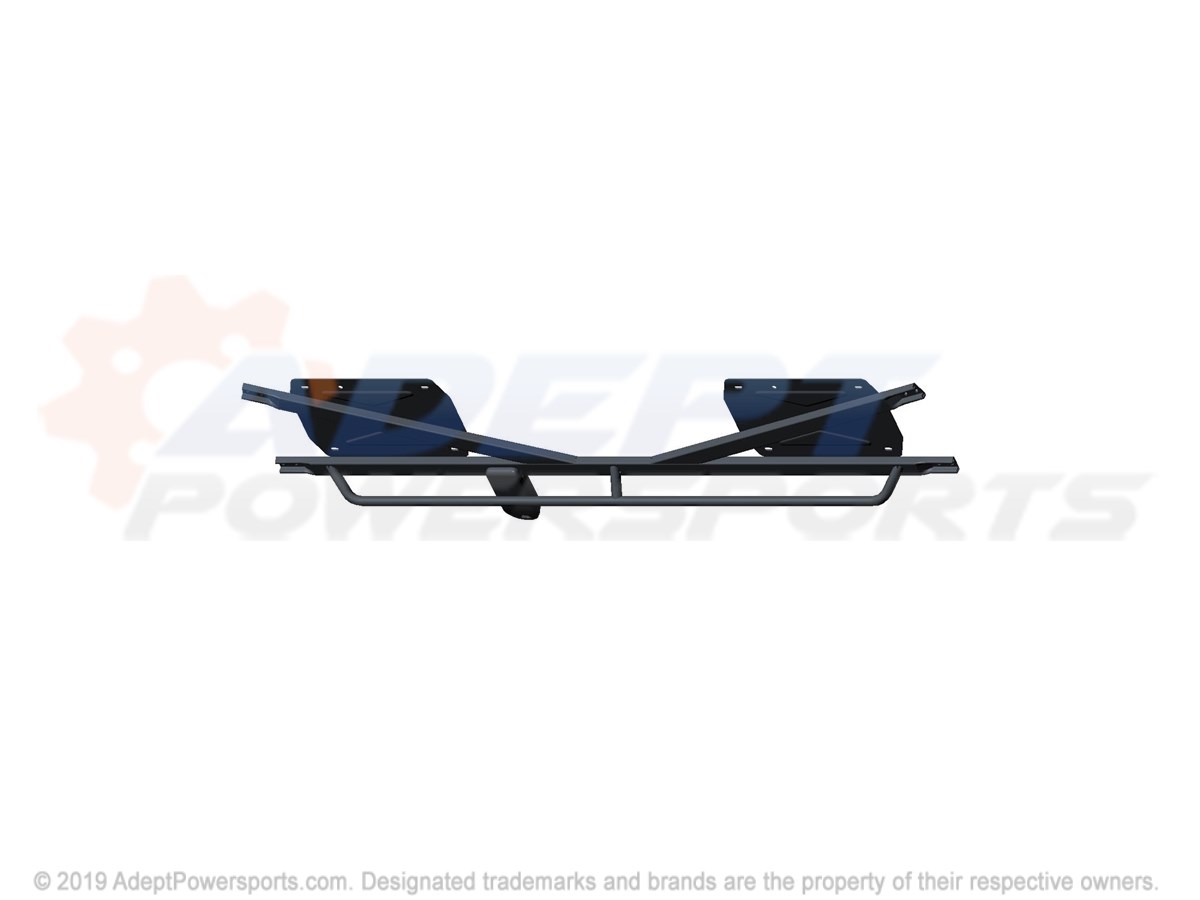

1	WELD-CAB, FRAME, CROSS, M.BLK Part #: 1019940-458 Required per assembly: 1 Currently Not Available
2	WELD-CAB, FRAME, CNTR, TOP, M.BLK Part #: 1017169-458 Required per assembly: 2 Currently Not Available
3	WELD-CAB, FRAME, REAR, LH, M.BLK Part #: 1022475-458 Required per assembly: 1 Currently Not Available
4	WELD-CAB, FRAME, REAR, RH, M.BLK Part #: 1022476-458 Required per assembly: 1 Currently Not Available
5	WELD-CAB, FRAME, CROSS, M.BLK Part #: 1019939-458 Required per assembly: 1 Currently Not Available
6	WELD-CAB, FRAME, FRT, LH, CREW, BLK Part #: 1022473-458 Required per assembly: 1 Currently Not Available
7	WELD-CAB, FRAME, FRT, RH, CREW, BLK Part #: 1022474-458 Required per assembly: 1 Currently Not Available
8	HEADREST-BLK Part #: 5439110-070 Required per assembly: 2 Currently Not Available
9	BOLT Part #: 7515339 Required per assembly: 4 Currently Not Available
9	BOLT Part #: 7515339 Required per assembly: 4 Currently Not Available
9	BOLT Part #: 7515339 Required per assembly: 4 Currently Not Available
10	RIVET Part #: 7621460 Required per assembly: 4 ~~$3.97~~ $3.16 - + Add to cart
10	RIVET Part #: 7621460 Required per assembly: 4 ~~$3.97~~ $3.16 - + Add to cart
11	SCR-SH-M10X1.5X30 8.8 ZPB D204 Part #: 7519844 Required per assembly: 4 Currently Not Available
11	SCR-SH-M10X1.5X30 8.8 ZPB D204 Part #: 7519844 Required per assembly: 4 Currently Not Available
12	SCREW Part #: 7518460 Required per assembly: 12 Note: Screw, Flange Currently Not Available
12	SCREW Part #: 7518460 Required per assembly: 12 Note: Screw, Flange Currently Not Available
12	SCREW Part #: 7518460 Required per assembly: 12 Note: Screw, Flange Currently Not Available
13	BOLT, FLANGE, [2X4] Part #: 7518702 Required per assembly: 16 Note: Bolt, Flange Currently Not Available
13	BOLT, FLANGE, [2X4] Part #: 7518702 Required per assembly: 16 Note: Bolt, Flange Currently Not Available
13	BOLT, FLANGE, [2X4] Part #: 7518702 Required per assembly: 16 Note: Bolt, Flange Currently Not Available
14	NUT, NYLOCK Part #: 7542343 Required per assembly: 4 Note: Nut, Flange Currently Not Available
14	NUT, NYLOCK Part #: 7542343 Required per assembly: 4 Note: Nut, Flange Currently Not Available
14	NUT, NYLOCK Part #: 7542343 Required per assembly: 4 Note: Nut, Flange Currently Not Available
15	NUT, NYLOK Part #: 7547385 Required per assembly: 4 Currently Not Available
15	NUT, NYLOK Part #: 7547385 Required per assembly: 4 Currently Not Available
16	NUT, FLANGE Part #: 7547317 Required per assembly: 16 Currently Not Available
16	NUT, FLANGE Part #: 7547317 Required per assembly: 16 Currently Not Available
17	WELD-CAB, FRAME, FRONT, TOP, M.BLK Part #: 1017167-458 Required per assembly: 1 Currently Not Available
18	SCREW Part #: 7519059 Required per assembly: 4 Currently Not Available
19	NUT, FLANGE Part #: 7547333 Required per assembly: 4 Note: M10 x 1.25 ~~$3.74~~ $2.23 - + Add to cart
