2017 Polaris General 1000 EPS (R19) R17RGE99A7/A9/AW/AM/KAK - Wire Harness - R17rgk99ak (701760)

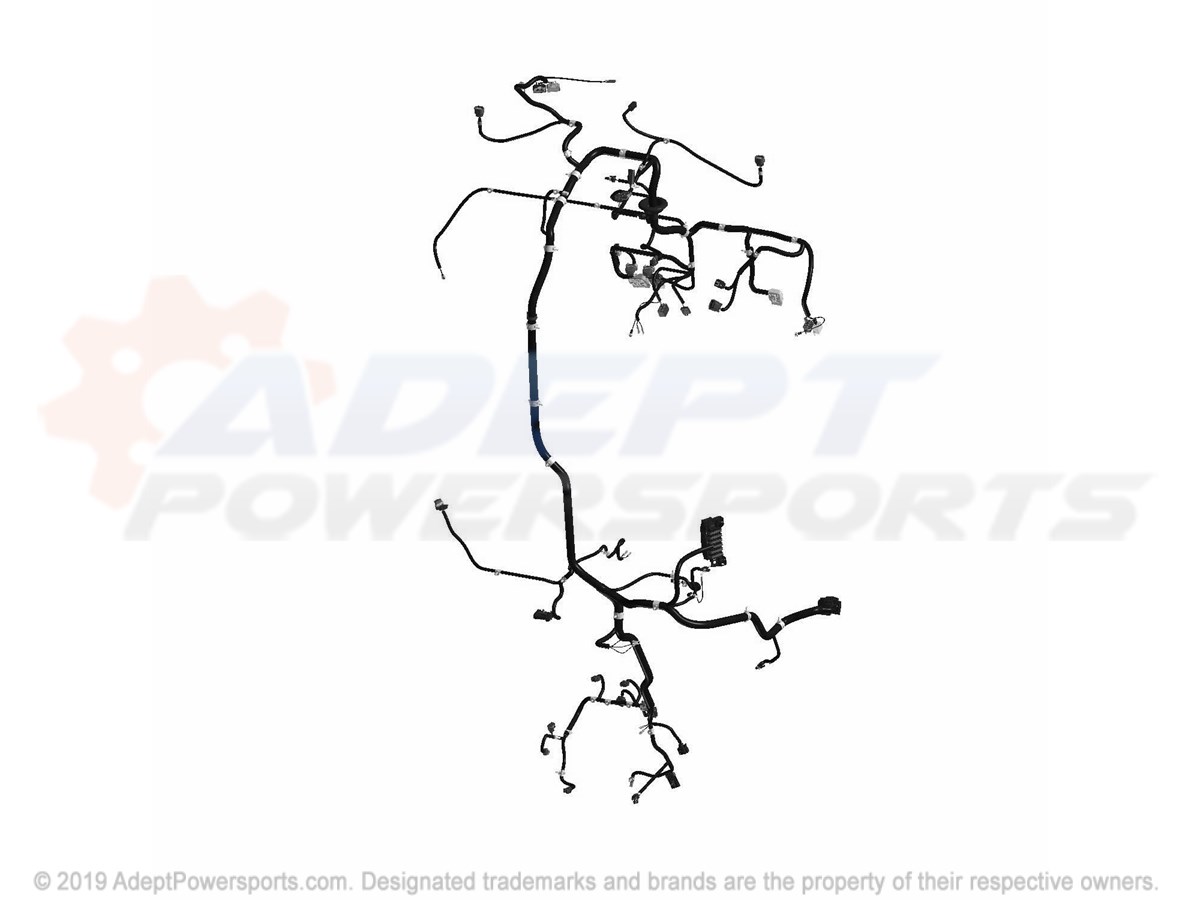

WIRE HARNESS - R17RGK99AK (701760) Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1
Polaris 2413527 Harness-Chassis, 7", Display

HARNESS-CHASSIS, 7", DISPLAY

Part #: 2413527 Required per assembly: 1 Note: INCL 2-14
Currently Not Available
2
Polaris 2203632 Kit, Fusible, Link, 2.0, Mm

KIT, FUSIBLE, LINK, 2.0, MM

Part #: 2203632 Required per assembly: 1
Currently Not Available
3
Polaris 4010859 Fuse, Mini, Blade, 15, Amp.

FUSE, MINI, BLADE, 15, AMP.

Part #: 4010859 Required per assembly: 2
Currently Not Available
4

LABEL, FUSE, BOX

Part #: 7184022 Required per assembly: 1
Currently Not Available
5
Polaris 7081496 Clip-Routing

CLIP-ROUTING

Part #: 7081496
Currently Not Available
6
Polaris 7082020 Clip-Routing, Din, Box

CLIP-ROUTING, DIN, BOX

Part #: 7082020 Required per assembly: 3
Currently Not Available
7
Polaris 4012170 Cover, Diagnostic, W/Clip

COVER, DIAGNOSTIC, W/CLIP

Part #: 4012170 Required per assembly: 1
Currently Not Available
8

GROMMET-USB, 3, MM, 22, MM, DIA

Part #: 5415308 Required per assembly: 1
Currently Not Available
9
Polaris 4015771 Breaker-Circuit, 25, Amp

BREAKER-CIRCUIT, 25, AMP

Part #: 4015771 Required per assembly: 1
Currently Not Available
10
Polaris 4016819 Relay-Spst, 12V, 20A, Epxy, Hfa

RELAY-SPST, 12V, 20A, EPXY, HFA

Part #: 4016819 Required per assembly: 5
Currently Not Available
11
Polaris 5813954 Grommet-65Mm, Blk

GROMMET-65MM, BLK

Part #: 5813954 Required per assembly: 1
Currently Not Available
12
Polaris 2434016 Fuse, 10Amp

FUSE, 10AMP

Part #: 2434016 Required per assembly: 6 Note: Fuse, 10 AMP, Ignition
Sold in multiples of 10 only
Currently Not Available
13
Polaris 2413217 Led-Panel, Mnt, 12V, Blue

LED-PANEL, MNT, 12V, BLUE

Part #: 2413217 Required per assembly: 3
Currently Not Available
14
Polaris 4011653 Fuse, 25, Amp

FUSE, 25, AMP

Part #: 4011653 Required per assembly: 2
Currently Not Available
15
Polaris 4016868 Regulator-3Ph, 50A, Series, Hispd

REGULATOR-3PH, 50A, SERIES, HISPD

Part #: 4016868 Required per assembly: 1
Currently Not Available
16
Polaris 7519342 Scr-Tfhfl-M6x1.0X25 Zod

SCR-TFHFL-M6X1.0X25 ZOD

Part #: 7519342 Required per assembly: 2
$4.04
$2.91
-
+
Add to cart
17
Polaris 2876049 Kit, Ignition, Coil

KIT, IGNITION, COIL

Part #: 2876049 Required per assembly: 1 Note: Coil
Currently Not Available
18
Polaris 4014422 Jumper, Coil, Ground

JUMPER, COIL, GROUND

Part #: 4014422 Required per assembly: 1
Currently Not Available
19
Polaris 5260553 Brkt-Coil Mount

BRKT-COIL MOUNT

Part #: 5260553 Required per assembly: 1
Currently Not Available
20
Polaris 5436577 Spacer, Coil

SPACER, COIL

Part #: 5436577 Required per assembly: 1 Note: Spacer, Coil Mount
Currently Not Available
21
Polaris 7518529 Screw

SCREW

Part #: 7518529 Required per assembly: 4
$2.99
$1.73
-
+
Add to cart
22
Polaris 2413521 Harness-Chassis, Adapter, Accy

HARNESS-CHASSIS, ADAPTER, ACCY

Part #: 2413521 Required per assembly: 1
Currently Not Available
23
Polaris 7518780 Screw

SCREW

Part #: 7518780 Required per assembly: 1
Currently Not Available
24
Polaris 7547274 Nut

NUT

Part #: 7547274 Required per assembly: 1 Note: Nut, Flange
Currently Not Available
25
Polaris 4016007 Block-Terminal, 6, Pos

BLOCK-TERMINAL, 6, POS

Part #: 4016007 Required per assembly: 1
Currently Not Available
26
Polaris 7518196 Screw

SCREW

Part #: 7518196 Required per assembly: 2
$1.99
$1.15
-
+
Add to cart
26
Polaris 7518196 Screw

SCREW

Part #: 7518196 Required per assembly: 2
$1.99
$1.15
-
+
Add to cart
27
Polaris 7547341 Nuts-10-32 Keps

NUTS-10-32 KEPS

Part #: 7547341 Required per assembly: 3
Currently Not Available
28
Polaris 4014125 Ecm

ECM

Part #: 4014125 Required per assembly: 1
Currently Not Available
29
Polaris 7519091 Screw

SCREW

Part #: 7519091 Required per assembly: 4
Currently Not Available
30
Polaris 2413521 Harness-Chassis, Adapter, Accy

HARNESS-CHASSIS, ADAPTER, ACCY

Part #: 2413521 Required per assembly: 1
Currently Not Available
31
Polaris 7519145 Screw

SCREW

Part #: 7519145 Required per assembly: 3
Currently Not Available
32
Polaris 4012829 Relay, Solid, State, 9, Amp

RELAY, SOLID, STATE, 9, AMP

Part #: 4012829 Required per assembly: 1 Note: Relay, Solid State
Currently Not Available
33
Polaris 7519257 Screw

SCREW

Part #: 7519257 Required per assembly: 1
Currently Not Available
34
Polaris 7547339 Nut, Flange

NUT, FLANGE

Part #: 7547339 Required per assembly: 3
Currently Not Available
35
Polaris 5414440 Grommet, Electrical

GROMMET, ELECTRICAL

Part #: 5414440 Required per assembly: 1
Currently Not Available
36
Polaris 4019855 Camera-Front, Wide, Angle

CAMERA-FRONT, WIDE, ANGLE

Part #: 4019855 Required per assembly: 1
Currently Not Available
37
Polaris 5454204-070 Mount-Front, Camera, General, Blk

MOUNT-FRONT, CAMERA, GENERAL, BLK

Part #: 5454204-070 Required per assembly: 1
Currently Not Available
38
Polaris 4014811 Gps-Antenna, Receiver, Can

GPS-ANTENNA, RECEIVER, CAN

Part #: 4014811 Required per assembly: 1
Currently Not Available
39
Polaris 2413743 Harness-Temp Sensor

HARNESS-TEMP SENSOR

Part #: 2413743 Required per assembly: 1
Currently Not Available
40
Polaris 7558302 Washer, Wrought

WASHER, WROUGHT

Part #: 7558302 Required per assembly: 2
Currently Not Available
41
Polaris 7519290 Scr-Txph-#14X3/4 Hi/Lo Clr

SCR-TXPH-#14X3/4 HI/LO CLR

Part #: 7519290 Required per assembly: 2
Currently Not Available
42

CAM-MIRROR, CAMERA, APX

Part #: 4081066 Required per assembly: 1
Currently Not Available
43

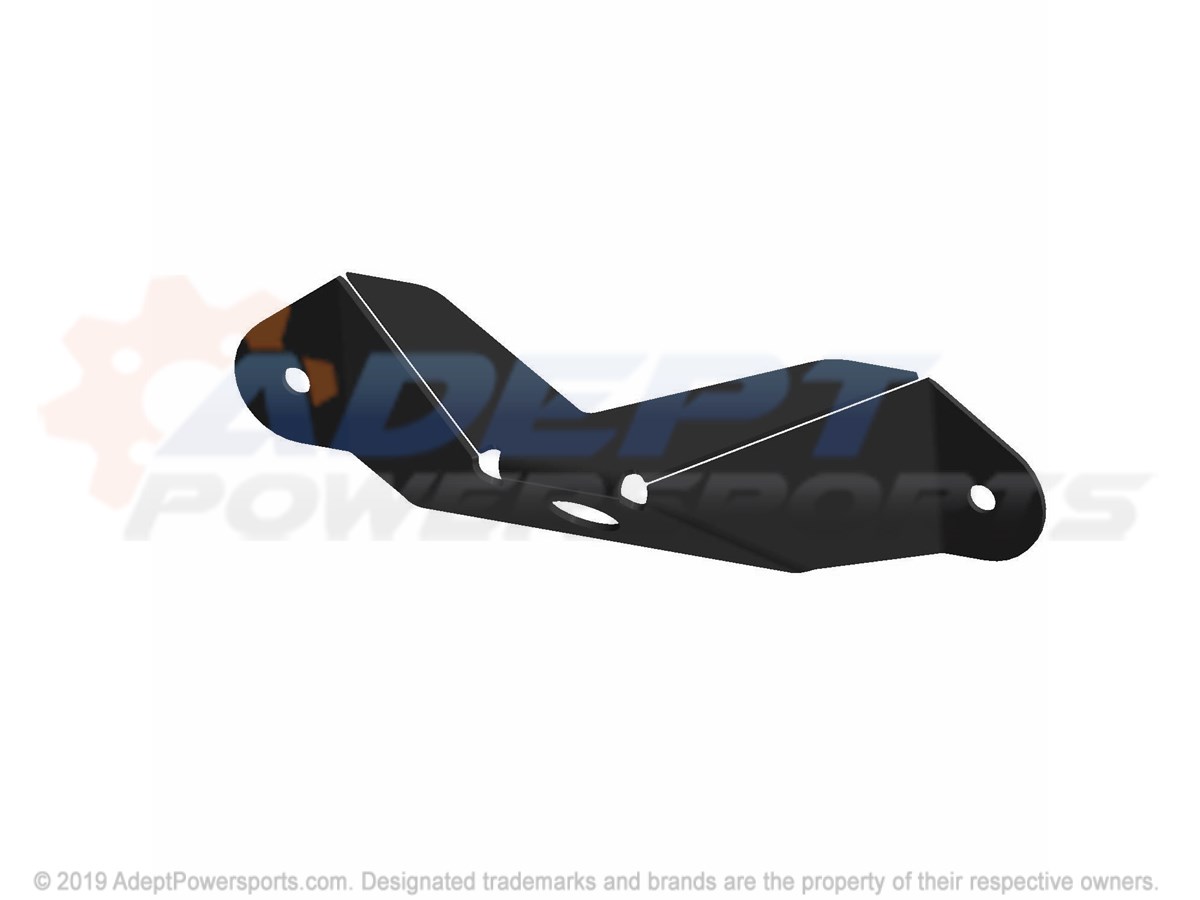

Polaris 5263045-458 Brkt-Camera, Mount, Blk

BRKT-CAMERA, MOUNT, BLK

Part #: 5263045-458 Required per assembly: 1
Currently Not Available
