OEM Parts Polaris 2017 Polaris RZR XP Turbo (R06) Front Gearcase Mounting - Z17vde92ak/Am/Lk/Ab (49Rgrgearcasemtg14rzr1000)

2017 Polaris RZR XP Turbo (R06) Z17VDE92AK/AM/LK/AB - Front Gearcase Mounting - Z17vde92ak/Am/Lk/Ab (49Rgrgearcasemtg14rzr1000)

FRONT GEARCASE MOUNTING - Z17VDE92AK/AM/LK/AB (49RGRGEARCASEMTG14RZR1000) Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
2
Polaris 7518460 Screw

SCREW

Part #: 7518460 Required per assembly: 4 Note: Screw, Flange
Currently Not Available
3
Polaris 7080307 Clamp

CLAMP

Part #: 7080307 Required per assembly: 1 Note: Sold in multiples of 10 only
Currently Not Available
4

LINE-BOOST, 3/16, ID, 85, CM

Part #: 8450153-85 Required per assembly: 1 Note: AK
Currently Not Available
4

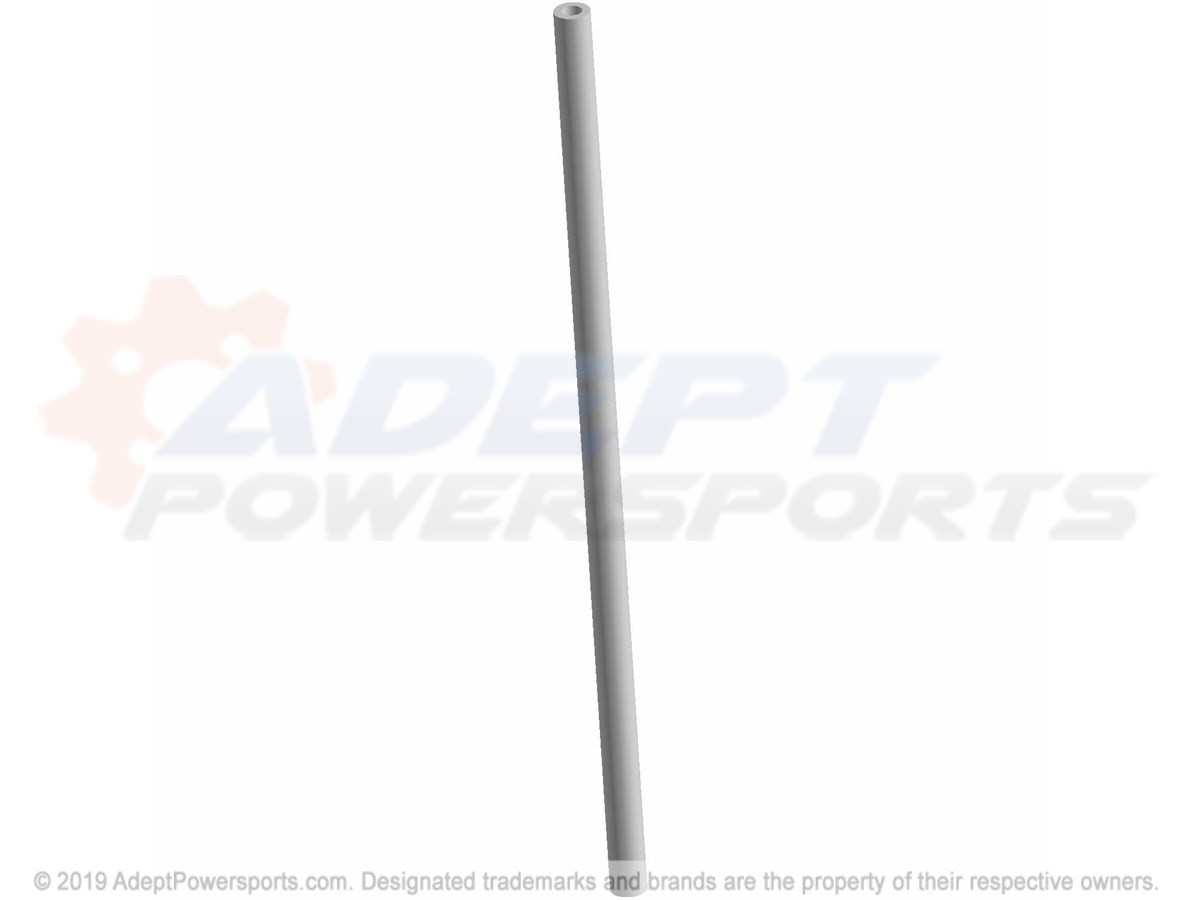

Polaris 8450003-85 Fuel Line-85 Centimeters

FUEL LINE-85 CENTIMETERS

Part #: 8450003-85 Required per assembly: 1 Note: AB
Currently Not Available
5

CLIP, SILENCER,

Part #: 7670102 Required per assembly: 2 Note: Clip
Currently Not Available
