Roof - Z17vde92ng (701487) replacement parts for 2017 Polaris RZR XP Turbo MD (R01)

OEM Parts Polaris 2017 Polaris RZR XP Turbo MD (R01) Roof - Z17vde92ng (701487)

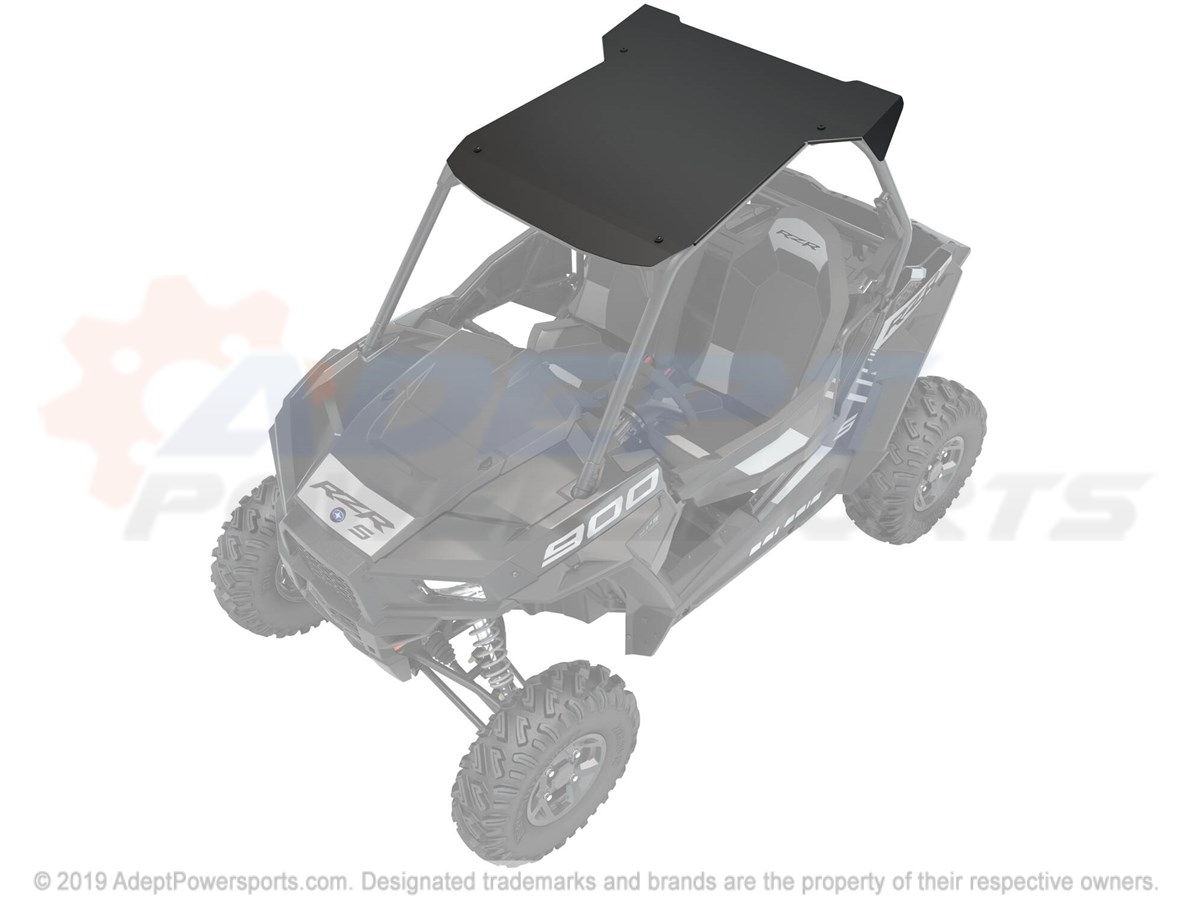

ROOF - Z17VDE92NG (701487) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	K-ROOF, AL, RZN, BLK Part #: 2881582-458 Required per assembly: 1 Currently Not Available
2	K-HRDWR, AL, ROOF, RZN Part #: 2205204 Note: INCL. 2-6 Currently Not Available
3	U-TYPE, SPEED, NUT Part #: 7081305 Required per assembly: 4 Note: Clip, U Speed Nut [Built 12/07/09 and Before] Currently Not Available
4	SCREW Part #: 7519650 Required per assembly: 2 Currently Not Available
5	SCREW Part #: 7519722 Required per assembly: 2 Currently Not Available
6	WASHER Part #: 7556329 Required per assembly: 4 Currently Not Available
