FRONT SHOCK INTERNALS - Z17VDE99NM (701726) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

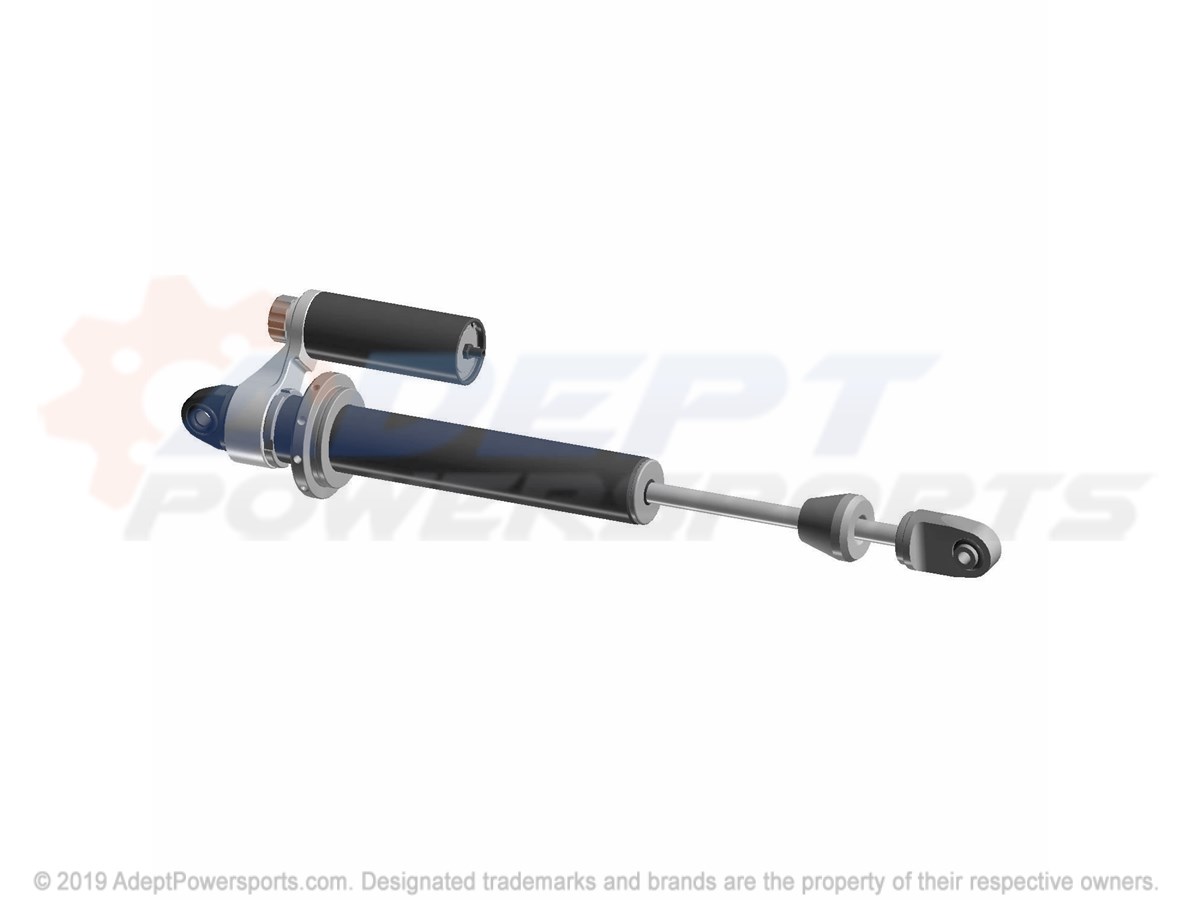

1	SHOCK-FRONT, RZRXP, PIGGYBK, LH Part #: 7044553 Required per assembly: 1 Note: INCL ALL Currently Not Available

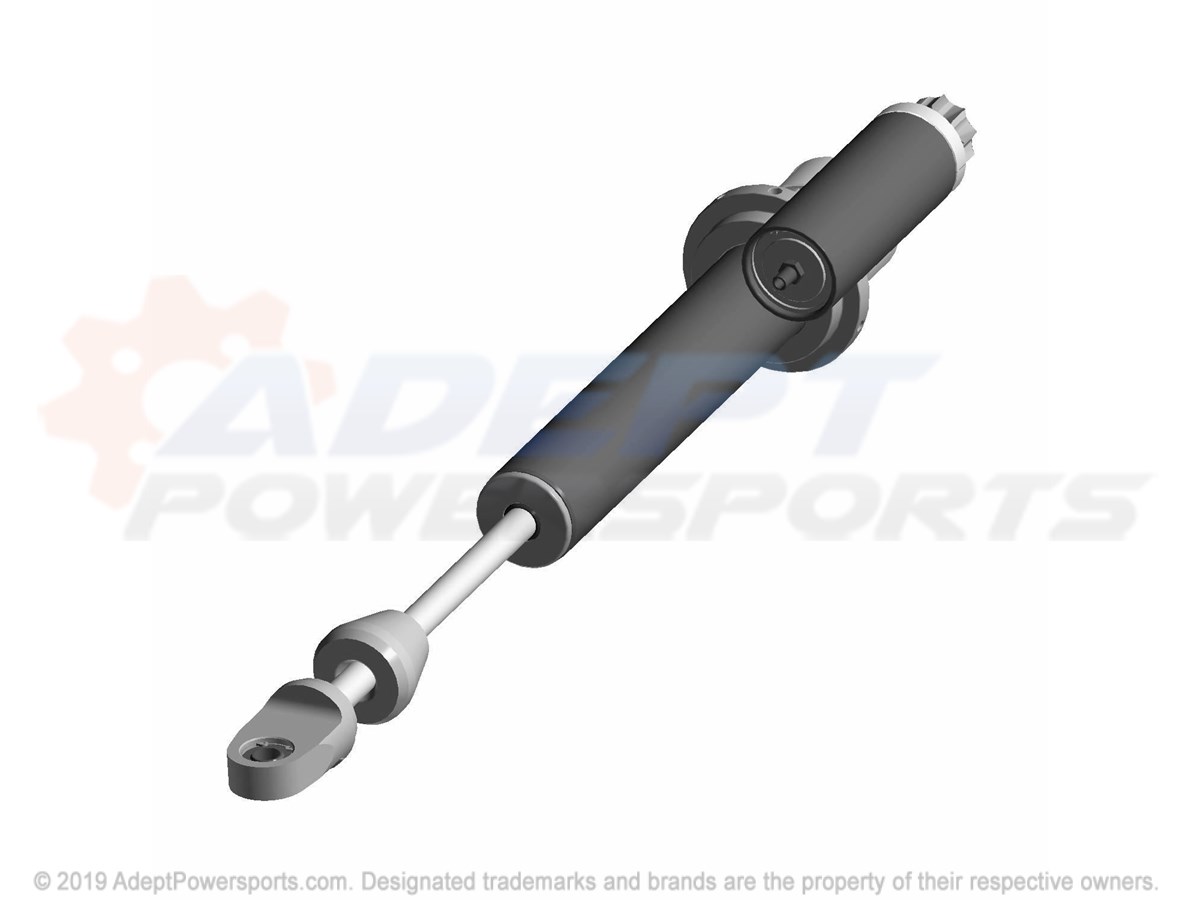

1	SHOCK-FRONT, RZRXP, PIGGYBK, RH Part #: 7044554 Required per assembly: 1 Note: INCL ALL Currently Not Available
2	SHAFT, 0.625, CHROME, NEEDLE, 12.84L Part #: 1800662 Required per assembly: 1 Currently Not Available
3	DROOP SPACER W NEG SPRING Part #: 1800858 Required per assembly: 1 Currently Not Available
4	RING, SNAP Part #: 1800159 Required per assembly: 1 Currently Not Available
5	BALL, DETENT Part #: 1800127 Required per assembly: 1 Note: Sold in multiples of 10 only Currently Not Available
6	SPRING, DETENT Part #: 1800128 Required per assembly: 1 Note: Sold in multiples of 10 only Currently Not Available
7	RING, SNAP Part #: 1800041 Required per assembly: 4 ~~$5.99~~ $3.51 - + Add to cart
7	RING, SNAP Part #: 1800041 Required per assembly: 4 ~~$5.99~~ $3.51 - + Add to cart
8	O-RING BODY Part #: 1800030 Required per assembly: 2 Note: Sold in multiples of 10 only Currently Not Available
8	O-RING BODY Part #: 1800030 Required per assembly: 2 Note: Sold in multiples of 10 only Currently Not Available
9	WIPER D/TYPE Part #: 1800322 Required per assembly: 1 Currently Not Available
10	NUT, CRIMP Part #: 1800164 Required per assembly: 1 Currently Not Available
11	BUMP, STOP, MCU, 2.0DIA, X, 1.75L, (ISC, 140174-N) Part #: 1800859 Required per assembly: 1 Currently Not Available
12	BODY, MONOTUBE, CO, 2, X, 14.285L, HARD, CLEAR Part #: 1800860 Required per assembly: 1 Currently Not Available
13	NEEDLE, 1PC, PRESS, IN Part #: 1800861 Required per assembly: 1 Currently Not Available
14	KNOB Part #: 1800418 Required per assembly: 1 Currently Not Available
15	IFP PISTON ASM 1.750 W BLEED Part #: 1800739 Required per assembly: 1 Currently Not Available
16	ASM. CLICKER STUD Part #: 1800758 Required per assembly: 1 Currently Not Available
17	ASM. CLICKER PISTON Part #: 1800757 Required per assembly: 1 Currently Not Available
18	SCREW Part #: 1800357 Required per assembly: 1 Currently Not Available
19	SCREW, SET, #8-32 Part #: 1800700 Required per assembly: 3 Currently Not Available
20	RETAINING RING Part #: 1800862 Required per assembly: 1 Currently Not Available
21	RING, RETAINING, WIRE Part #: 1800795 Required per assembly: 1 Currently Not Available
22	O-RING, 2-226, 1600018 Part #: 1800863 Required per assembly: 2 Currently Not Available
23	O-RING Part #: 1800184 Required per assembly: 1 Currently Not Available
24	RETAINER-SPRING, CAST Part #: 5634606 Required per assembly: 1 Currently Not Available
25	O-RING, 2-108, 1600026 Part #: 1800864 Required per assembly: 1 Currently Not Available
26	SPRING NUT-2" CLEAR 1620014-AC Part #: 1800865 Required per assembly: 1 Currently Not Available
27	SCREW-#8 LOW HD 1600025 Part #: 1800843 Required per assembly: 1 Currently Not Available
28	LOOP, SHAFT Part #: 1800600 Required per assembly: 1 Currently Not Available
29	BRIDGE-2", ADJ, CLEAR, 1620011-AC Part #: 1800866 Required per assembly: 1 Currently Not Available
30	CAP, WIPER Part #: 1800794 Required per assembly: 1 Currently Not Available
31	SPRING-CENTURY 11980 1420343 Part #: 1800867 Required per assembly: 1 Currently Not Available
32	JAMB NUT-2" ACME 1620015-AC Part #: 1800868 Required per assembly: 1 Currently Not Available
33	ASSEMBLY, PISTON Part #: 1800516 Required per assembly: 1 Currently Not Available
34	ASM-SEAL HEAD 2" 1620009 Part #: 1800869 Required per assembly: 1 Currently Not Available
35	ASM. END CAP 2IN (CLEAR) Part #: 1800755 Required per assembly: 1 Currently Not Available
36	BEARING, SPHERICAL Part #: 1800616 Required per assembly: 2 Currently Not Available
37	BODY, RESERVOIR Part #: 1800392 Required per assembly: 1 Currently Not Available
