PARK LOCK - Z17YAV17A2/A5/N2/N5 (49RGRBRAKEPARK09RZR170) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	CABLE-BRAKE, PARKING Part #: 0455223 Required per assembly: 1 Currently Not Available
2	SWITCH-BRAKE Part #: 0455078 Required per assembly: 1 Currently Not Available

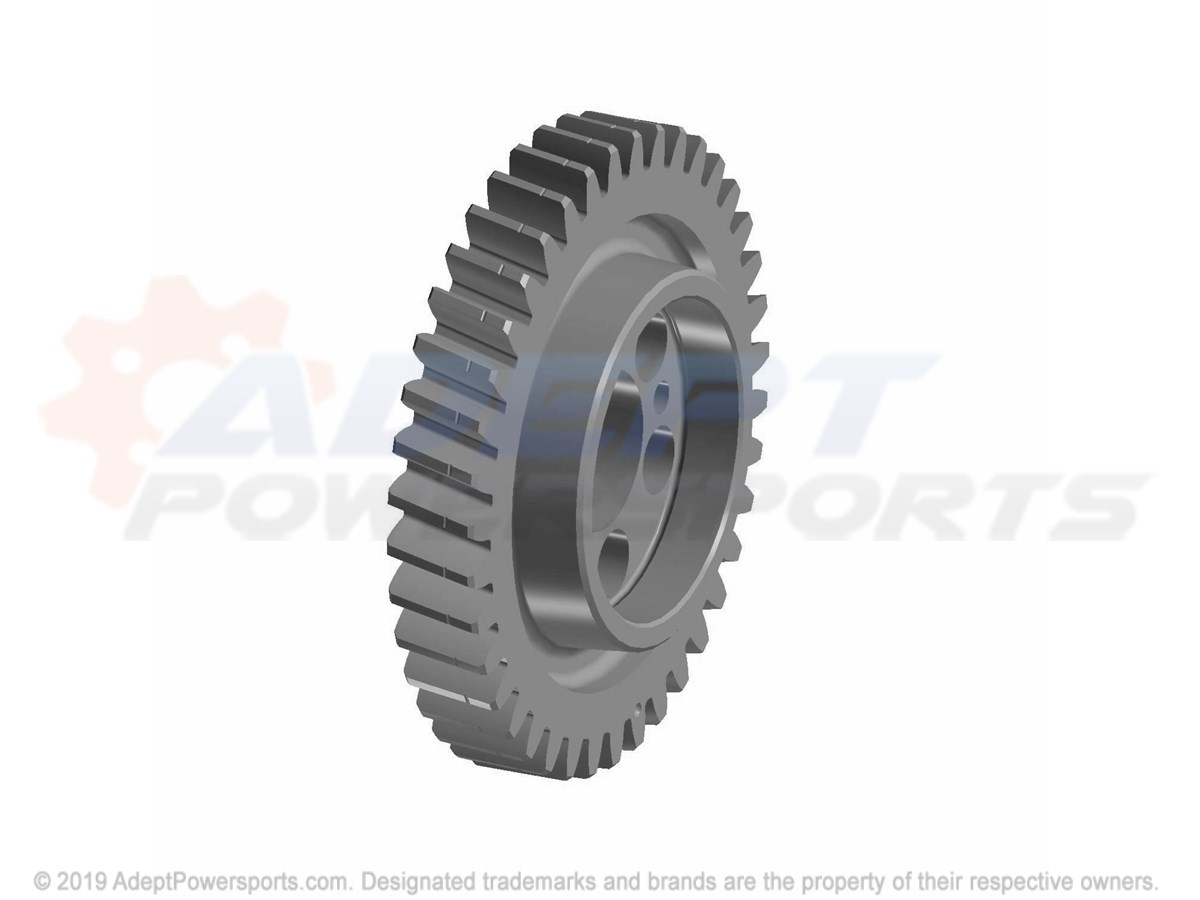

3	GEAR, CRANKSHAFT, PRIMARY, HCL Part #: 6230471 Required per assembly: 1 Currently Not Available
4	NUT Part #: 0454350 Required per assembly: 2 Currently Not Available
4	NUT Part #: 0454350 Required per assembly: 2 Currently Not Available
5	BOLT Part #: 0452031 Required per assembly: 2 Currently Not Available
5	BOLT Part #: 0452031 Required per assembly: 2 Currently Not Available
6	ASSEMBLY, PARKING, BRAKE, LEVER Part #: 0454347 Required per assembly: 1 Note: INCL. 7 Currently Not Available

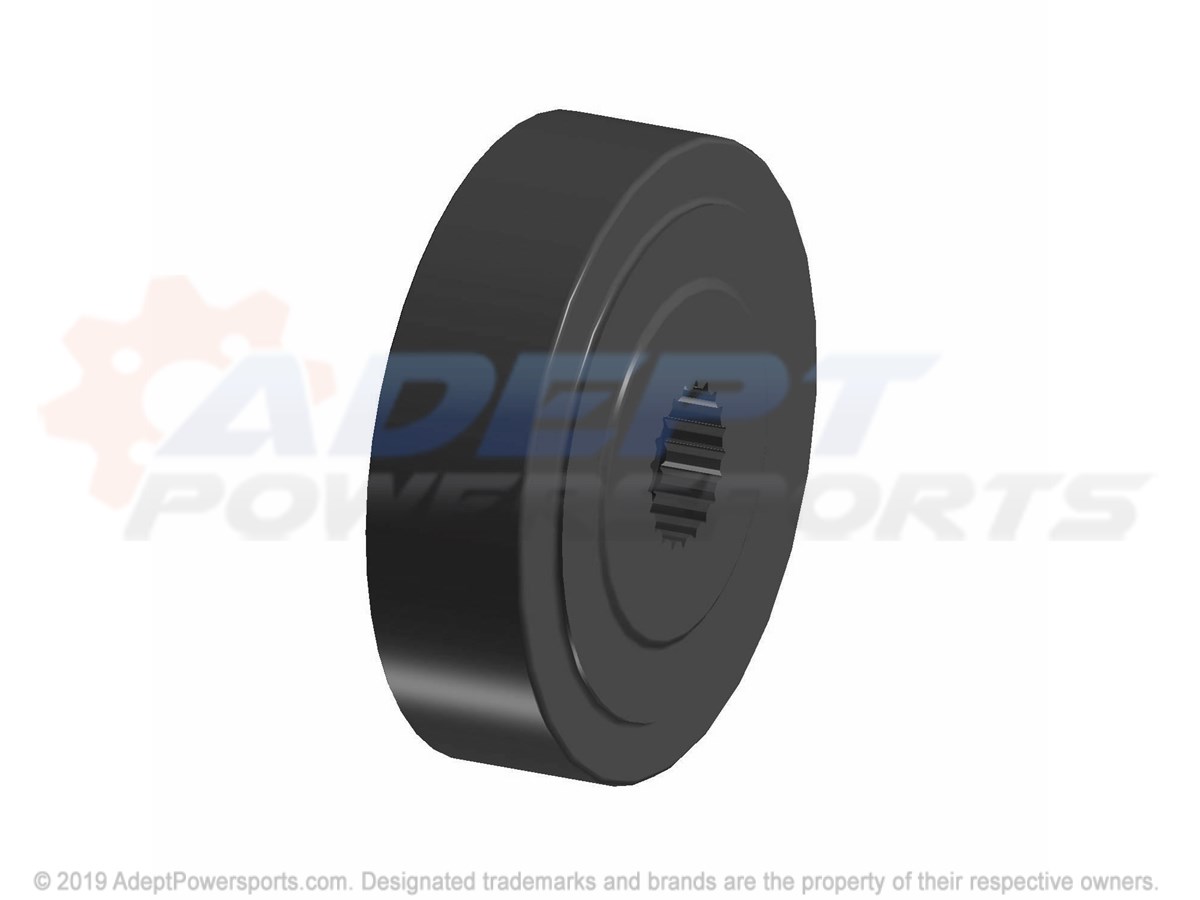

7	RETAINER, COMPENSATOR Part #: 5137955 Required per assembly: 1 Currently Not Available
