Crankcase replacement parts for 2017 Suzuki RMX450Z

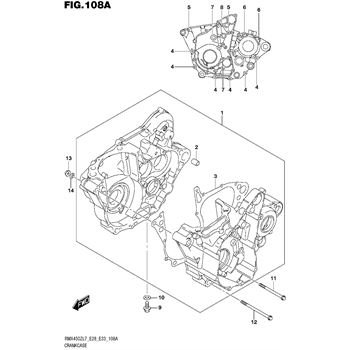

OEM Parts Suzuki 2017 Suzuki RMX450Z Crankcase

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	CRANKCASE SET Part #: 11302-02810 Required per assembly: 1 Not Available
2	PIN Part #: 04211-13189 Required per assembly: 2 $2.64 $2.38 - + Add to cart
3	GASKET, CRANKCASE Part #: 11481-02J00 Required per assembly: 1 $29.60 $26.64 - + Add to cart
4	BOLT (L:55) Part #: 01547-0655A Required per assembly: 6 $3.05 $2.75 - + Add to cart
5	BOLT Part #: 01547-0665A Required per assembly: 2 $2.93 $2.64 - + Add to cart
6	BOLT Part #: 01547-0675A Required per assembly: 2 Note: MODEL K7 $3.55 $3.20 - + Add to cart
7	BOLT, CRANKCASE Part #: 01547-0680A Required per assembly: 2 Note: BOLT (6X80); MODEL K7/K8/K9 $3.47 $3.12 - + Add to cart
8	BOLT Part #: 01547-0690A Required per assembly: 1 $2.85 $2.57 - + Add to cart
9	PLUG, OIL, DRAIN Part #: 09103-08393 Required per assembly: 1 Note: OIL DRAIN $3.11 $2.80 - + Add to cart
10	GASKET Part #: 09168-08016 Required per assembly: 1 Note: WASHER; $1.99 $1.79 - + Add to cart
11	BOLT, RR, SPNSN, ARM, UPPER Part #: 09103-10388 Required per assembly: 1 $7.35 $6.62 - + Add to cart
12	BOLT (10X125) Part #: 09103-10399 Required per assembly: 1 Note: MODEL K6 $7.41 $6.67 - + Add to cart
13	NUT Part #: 09159-10115 Required per assembly: 2 $4.46 $4.01 - + Add to cart
14	WASHER Part #: 09160-10039 Required per assembly: 2 Note: WASHER, CYLINDER HEAD NUT; $2.72 $2.45 - + Add to cart
