OEM Parts Yamaha 2017 Yamaha DR2A17 Carrier

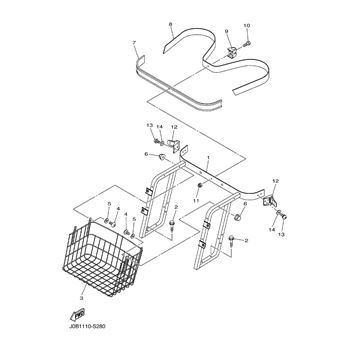

2017 Yamaha DR2A17 - Carrier

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

SUPPORT, SEAT, BACK

Part #: J1B-K8423-00-00 Required per assembly: 1
Not Available
2

BOLT

Part #: 90109-08002-00 Required per assembly: 4
$11.49
$6.92
-
+
Add to cart
3

LUGGAGE, RACK, ASSEMBLY, REAR

Part #: JW1-K8340-00-00 Required per assembly: 1
$68.72
-
+
Add to cart
4

BOLT, BUTTON, HEAD

Part #: 92017-06040-00 Required per assembly: 4
$4.50
$3.39
-
+
Add to cart
5

WASHER

Part #: J0B-K7389-00-00 Required per assembly: 4
$1.20
$0.68
-
+
Add to cart
6

NUT, CROWN

Part #: 90176-06008-00 Required per assembly: 4
$2.85
$2.25
-
+
Add to cart
7

PAD, BAG, SUPPORT

Part #: J0B-K8356-00-00 Required per assembly: 1
$19.11
$17.37
-
+
Add to cart
8

BAND

Part #: JN6-K8355-20-00 Required per assembly: 1
$12.99
$10.57
-
+
Add to cart
9

HOLDER, RAKE, SAND

Part #: JW1-K834G-00-00 Required per assembly: 1
$4.25
$3.08
-
+
Add to cart
10

BOLT

Part #: 9708R-06020-00 Required per assembly: 1 Note: YMUS
$0.99
$0.45
-
+
Add to cart
11

NUT, SELF-LOCKING(JR2)

Part #: 90185-06836-00 Required per assembly: 1
$3.00
$2.36
-
+
Add to cart
12

LOCK ASSEMBLY

Part #: JN6-K8380-00-00 Required per assembly: 2
$5.49
$3.84
-
+
Add to cart
13

SCREW, WITH, WASHER

Part #: 90159-06845-00 Required per assembly: 4
$2.04
$1.51
-
+
Add to cart
14

WASHER

Part #: 9299R-06200-00 Required per assembly: 4
$0.75
$0.45
-
+
Add to cart
